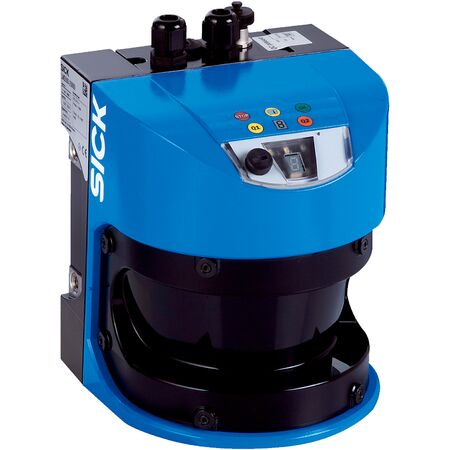

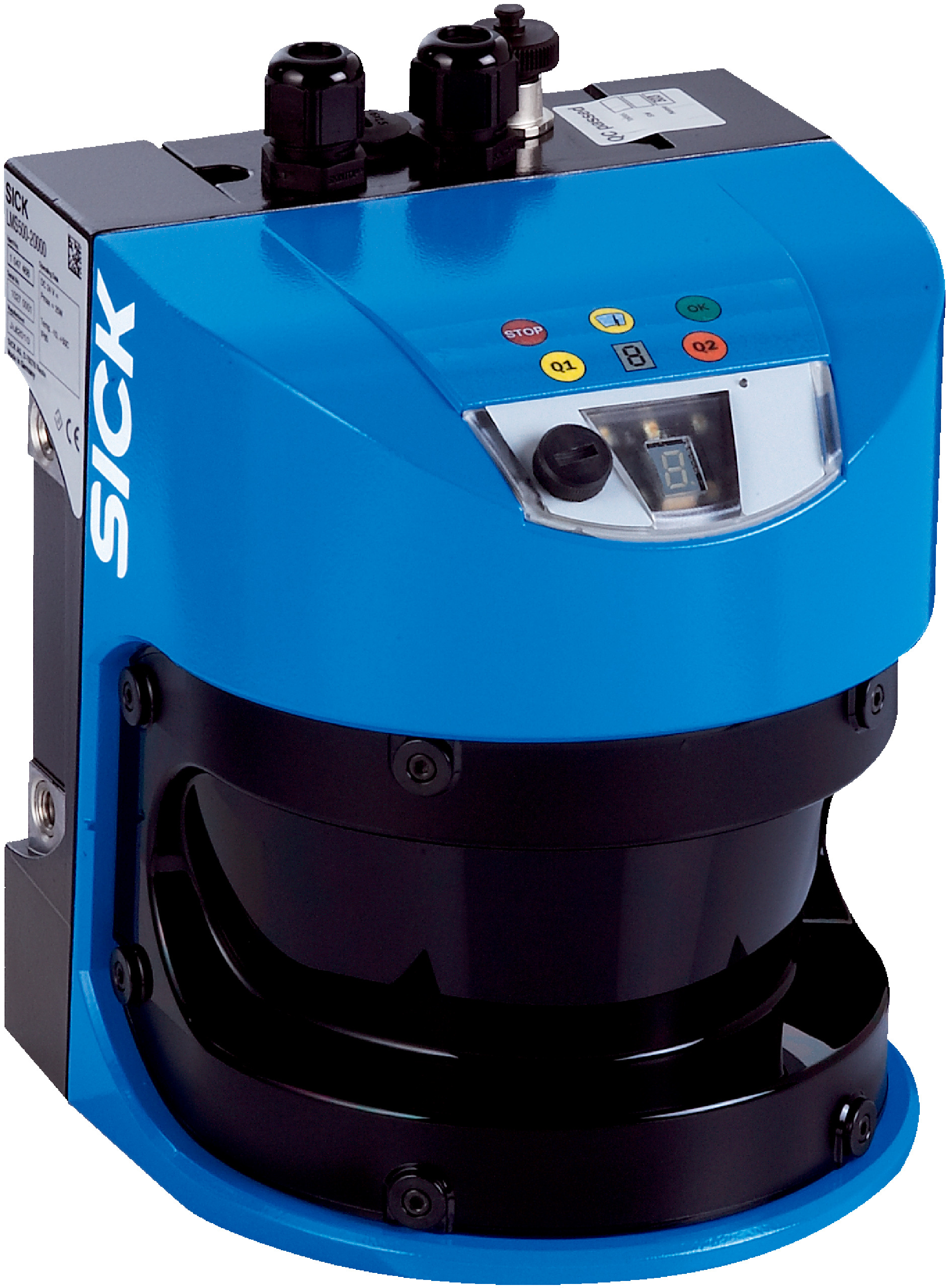

LMS500-20000 PRO Laser Measurement Scanner | High Resolution | IP65 Rated | by SICK
The LMS500-20000 PRO Laser Measurement Scanner offers high-resolution infrared scanning with a wide aperture angle of 190° and multiple scanning frequencies from 25 Hz to 100 Hz. Ideal for indoor industrial applications, it ensures precise object detection and measurement, making it perfect for automation and safety monitoring in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LMS500-20000 PRO Laser Measurement Scanner | High Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1047468
Alternatively Known As: Laser Measurement Scanner, Indoor Laser Scanner, High Resolution Laser Scanner, SICK PRO Laser Scanner
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 190° horizontal
- Horizontal angular resolution: 0.042°, interlaced
- Scanning frequency options: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Working range: 0.2 m to 80 m
- Measurement accuracy: ± 12 mm
- Spot size divergence: 4.7 mrad
- Power consumption: 22 W
- Supply voltage: 24 V DC, ± 20%
- Housing material: AlSi12 with polycarbonate scratch-resistant window
- Enclosure rating: IP65
- Protection class: III (IEC 61140:2016-11)
- Interfaces: Ethernet (TCP/IP, UDP/IP), Serial (RS-232, RS-422), CAN, USB
- Digital inputs: 4 (digital, encoder HTL, synchronization)
- Digital outputs: 6 (digital)
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 3.7 kg
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- High resolution infrared laser source (905 nm, ± 10 nm)
- Laser class 1 compliant with EN/IEC 60825-1 standards
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz to 100 Hz
- Working range from 0.2 m up to 80 m
- Measurement accuracy of ± 12 mm
- Supports up to 5 evaluated echoes
- Robust housing with IP65 rating and scratch-resistant polycarbonate window
- Multiple interface options including Ethernet, Serial (RS-232, RS-422), CAN, and USB
- Integrated filters for echo, fog, particle, average, and glare
- Ambient operating temperature from 0 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with electrical and safety standards and optimal device performance.
Applications
- Indoor applications requiring high resolution laser scanning
- Industrial automation and safety monitoring
- Object detection and measurement in manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of 22 W
- Durable housing reduces need for frequent replacements
- Supports precise measurement reducing waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LMS500-20000 PRO laser scanner is available for immediate purchase, ideal for indoor industrial and automation applications.
