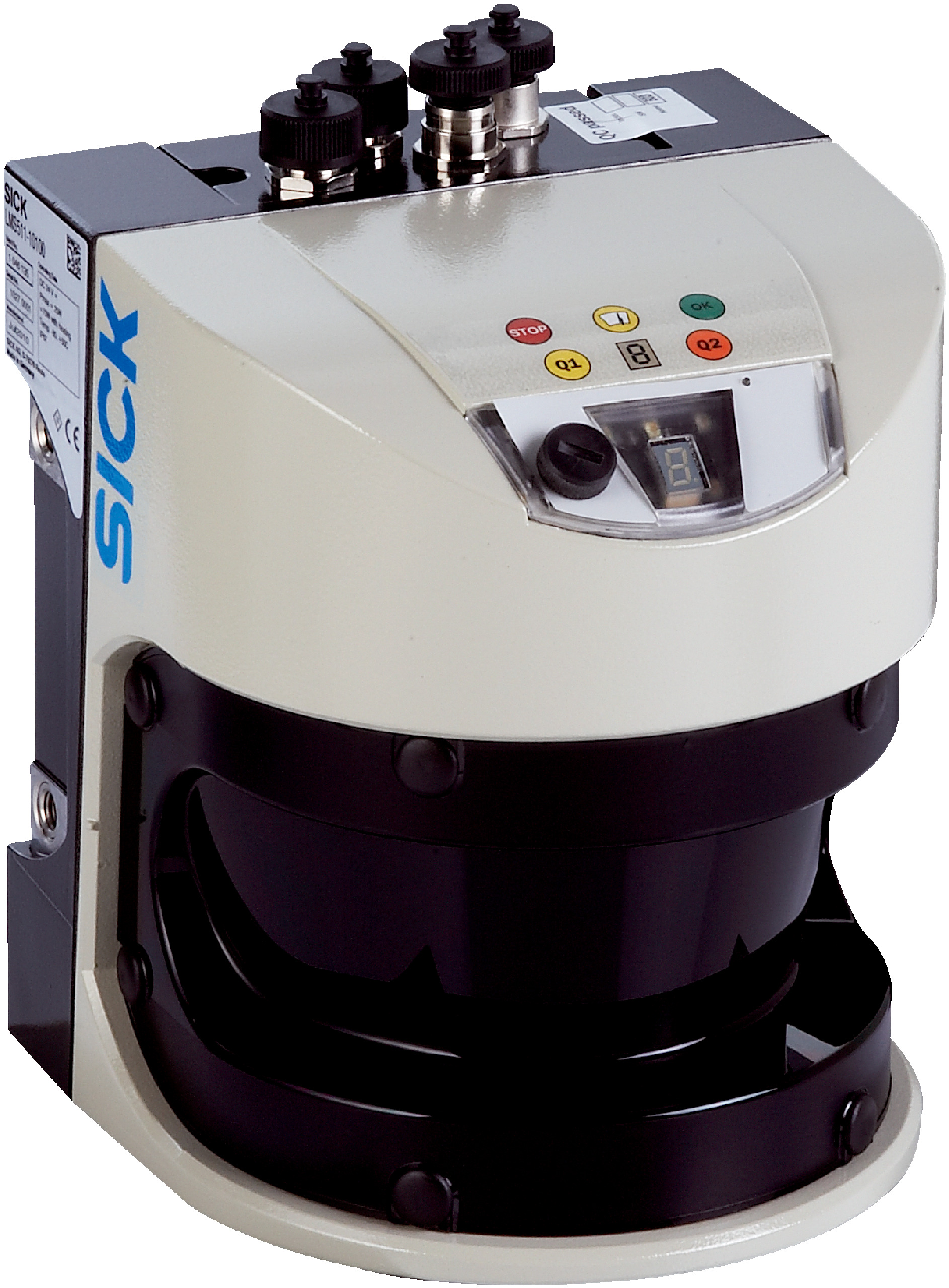

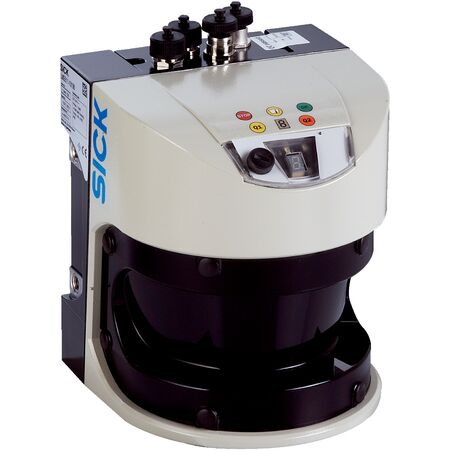

LMS511-10100 PRO Laser Scanner | Infrared Light Source | 190° Aperture Angle | Multiple Scanning Frequencies | by SICK
The LMS511-10100 PRO Laser Scanner is designed for precise distance measurement and scanning, featuring an infrared light source and a wide horizontal aperture angle of 190°. With multiple scanning frequencies and robust IP65/IP67 housing, it's perfect for both indoor and outdoor industrial automation and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LMS511-10100 PRO Laser Scanner | Infrared Light Source | 190° Aperture Angle | Multiple Scanning Frequencies | by SICK
Brand: SICK
SKU: 1046135
Alternatively Known As: LMS511 PRO Laser Scanner, SICK Laser Measurement Sensor, Industrial Laser Scanner
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Horizontal aperture angle: 190°
- Angular resolution: 0.042° interlaced
- Scanning frequency options: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Working range: 0.2 m to 80 m
- Measurement accuracy: ± 24 mm
- Spot size divergence: 11.9 mrad
- Connection type: 4 x M12 round connectors
- Supply voltage: 24 V DC, ± 20%
- Power consumption: 22 W plus 55 W heating (typical)
- Housing material: AlSi12 with polycarbonate scratch-resistant window
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Response time: ≥ 10 ms
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Digital inputs: 4 (digital, encoder HTL, synchronization)
- Digital outputs: 6 (digital)
- Optical indicators: 5 LEDs plus 7-segment display
- Electromagnetic compatibility: Industrial environment compliant (IEC 61000-6-3, IEC 61000-6-2)
- Vibration resistance: 10 Hz to 150 Hz, amplitude 0.35 mm to 5 g
- Shock resistance: 15 g, 11 ms, 6 shocks per axis
- Impact resistance: IK05, IK06, IK07
- Ambient operating temperature: –30 °C to +50 °C
- Storage temperature: –40 °C to +70 °C
- Ambient light immunity: 70,000 lx
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- Infrared light source (905 nm, ± 10 nm) with laser class 1 safety
- Wide horizontal aperture angle of 190°
- Multiple scanning frequencies: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Self-heating with integrated heating for reliable operation
- High measurement accuracy with ± 24 mm precision
- Supports up to 5 evaluated echoes per scan
- Robust housing with IP65 and IP67 protection ratings
- Multiple communication interfaces including Ethernet, Serial (RS-232, RS-422), CAN, and USB
- Advanced filtering options: echo, fog, particle, average, and glare filters
- Ambient operating temperature range from –30 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical wiring standards to ensure compliance and optimal sensor performance.
Applications
- Outdoor and indoor distance measurement and scanning
- Industrial automation and safety monitoring
- Object detection and field evaluation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient infrared laser technology reduces power consumption
- Durable housing minimizes waste through extended product life
- Supports precise measurement reducing material waste in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS511-10100 PRO Laser Measurement Sensor is available for immediate purchase, ideal for industrial automation, safety monitoring, and precise measurement applications.
