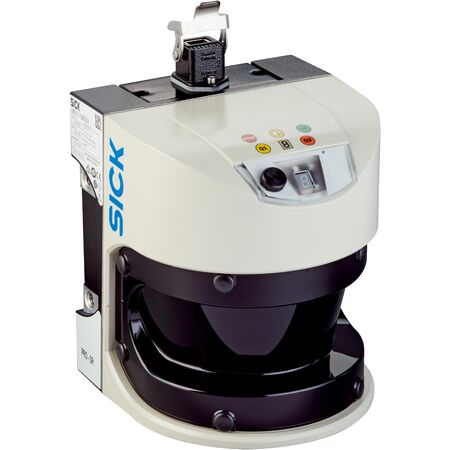

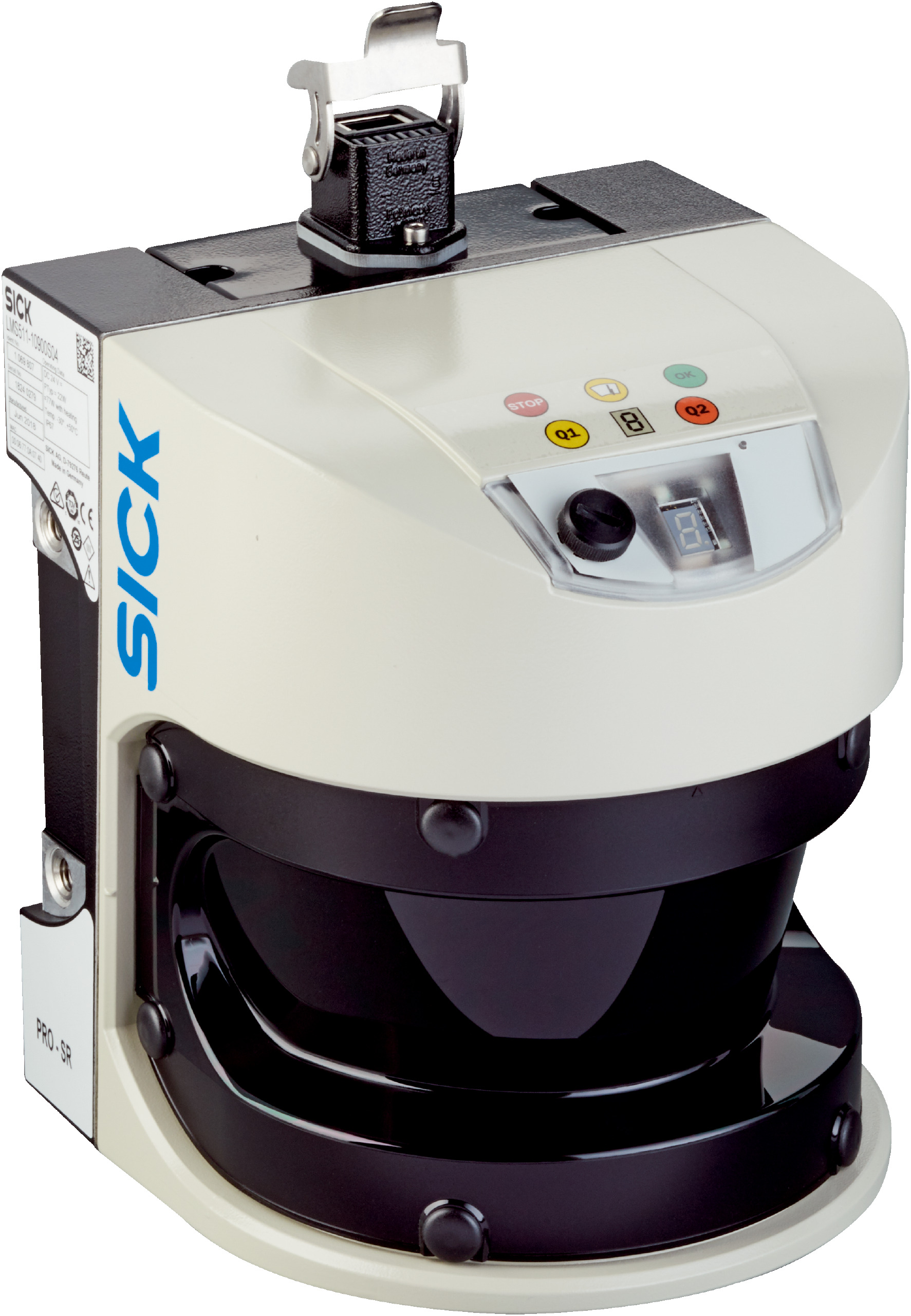

LMS511-10900S04 PRO Laser Scanner | Infrared Light Source | 190° Aperture Angle | Multiple Scanning Frequencies | by SICK
The LMS511-10900S04 PRO Laser Scanner features an infrared light source and a wide 190° horizontal aperture angle, making it ideal for both indoor and outdoor environment scanning. With multiple scanning frequencies and robust IP65/IP67 protection, this scanner is built for industrial automation and safety monitoring, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 190° horizontal
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Angular resolution: 0.042° to 1° interlaced options
- Working range: 0.2 m to 80 m
- Measurement accuracy: ± 24 mm
- Spot size divergence: 11.9 mrad
- Power consumption: 22 W plus 55 W heating (typical)
- Supply voltage: 24 V DC, ± 20%
- Housing material: AlSi12 with polycarbonate scratch-resistant window
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Response time: ≥ 10 ms
- Object remission: 2% to >1000% (reflectors)
- Interfaces: Ethernet (TCP/IP, UDP/IP), USB (Mini-USB)
- Vibration resistance: 10 Hz to 150 Hz, amplitude 0.35 mm to 5 g
- Shock resistance: 15 g, 11 ms, 6 shocks per axis
- Impact resistance: IK05, IK06, IK07
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- Infrared light source (905 nm, ± 10 nm) with laser class 1 safety
- Wide horizontal aperture angle of 190°
- Multiple scanning frequencies: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Standard resolution with angular resolution options from 0.042° to 1°
- Self-heating with integrated heating for reliable operation
- Robust housing with IP65 and IP67 protection ratings
- Multiple echo evaluation with up to 5 echoes
- Advanced filters including echo, fog, particle, average, and glare filters
- Ethernet and USB interfaces for data transmission and service
- High vibration and shock resistance with IK05 to IK07 impact rating
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial laser safety and electrical standards to ensure compliance and optimal performance.
Applications
- Outdoor and indoor environment scanning
- Industrial automation and safety monitoring
- Object detection and measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
- Supports industrial automation to optimize resource use
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK LMS511-10900S04 PRO laser scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and environmental scanning applications.
