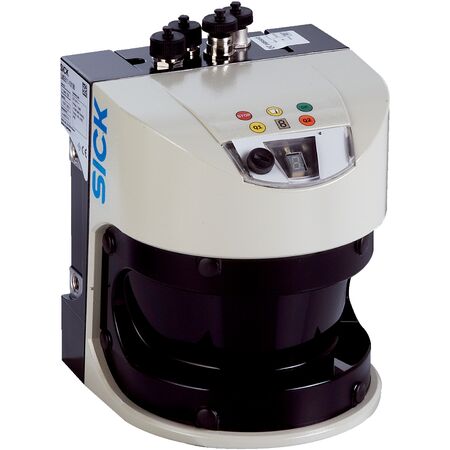

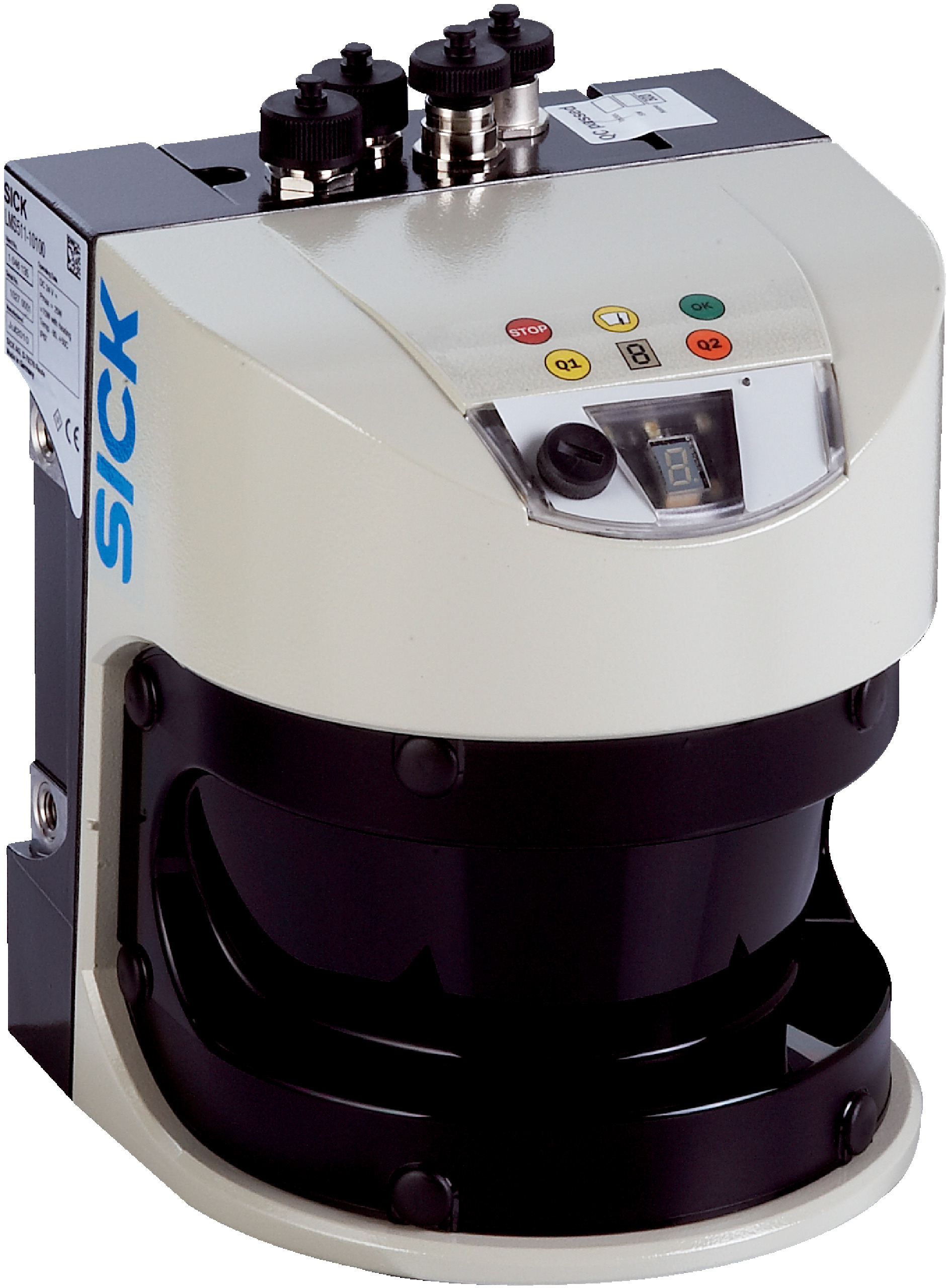

LMS511-11100 Lite Laser Scanner | Infrared Light Source | IP65 & IP67 Rated | 190° Aperture Angle | by SICK
The LMS511-11100 Lite Laser Scanner features an infrared light source and a wide 190° aperture angle, making it perfect for both indoor and outdoor environment scanning. With multiple scanning frequencies and robust IP65/IP67 protection, this scanner is designed for industrial automation and safety monitoring, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LMS511-11100 Lite Laser Scanner | Infrared Light Source | IP65 & IP67 Rated | 190° Aperture Angle | by SICK
Brand: SICK
SKU: 1054155
Alternatively Known As: LMS511 Lite Laser Scanner, SICK LMS511-11100, Industrial Laser Scanner, 2D Laser Scanner
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 190°
- Angular resolution: 0.25°, 0.5°, 1°
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz
- Working range: 0.2 m to 80 m
- Measurement accuracy: ± 24 mm
- Spot size divergence: 11.9 mrad
- Connection type: 4 x M12 round connectors
- Supply voltage: 24 V DC, ± 20%
- Power consumption: 22 W, + 55 W heating (typical)
- Housing material: AlSi12
- Window material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Response time: ≥ 13 ms
- Number of evaluated echoes: 2
- Digital inputs: 2 (digital)
- Digital outputs: 3 (digital)
- Interfaces: Ethernet (TCP/IP, UDP/IP), Serial (RS-232, RS-422), USB
- Ambient operating temperature: –30 °C to +50 °C
- Storage temperature: –40 °C to +70 °C
- Vibration resistance: 10 Hz to 150 Hz, amplitude 0.35 mm to 5 g
- Shock resistance: 15 g, 11 ms, 6 shocks per axis
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 compliant with EN/IEC 60825-1 standards
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz, 35 Hz, 50 Hz, 75 Hz
- Standard resolution with angular resolution options of 0.25°, 0.5°, and 1°
- Self-heating with integrated heating for reliable operation
- Robust housing with IP65 and IP67 protection ratings
- Multiple filter options including echo, fog, particle, average, and glare filters
- Supports Ethernet (TCP/IP, UDP/IP), Serial (RS-232, RS-422), and USB interfaces
- Digital inputs and outputs for integration
- High vibration and shock resistance
- Wide ambient operating temperature range from –30 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance and optimal performance.
Applications
- Outdoor and indoor environment scanning
- Industrial automation and safety monitoring
- Object detection and measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient infrared laser technology reduces power consumption.
- Durable housing and long MTBF (>100 years) reduce waste and replacement frequency.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS511-11100 Lite Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and object detection applications.
