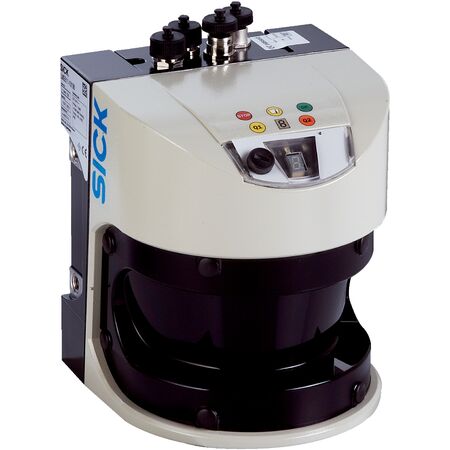

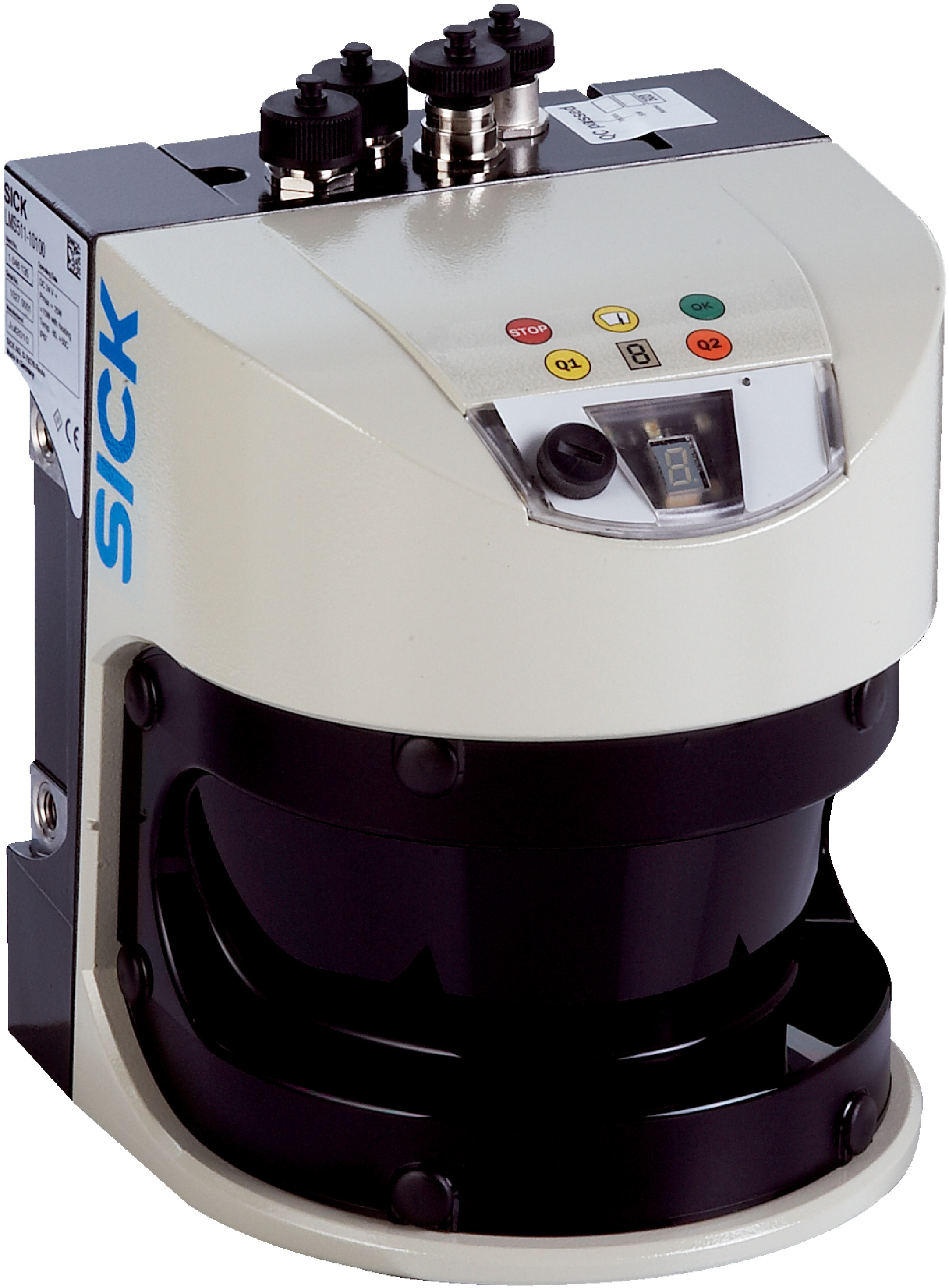

LMS511-20100 PRO Laser Scanner | High Resolution Infrared | 190° Aperture Angle | IP65/IP67 Rated | by SICK
The LMS511-20100 PRO Laser Scanner delivers high-resolution infrared scanning with a 190° aperture angle, making it ideal for both indoor and outdoor applications in industrial automation and safety monitoring. With a working range of up to 80 m and multiple scanning frequencies, this robust scanner ensures precise object detection and measurement, while its IP65/IP67 rating guarantees durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LMS511-20100 PRO Laser Scanner | High Resolution Infrared | 190° Aperture Angle | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1047782
Alternatively Known As: LMS511 PRO Laser Scanner, SICK PRO Laser Scanner, High Resolution Infrared Laser Scanner
Technical Specifications
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- High resolution infrared laser scanning with 905 nm wavelength
- Laser class 1 compliant with EN/IEC 60825-1 standards
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz to 100 Hz
- Self-heating with integrated heating for reliable operation
- Working range from 0.2 m up to 80 m
- Measurement accuracy of ±12 mm
- Multiple evaluated echoes (up to 5)
- Robust housing with IP65 and IP67 protection ratings
- Multiple communication interfaces including Ethernet, Serial, CAN, and USB
- Advanced filtering options including echo, fog, particle, average, and glare filters
- Operating temperature range from -30 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor environments requiring high resolution laser scanning
- Industrial automation and safety monitoring
- Object detection and measurement in various industrial fields
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable and scratch-resistant polycarbonate window reduces replacement waste
- Long MTBF (>100 years) minimizes electronic waste
- Energy efficient 24 V DC power supply with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS511-20100 PRO Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and precise measurement applications.
