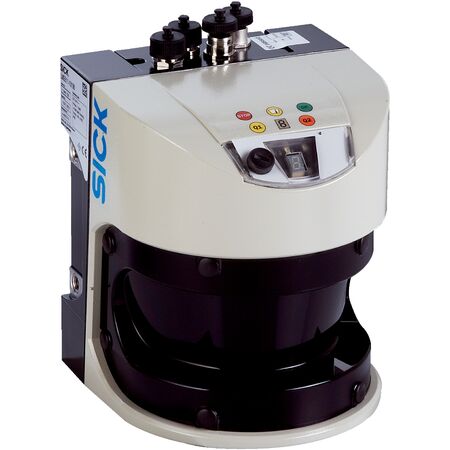

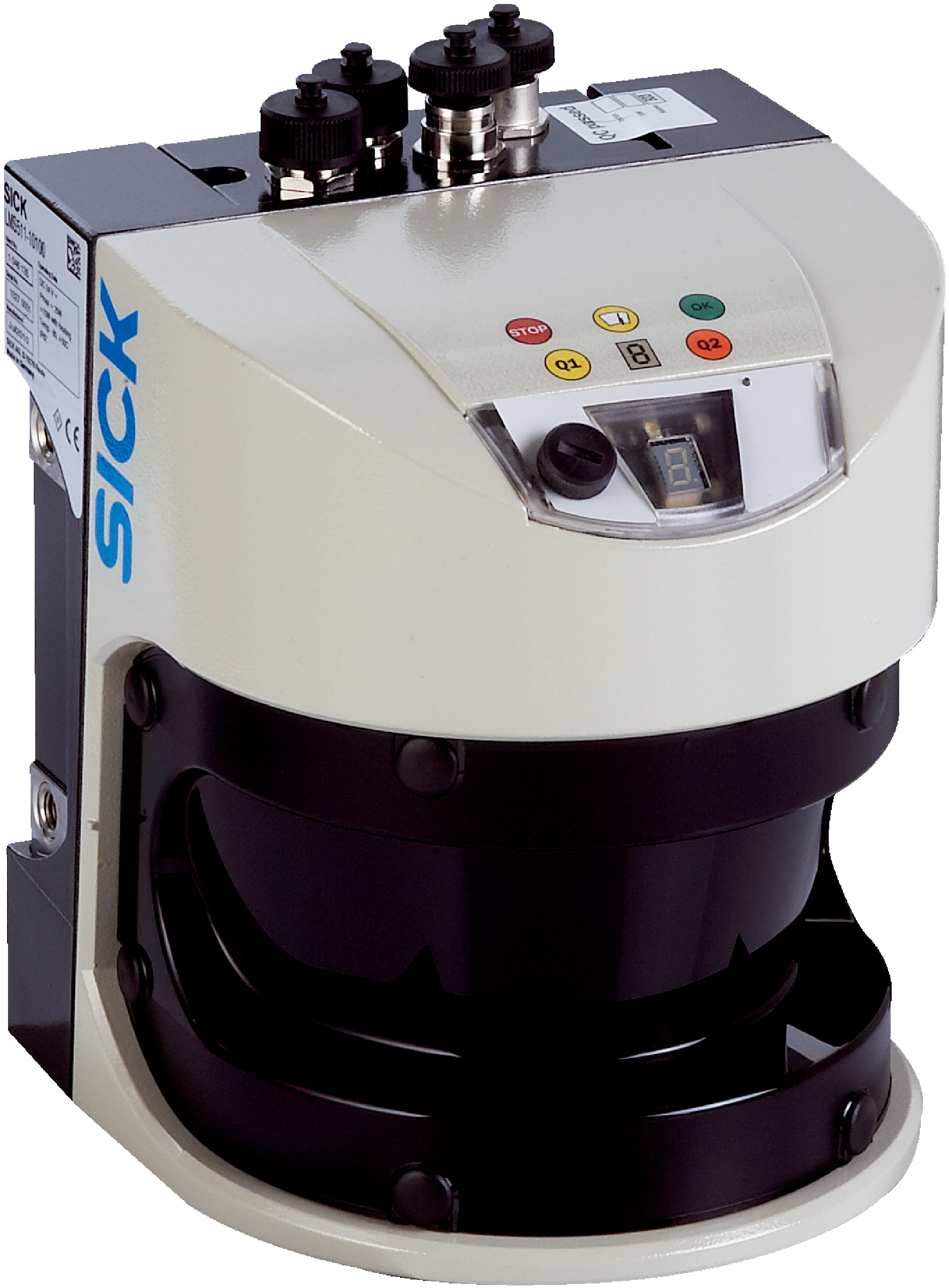

LMS511-21100 Lite Laser Scanner | Infrared 905 nm | IP65 & IP67 Rated | by SICK
The LMS511-21100 Lite Laser Scanner features high-resolution infrared scanning at 905 nm, with a wide 190° aperture angle and multiple scanning frequencies up to 75 Hz. Designed for both indoor and outdoor applications, it excels in object detection and industrial automation, ensuring reliable performance in various environments. Its robust IP65 and IP67 rated housing guarantees durability and protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LMS511-21100 Lite Laser Scanner | Infrared 905 nm | IP65 & IP67 Rated | by SICK
Brand: SICK
SKU: 1054154
Alternatively Known As: SICK LMS511 Lite Laser Scanner, LMS511-21100 Laser Sensor, SICK Outdoor Laser Scanner
Technical Specifications
- Light source: Infrared laser (905 nm ± 10 nm)
- Laser class: Class 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 190° horizontal
- Angular resolution: 0.25°, 0.5°, 1° selectable
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz
- Working range: 0.2 m to 80 m
- Measurement accuracy: ±12 mm
- Spot size divergence: 4.7 mrad
- Connection type: 4 x M12 round connectors
- Supply voltage: 24 V DC ± 20%
- Power consumption: 22 W typical, 55 W with heating
- Housing material: AlSi12 aluminum
- Window material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Response time: ≥ 13 ms
- Digital inputs: 2
- Digital outputs: 3
- Data transmission rates: Ethernet 10/100 MBit/s, Serial 9.6 kBaud to 500 kBaud
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Vibration resistance: 10 Hz to 150 Hz, amplitude 0.35 mm to 5 g
- Shock resistance: 15 g, 11 ms
- Impact resistance: IK05, IK06, IK07
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- High resolution infrared laser scanning with 905 nm wavelength
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz, 35 Hz, 50 Hz, 75 Hz
- Self-heating with integrated heating for cold environments
- Robust housing with IP65 and IP67 protection ratings
- Multiple interfaces including Ethernet, USB, and serial connections
- Advanced filtering options including echo, fog, particle, average, and glare filters
- Lightweight aluminum housing with scratch-resistant polycarbonate window
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance and optimal performance.
Applications
- Outdoor and indoor environment scanning
- Object detection and measurement
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption.
- Durable housing extends product lifespan, reducing waste.
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK LMS511-21100 Lite Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and environmental scanning applications.
