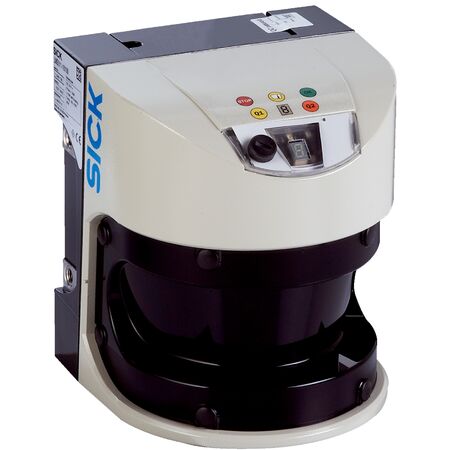

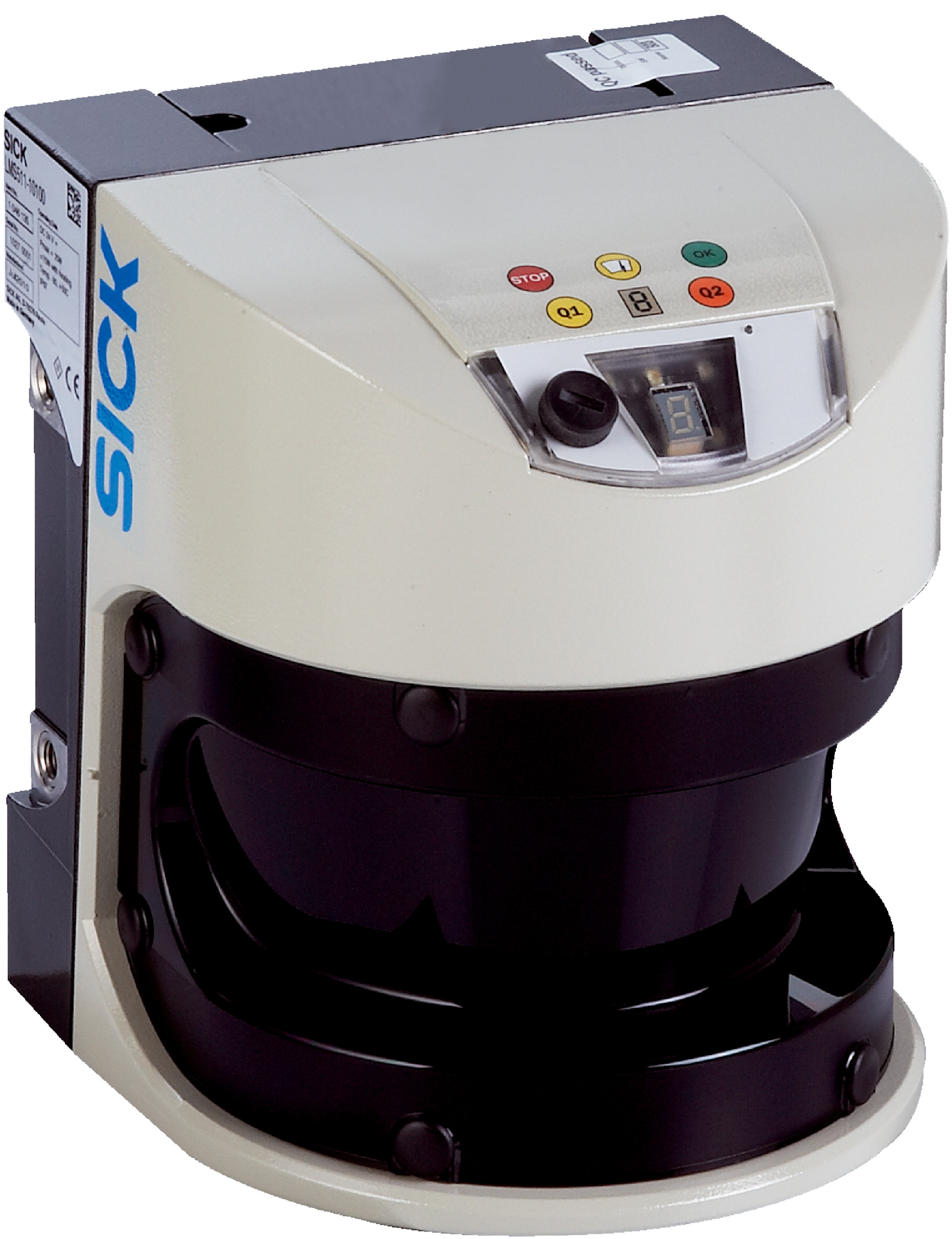

LMS511 Laser Scanner | High Resolution Infrared | 190° Aperture | Multiple Scanning Frequencies | by SICK
The LMS511 Laser Scanner offers high-resolution infrared scanning with a 190° horizontal aperture, making it ideal for both indoor and outdoor environment scanning. With multiple scanning frequencies ranging from 25 Hz to 100 Hz and robust IP65/IP67 protection, this scanner is built for industrial automation and safety monitoring, ensuring accurate object detection and measurement in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Horizontal aperture angle: 190°
- Angular resolution: 0.042° interlaced
- Scanning frequency options: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Working range: 0.2 m to 80 m
- Measurement accuracy: ± 12 mm
- Spot size at 26 m: 136 mm
- Power consumption: 22 W plus 55 W heating (typical)
- Supply voltage: 24 V DC, ± 20%
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Connection type: 4 x M12 round connectors
- Response time: ≥ 10 ms
- Object remission range: 2% to >1000%
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Vibration resistance: 10 Hz to 150 Hz, amplitude 0.35 mm to 5 g
- Shock resistance: 15 g, 11 ms
- Impact resistance: IK05, IK06, IK07
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- High resolution infrared laser scanning with 905 nm wavelength
- Wide horizontal aperture angle of 190°
- Multiple scanning frequencies: 25 Hz to 100 Hz
- Self-heating with integrated heating for reliable operation
- Robust housing with IP65 and IP67 protection ratings
- Multiple communication interfaces including Ethernet, Serial, CAN, and USB
- Advanced echo and environmental filters for accurate data
- Weight of 3.7 kg with durable AlSi12 housing and scratch-resistant polycarbonate window
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure compliance with safety standards and optimal device performance.
Applications
- Outdoor and indoor environment scanning
- Industrial automation and safety monitoring
- Object detection and measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Advanced filters improve measurement accuracy, minimizing errors and resource waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LMS511-20100S01 PRO Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and precise object detection applications.
