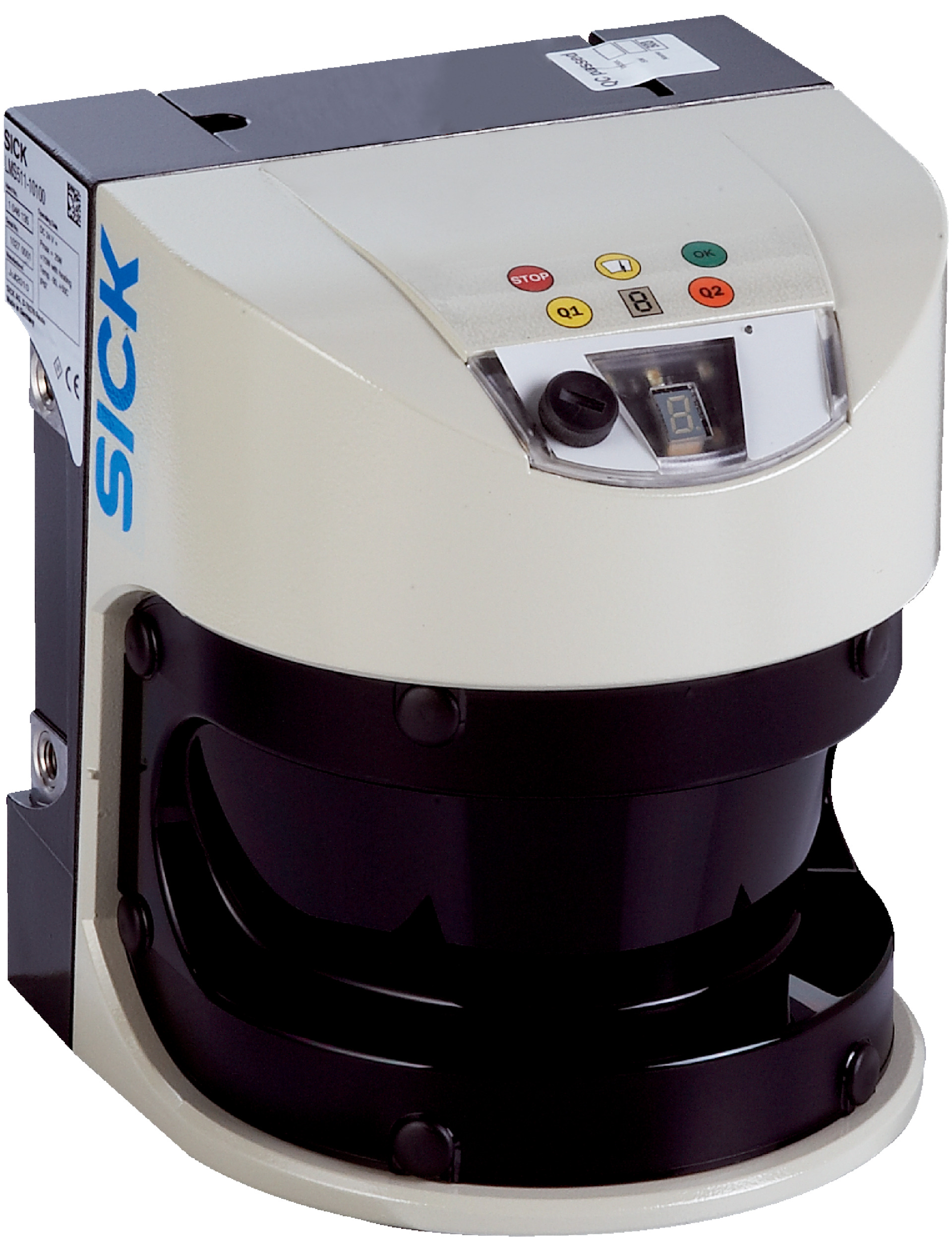

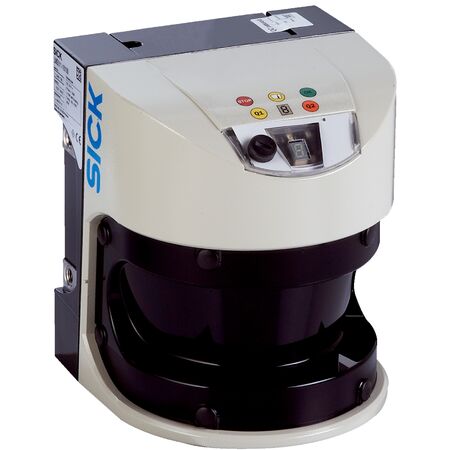

LMS511 Laser Scanner | Infrared Light Source | 190° Aperture Angle | High Measurement Accuracy | by SICK
The LMS511 Laser Scanner is designed for precise outdoor and indoor environment scanning, featuring an infrared light source and a wide 190° aperture angle. With a working range of 0.2 m to 80 m and high measurement accuracy of ± 24 mm, it's perfect for industrial automation and safety monitoring. Built to withstand harsh conditions, this robust scanner ensures reliable operation with IP65 and IP67 protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LMS511 Laser Scanner | Infrared Light Source | 190° Aperture Angle | High Measurement Accuracy | by SICK
Brand: SICK
SKU: 1055659
Alternatively Known As: LMS511 Laser Scanner, SICK PRO Laser Scanner, Infrared Laser Scanner, Industrial Laser Scanner
Technical Specifications
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- Infrared light source (905 nm, ± 10 nm) with laser class 1 safety
- Wide aperture angle of 190° horizontal
- Standard resolution with angular resolution options from 0.042° to 1°
- Self-heating with integrated heating for reliable operation
- Working range from 0.2 m up to 80 m
- High measurement accuracy of ± 24 mm
- Multiple echo evaluation (up to 5 echoes)
- Robust housing with IP65 and IP67 protection ratings
- Multiple interface options including Ethernet, Serial, CAN, and USB
- Advanced filters including echo, fog, particle, average, and glare filters
- High vibration and shock resistance
- Operating temperature range from –30 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor environment scanning
- Industrial automation and safety monitoring
- Object detection and measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable and robust design reduces need for frequent replacements
- Energy-efficient 24 V DC power supply
- Long MTBF (> 100 years) minimizes waste and maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LMS511-10100S01 PRO Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and object detection applications.
