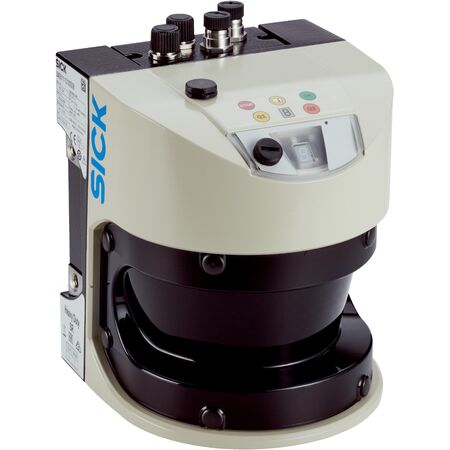

LMS531-10100 Security Laser Scanner | Infrared Light Source | 190° Aperture Angle | Multiple Scanning Frequencies | by SICK
The LMS531-10100 Security Laser Scanner is designed for advanced outdoor and indoor security monitoring, featuring an infrared light source and a wide 190° aperture angle. With multiple scanning frequencies and high measurement accuracy, it ensures reliable performance in industrial safety and automation applications, making it ideal for professionals seeking robust and precise security solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 190° horizontal
- Angular resolution: 0.042° to 1° interlaced options
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Working range: 1 m to 80 m
- Scanning range at 10% remission factor: 40 m
- Measurement accuracy: ± 24 mm
- Spot size divergence: 11.9 mrad
- Connection type: 4 x M12 round connectors (stainless steel)
- Supply voltage: 24 V DC, ± 20%
- Power consumption: 22 W typical, +55 W heating
- Housing material: AlSi12 aluminum alloy
- Window material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Response time: ≥ 10 ms
- Number of evaluated echoes: 5
- Interfaces: Ethernet (TCP/IP), Serial (RS-232, RS-422), CAN, USB (Mini-USB)
- Digital inputs/outputs: 4 digital inputs, 4 digital relay outputs
- Operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Electromagnetic compatibility: Industrial environment standards IEC 61000-6-2 and IEC 61000-6-3
- Vibration resistance: 10 Hz to 150 Hz, amplitude 0.35 mm to 5 g
- Shock resistance: 15 g, 11 ms, 6 shocks per axis
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- Infrared light source (905 nm, ± 10 nm) with laser class 1 safety
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Standard resolution with angular resolution options from 0.042° to 1°
- Self-heating with integrated heating for reliable operation in cold environments
- Working range from 1 m up to 80 m, with 40 m scanning range at 10% remission factor
- High measurement accuracy of ± 24 mm
- Multiple echo evaluation (up to 5 echoes)
- Robust housing with IP65 and IP67 protection ratings
- Multiple interface options including Ethernet, Serial (RS-232, RS-422), CAN, and USB
- Digital inputs and outputs with relay function
- Electromagnetic compatibility for industrial environments
- Wide ambient operating temperature range from –40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance with safety standards and optimal device performance.
Applications
- Outdoor security monitoring
- Indoor security systems
- Industrial safety and automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 22 W typical and additional heating power only when needed
- Durable and robust design reduces replacement frequency and electronic waste
- High reliability with MTBF greater than 100 years minimizes maintenance and resource use
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK LMS531-10100 Security PRO Laser Scanner is available for immediate purchase, ideal for advanced security and industrial safety applications.
