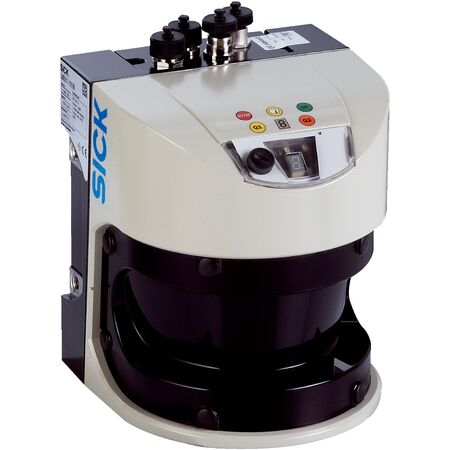

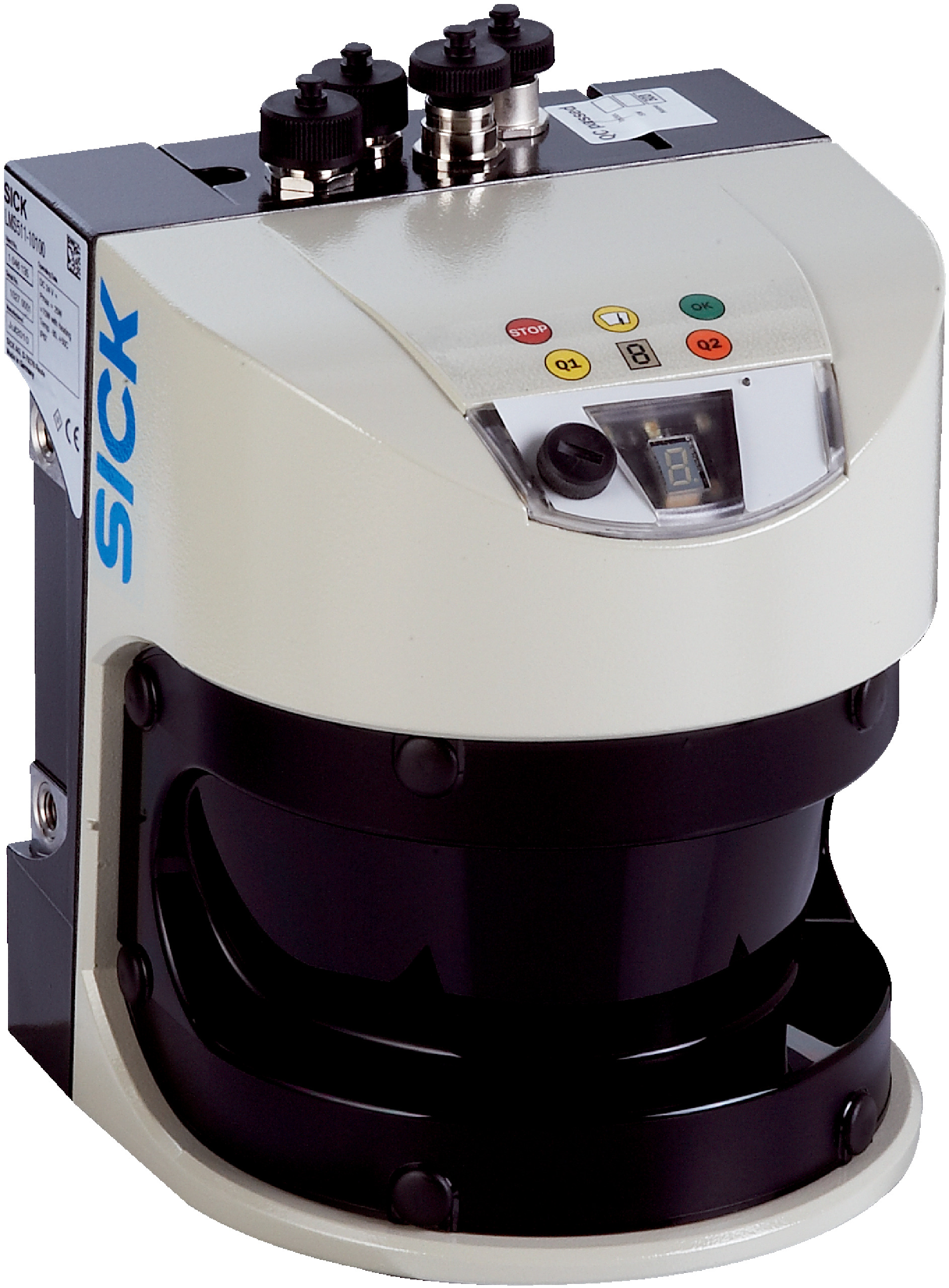

LMS531-11100 Security Laser Scanner | Infrared Light Source | 190° Aperture Angle | IP65 & IP67 Rated | by SICK
The LMS531-11100 Security Laser Scanner is designed for outdoor and indoor security applications, featuring an infrared light source and a wide 190° aperture angle for enhanced monitoring. With a working range of up to 80 m and multiple scanning frequencies, it ensures reliable performance in various environments. Built for industrial safety, this robust scanner offers IP65 and IP67 ratings, making it ideal for challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LMS531-11100 Security Laser Scanner | Infrared Light Source | 190° Aperture Angle | IP65 & IP67 Rated | by SICK
Brand: SICK
SKU: 1055376
Alternatively Known As: LMS531 Security Laser Scanner, SICK Infrared Laser Scanner, Outdoor Security Scanner, Industrial Laser Scanner
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 190°
- Angular resolution horizontal: 0.25°, 0.5°, 1°
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz
- Working range: 1 m to 80 m
- Scanning range at 10% remission factor: 40 m
- Measurement accuracy: ± 24 mm
- Spot size divergence: 11.9 mrad
- Connection type: 4 x M12 round connectors
- Supply voltage: 24 V DC, ± 20%
- Power consumption: 22 W typical, 55 W heating
- Housing material: AlSi12
- Window material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Response time: ≥ 13 ms
- Digital inputs: 3 (digital)
- Digital outputs: 3 (2 relay, 1 digital)
- Interfaces: Ethernet (TCP/IP, UDP/IP), USB (Mini-USB)
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 3.7 kg
- Dimensions (L x W x H): 160 mm x 155 mm x 185 mm
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- Infrared light source (905 nm, ± 10 nm) with laser class 1 safety
- Wide aperture angle of 190° horizontal with 0.25° angular resolution
- Scanning frequency options: 25 Hz, 35 Hz, 50 Hz, 75 Hz
- Working range from 1 m up to 80 m with 40 m scanning range at 10% remission factor
- Self-heating with integrated heating for reliable operation in cold environments
- Robust housing made of AlSi12 with polycarbonate scratch-resistant window
- High ingress protection rating IP65 and IP67
- Multiple filters including echo, fog, particle, average, and glare filters
- Ethernet and USB interfaces with digital inputs and outputs
- Weight of 3.7 kg and dimensions approximately 160 mm x 155 mm x 185 mm
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup, alignment, and compliance with safety standards.
Applications
- Outdoor security monitoring
- Indoor security applications
- Industrial safety and automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 22 W typical power and efficient heating system
- Durable and robust design reduces need for frequent replacements
- High electromagnetic compatibility reduces interference and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS531-11100 Security laser scanner is available for immediate purchase, ideal for outdoor and indoor security and industrial safety applications.
