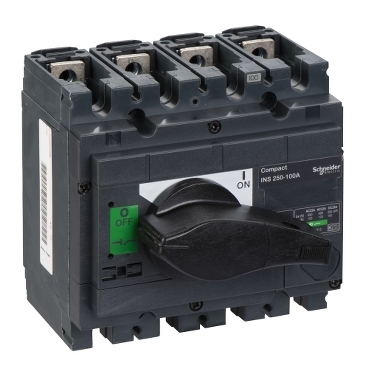

Load Break Switch 100A 4P | Robust Load Break Mechanism | Padlockable Handle | Compact Design | @Pack of 1 | by Clipsal
The Load Break Switch 100A 4P is designed for reliable circuit isolation in industrial and commercial applications. With a robust load break mechanism and a padlockable handle, it ensures safe disconnection under load. Ideal for switchboards and motor control centers, this switch complies with AS/NZS standards, making it a dependable choice for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Load Break Switch 100A 4P | Robust Load Break Mechanism | Padlockable Handle | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH31101
Alternatively Known As: 100A 4 Pole Load Break Switch, Clipsal SCH31101, 4P Isolator Switch, Main Switch 100A 4P, Load Break Isolator 100A
Technical Specifications
- Rated current: 100A
- Number of poles: 4
- Rated insulation voltage: 690V AC
- Utilization category: AC-23A
- Conforms to IEC 60947-3
- Padlockable handle
- Mounting: DIN rail or panel
- IP20 protection (enclosed), higher with suitable enclosure
- Dimensions (H x L x W): 160mm x 100mm x 140mm
- Weight: 1.8 kg
Key Features
- 100A rated current for reliable circuit isolation
- 4 pole configuration for three-phase and neutral switching
- Robust load break mechanism ensures safe disconnection under load
- Padlockable handle for enhanced safety during maintenance
- Compact design for easy integration into switchboards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Industrial switchboards
- Commercial electrical distribution panels
- Main and sub-main circuit isolation
- Motor control centers
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Enables safe isolation of electrical circuits, supporting energy-efficient maintenance and reducing downtime.
- Durable construction minimizes replacement frequency, reducing waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Load Break Switch INS250-100A 4P (SCH31101) is available for immediate purchase. Ideal for industrial and commercial switchboard applications requiring reliable circuit isolation.
