Load Break Switch 2 Pole 630A | 1500V DC | IP20 Protection | Padlockable by NHP
Load break switch with 1500V DC and 630A capacity—ideal for solar power systems and DC distribution networks. Built for industrial and commercial use, with IP20 protection and padlock locking for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

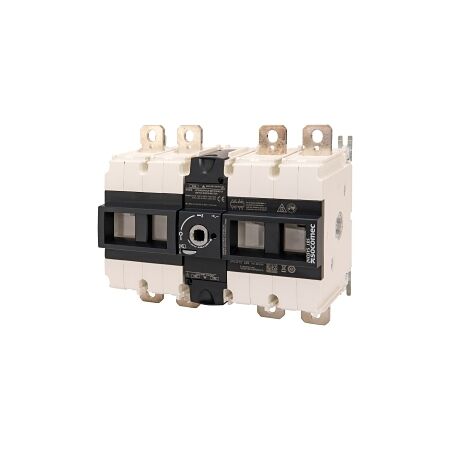

Product Name/Title: Socomec INOSYS Load Break Switch, Centred, 2 Pole 630A 1500V DC-PV2
Brand: NHP
SKU: 86P11064
Alternatively Known As: Load Break Switch, DC Switch Disconnector, Solar Switch
Technical Specifications
- Max rated operation voltage (AC): 1500 V
- Rated short time withstand current: 8 kA
- Rated impulse withstand voltage: 12 kV
- Type of electrical connection: Bolt connection
- Built-in device fixed built-in technique
- Suitable for front mounting with 4 holes
- Version as main switch, maintenance service switch, and safety switch
- Dimensions (H x L x W): 137mm x 110mm x 380mm
- Weight: 3.6 kg
Key Features
- Rated operating voltage: 600-1500 V
- Rated permanent current: 630 A
- IP20 protection degree
- Interlockable and padlock locking features
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Solar power systems, DC distribution networks
- Commercial: Renewable energy installations, electrical safety systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Facilitates safe and efficient operation of renewable energy systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec INOSYS Load Break Switch is available now for immediate purchase. Ideal for industrial and commercial applications in renewable energy systems.
Non-Returnable & Non-Cancellable
