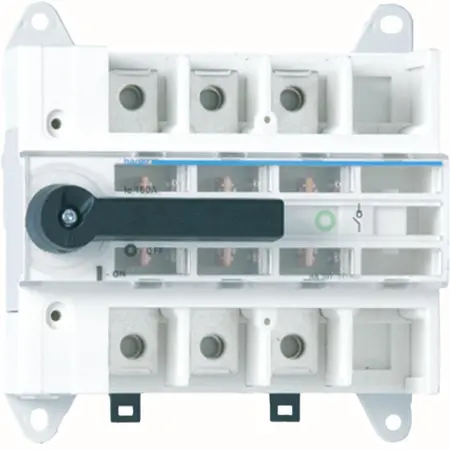

Load Break Switch 3P 160A | 5.88 kA Capacity | Interlockable Cover by Hager
Load break switch with 160A rated current and 5.88 kA short-circuit capacity—ideal for industrial and commercial power distribution. Built for safety with an interlockable cover, ensuring reliable operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Load break switch 3P 160A
Brand: Hager
SKU: HA307
Alternatively Known As: 3 Phase Load Break Switch, 160A Load Break Switch, Hager Load Break Switch
Technical Specifications
- Rated current: 160 A
- Acceptable current rating AC21: 160 A
- Rated short-circuit making capacity Icm: 5.88 kA
- Rated operational voltage Ue: 380 - 415 V
- Power loss per pole at In: 3.30 W
- Ingress Protection (IP) class: IP00
- Frequency: 50 - 60 Hz
- Nominal tightening torque: 9 - 9.9 Nm
- Dimensions (H x L x W): 82.5mm x 136mm x 142mm
- Weight: 2.5 kg
Key Features
- Rated current of 160A with multiple acceptable current ratings.
- Rated short-circuit making capacity of 5.88 kA.
- Operating temperature range of -20 to 70 °C.
- Interlockable cover for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Main switchgear applications
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Hager Load Break Switch 3P 160A is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
