Load Break Switch 3P 40A | 400-690V | DIN Rail Mount | IP20 by NHP
Load break switch with 3-pole design and 40A current—ideal for industrial and commercial power distribution. Built for easy installation with DIN rail compatibility and IP20 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

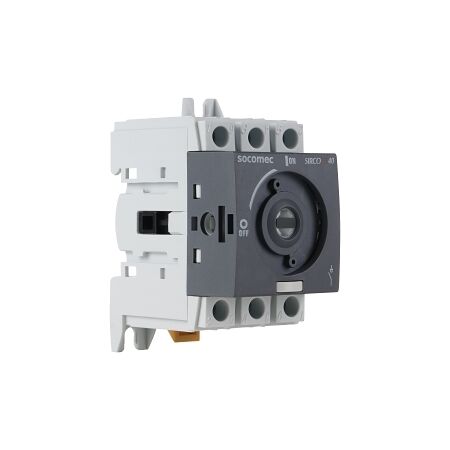

Product Name/Title: Socomec SLBM Load Break Switch Body, Base/DIN Rail mount, 3P 40A
Brand: NHP
SKU: 22003004
Alternatively Known As: Load Break Switch, Switch Disconnector, SLBM Switch
Technical Specifications
- Rated Operating Voltage: 400-690 V
- Max Rated Operation Voltage: 800 V
- Rated Permanent Current: 40 A
- Rated Operation Power: 18.5 kW
- Rated Short Time Withstand Current: 1.26 kA
- Conditioned Rated Short Circuit Current: 50 kA
- Mechanical Life: 10,000 cycles
- Type of Electrical Connection: Screw connection
- Device Construction: Built-in device fixed built-in technique
- Dimensions (H x L x W): 68mm x 64mm x 45mm
- Weight: 1.5 kg
Key Features
- 3-pole design with a rated permanent current of 40A.
- IP20 protection rating suitable for indoor use.
- Compatible with DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Electrical installations requiring load break switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec SLBM Load Break Switch Body is available now for immediate purchase, ideal for industrial and commercial electrical installations.
