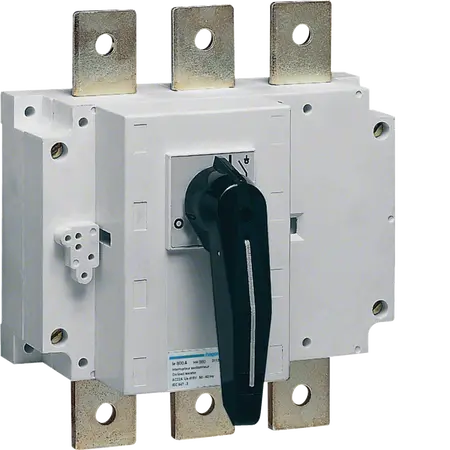

Load Break Switch 3P 800A | 48kA Icm | 380-415V | IP00 by Hager
Load break switch with 800A rating and 48kA short-circuit capacity—ideal for industrial and commercial power distribution. Built for reliability, with interlockable cover and RoHS compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Load break switch 3P 800A
Brand: Hager
SKU: HA360
Alternatively Known As: 800A Load Break Switch, Hager HA360, 3 Pole Load Break Switch
Technical Specifications
- Rated short-circuit making capacity Icm: 48 kA under 415 V AC.
- Rated operational voltage: 380 - 415 V.
- Operating temperature range: -20 to 70 °C.
- Power loss per pole at In: 39.70 W.
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 10 kg
Key Features
- Rated current of 800A with a short-time withstand current of 26kA.
- IP00 ingress protection class.
- Fixed built-in construction with interlockable cover.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings and infrastructure
- General: Any application requiring reliable load break switching
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Load Break Switch 3P 800A is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
