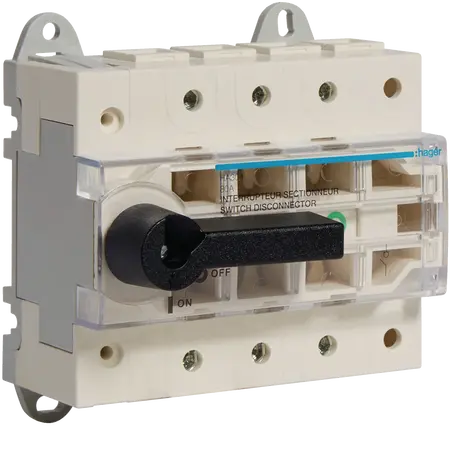

Load Break Switch 3P 80A | 380-415V | IP20 Protection by Hager

BRAND: :hager
SKU: HA304
$128.00 List price: $163.70
+
Load break switch with 80A current and 380-415V operational voltage—ideal for industrial and commercial power distribution. Built for safety with IP20 protection and professional installation recommended.

Product Name/Title: Load break switch 3P 80A

Brand: Hager

SKU: HA304

Alternatively Known As: 80A Load Break Switch, 3 Pole Load Break Switch, Hager Load Break Switch

Technical Specifications
  • Rated current: 80A
  • Rated operational voltage: 380 - 415V
  • Rated short-time withstand current: 2.50 kA
  • Operating temperature: -20 to 70 °C
  • Number of poles: 3
  • Ingress Protection: IP20
  • Dimensions (H x L x W): 86.5mm x 90mm x 108mm
  • Weight: 2.5 kg
Key Features
  • Rated current of 80A with multiple acceptable current ratings.
  • IP20 ingress protection for safe operation.
  • Rated operational voltage of 380 - 415V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical installations in commercial buildings
  • General: Main switchgear for load management
Standards & Compliance
  • Complies with AS/NZS 60947 for electrical equipment safety.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager Load Break Switch 3P 80A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

HA304 (HA304, 197 Kb) [Download]

reach_declaration_HA304.pdf (reach_declaration_HA304.pdf, 103 Kb) [Download]

rohs_declaration_HA304.pdf (rohs_declaration_HA304.pdf, 104 Kb) [Download]

(XP1_HA404_6H5135A.pdf, 318 Kb) [Download]

(DECLARATION_21_1530_05_21.pdf, 201 Kb) [Download]

(DECLARATION_22_3399_04_22.pdf, 777 Kb) [Download]
