Load Break Switch 3P 80A | 800V Max | Interlockable Design | IP20 by NHP
Load break switch with 80A rating and 800V max voltage—ideal for industrial and commercial power distribution. Built for safety with interlockable design and IP20 protection, suitable for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

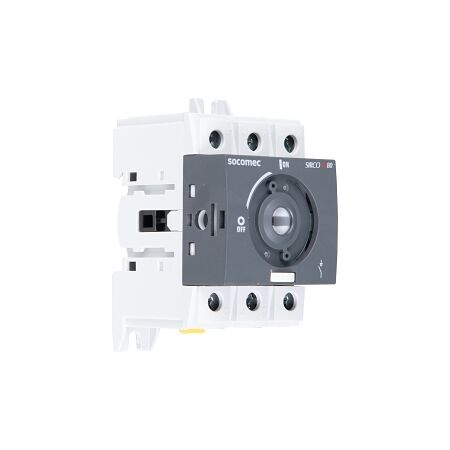

Product Name/Title: Socomec SLBM Load Break Switch Body, Base/DIN Rail mount, 3P 80A
Brand: NHP
SKU: 22003008
Alternatively Known As: Load Break Switch, Switch Disconnector, SLBM Switch
Technical Specifications
- Rated Operating Voltage: 400-690 V
- Max Rated Operation Voltage: 800 V
- Rated Permanent Current: 80 A
- Rated Operation Power: 37 kW
- Rated Short Time Withstand Current: 1.5 kA
- Conditioned Rated Short Circuit Current: 50 kA
- Mechanical Life: 10,000 cycles
- Type of Electrical Connection: Screw connection
- Suitable for Distribution Board Installation: Yes
- Suitable for Intermediate Mounting: Yes
- Dimensions (H x L x W): 111mm x 83mm x 65mm
- Weight: 1.5 kg
Key Features
- Rated for 80A with a maximum operating voltage of 800V.
- IP20 protection rating suitable for indoor use.
- Interlockable design for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Electrical installations requiring load break switches
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec SLBM Load Break Switch Body, Base/DIN Rail mount, 3P 80A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
