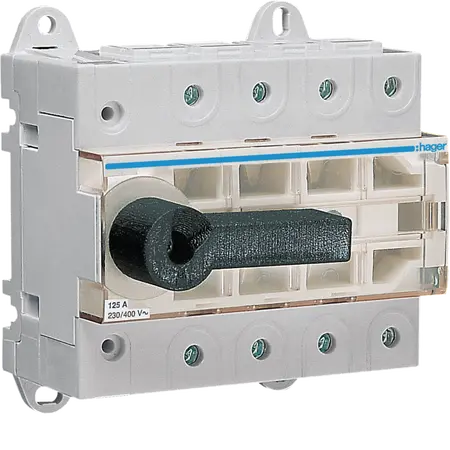

Load Break Switch 4P 125A | Visible Breaking | IP20 Indoor Use by Hager

BRAND: :hager
SKU: HA406
$510.30 List price: $636.00
+
Load break switch with 125A rated current and visible breaking—ideal for industrial and commercial power distribution. Built for safety and efficiency, with IP20 protection and compatibility with conductors up to 50 mm².

Product Name/Title: Load break switch with visible breaking 4P 125A

Brand: Hager

SKU: HA406

Alternatively Known As: 4 Pole Load Break Switch, 125A Switch Disconnector, Hager HA406

Technical Specifications
  • Rated current: 125A
  • Rated operational voltage: 380 - 415V
  • Rated short-time withstand current: 2.50 kA
  • Operating temperature: -20 to 70 °C
  • Power loss per pole at In: 5.70W
  • Number of poles: 4
  • Type of connection: Screw terminal
  • Dimensions (H x L x W): 86.5mm x 90mm x 108mm
  • Weight: 5 kg
Key Features
  • Rated current of 125A with visible breaking.
  • IP20 ingress protection for indoor use.
  • Compatible with rigid and flexible conductors up to 50 mm².
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical installations in commercial buildings
  • General: Main switchgear for load management
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager Load Break Switch with Visible Breaking 4P 125A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

Data Sheet (HA406, 276 Kb) [Download]

Certificate (reach_declaration_HA406.pdf, 103 Kb) [Download]

Certificate (rohs_declaration_HA406.pdf, 104 Kb) [Download]

Data Sheet (HA406.webp, 903 Kb) [Download]

Certificate (XP1_HA404_6H5135A.pdf, 318 Kb) [Download]

Certificate (DECLARATION_21_1530_05_21.pdf, 201 Kb) [Download]

Certificate (DECLARATION_22_3399_04_22.pdf, 777 Kb) [Download]
