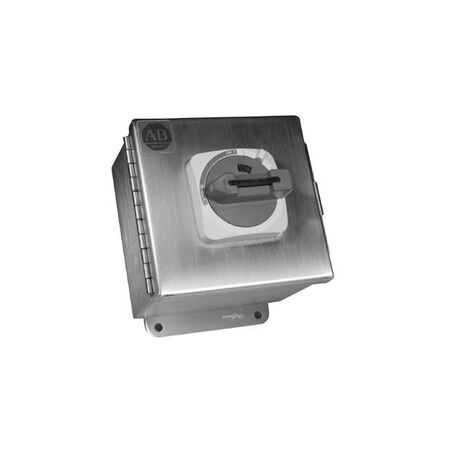

Load Switch Enclosed Disconnect | 25 Amp Capacity | IP66 Rated | Stainless Steel Enclosure | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 194EDA20E
$1,459.80 List price: $1,819.10
+ −
30 Days Return Delivery Options
The Load Switch Enclosed Disconnect by Allen-Bradley is designed for reliable industrial electrical load switching, featuring a robust 25 amp capacity and an IP66 rated stainless steel enclosure for superior dust and water resistance. Ideal for motor control and factory automation systems, this switch ensures safe operation with its clear red/yellow handle and hinged design for easy access.
Technical Specifications
  • Series: 194E
  • Load Capacity: 25 Amp
  • Poles: 3
  • Enclosure: Stainless steel, UL Type 4/4X
  • Ingress Protection: IP66
  • Handle: Red/Yellow, hinged
  • Type: Load Switch Enclosed Disconnect
  • Dimensions (H x L x W): 200mm x 100mm x 150mm
  • Weight: 2.5 kg
Key Features
  • Enclosed disconnect switch with small-frame design
  • UL Type 4/4X rated stainless steel enclosure
  • IP66 rated for dust-tight and water-resistant protection
  • Hinged enclosure for easy access
  • Red/yellow handle for clear ON/OFF indication
  • 3 pole, 25 amp load capacity
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
  • Industrial electrical load switching
  • Motor control and protection
  • Factory automation systems
  • Commercial and industrial electrical panels
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel enclosure extends product life reducing waste
  • IP66 rating ensures protection against environmental contaminants, reducing maintenance and replacement frequency
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 194EDA20E Load Switch is available for immediate purchase, ideal for industrial and commercial electrical load switching applications.
