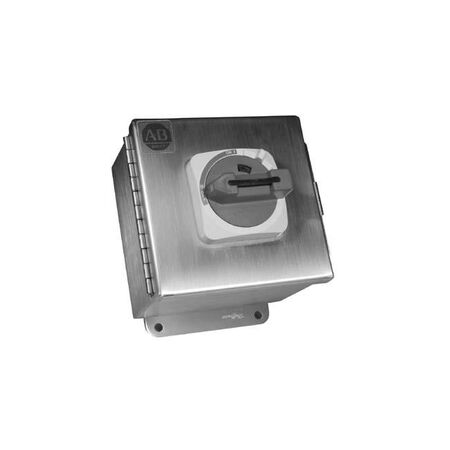

Load Switch Enclosed Small-Frame 25 Amp | IP66 Rated | Stainless Steel | by Allen-Bradley
The Load Switch Enclosed Small-Frame 25 Amp is designed for reliable industrial electrical load switching. With a robust IP66 rated stainless steel enclosure and a 3-pole configuration, it’s perfect for control panels and machinery in harsh environments. The hinged design with 194R handles ensures easy operation, making it ideal for professionals seeking durability and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Current Rating: 25 Amp
- Poles: 3
- Enclosure Material: Stainless Steel
- Ingress Protection: IP66
- UL Type: 4/4X
- Handle Type: 194R Hinged Grey/Black
- Switch Type: Load Disconnect
- Dimensions (H x L x W): 200mm x 100mm x 150mm
- Weight: 2.5 kg
Key Features
- Enclosed disconnect load switch
- Small-frame switch with 3 poles
- IP66 rated stainless steel enclosure
- Hinged design with 194R handles
- UL Type 4/4X rated for harsh environments
- 25 Amp current rating
- Grey/black handle for easy identification
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial electrical load switching
- Control panels and machinery
- Environments requiring IP66 stainless steel protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel enclosure reduces need for frequent replacements
- IP66 rating protects against dust and water ingress, extending product life
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 194EDA20 Load Switch is available for immediate purchase, ideal for industrial and commercial electrical load switching applications.
