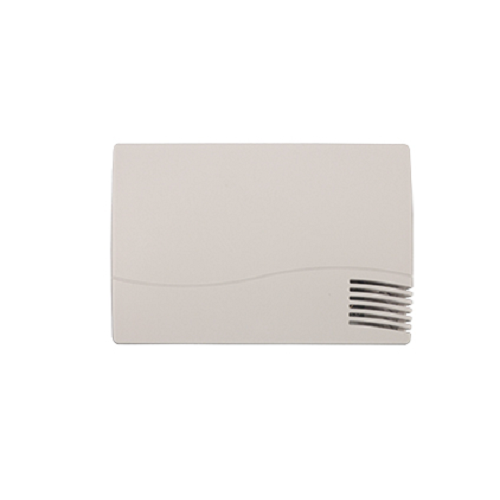

Local Zone Temperature Sensor Ness

BRAND: Ness
SKU: 101-229B
$158.60 List price: $211.50
+ −
30 Days Return Electricians Unlock Trade Access
Ness local zone temperature sensor connects to M1 alarm systems for temperature monitoring. Ideal for M1 temperature monitoring.

Alternatively Known As: Ness M1ZTS, Ness Local Zone Temperature Sensor, Ness M1 Temperature Sensor, Zone Temperature Interface and Sensor

Technical Specifications
  • Compatibility: Ness M1 alarm systems
  • Sensor Type: Wired zone temperature sensor and interface
  • Temperature Range: -45°C to +60°C
  • Operating Voltage: 12 V DC
  • Current Draw: 10 mA
  • Connection: Three-wire communication to an M1 zone interface
  • Zone Compatibility: M1 main board zones 1–16
  • Maximum Cable Distance: 300 m from the M1 control
  • Housing: Non-weatherproof; suitable for covered indoor or outdoor locations
  • Temperature Zone Programming: M1 temperature zone definition with fast-loop response
  • Dimensions (H x L x W): 25mm x 60mm x 32mm
  • Weight: 0.1 kg
Key Features
  • Monitors remote temperatures through compatible Ness M1 alarm systems
  • Suitable for temperature alerts, automation rules and remote monitoring
  • Connects to any available M1 main board zone from 1 to 16
  • Low 10 mA current draw
  • Short-probe configuration for installations where the interface and sensor are located together
  • Suitable for covered indoor or outdoor environments
  • Up to 16 temperature interfaces can be used with one M1 control
Professional Installation Requirements
  • Installation should be performed by a suitably qualified alarm or security technician. The sensor requires hardwired connection to an M1 control zone, auxiliary 12 V DC and the correct M1 temperature-zone programming. Install outdoors only in a covered or weather-resistant enclosure.
Applications
  • Remote temperature monitoring in residential properties
  • Freeze and low-temperature monitoring
  • Wine cellars and storage areas
  • Server rooms and equipment rooms
  • Commercial coolers and freezers
  • Agricultural and outbuilding temperature monitoring
  • Temperature-based alarm and automation rules
Standards & Compliance
  • AS/NZS 2201.1:2007 may apply to the design, installation, commissioning and maintenance of the complete intruder alarm system; product-specific compliance is not separately stated by Ness.
Environmental Benefits
  • Low 10 mA operating current helps minimise energy consumption during continuous monitoring
  • Wired operation avoids disposable batteries and associated battery waste
  • Long-term installation can reduce replacement and electronic waste compared with frequently replaced standalone sensors
Warranty Information

Ness Corporation’s general product warranty is three years from the date of purchase for Ness-manufactured or supplied products, subject to the published warranty terms and exclusions.

Available Now

Available through Ness and authorised Australian security-system distributors, subject to product range and distributor stock.
