Lock Washer DIN 127 Shape B | Right-Angle Cross-Section | A2 Stainless Steel | Plain Finish | @Pack of 100 | by Wurth
Lock Washer DIN 127 Shape B is designed for secure fastening in mechanical applications, featuring a right-angle cross-section and made from corrosion-resistant A2 stainless steel. With a plain surface finish, it's ideal for industrial, automotive, and construction uses, ensuring reliable performance and compliance with DIN 127 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer DIN 127 Shape B | Right-Angle Cross-Section | A2 Stainless Steel | Plain Finish | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 44710
Alternatively Known As: Locking washer, spring washer, DIN 127 washer, stainless steel lock washer

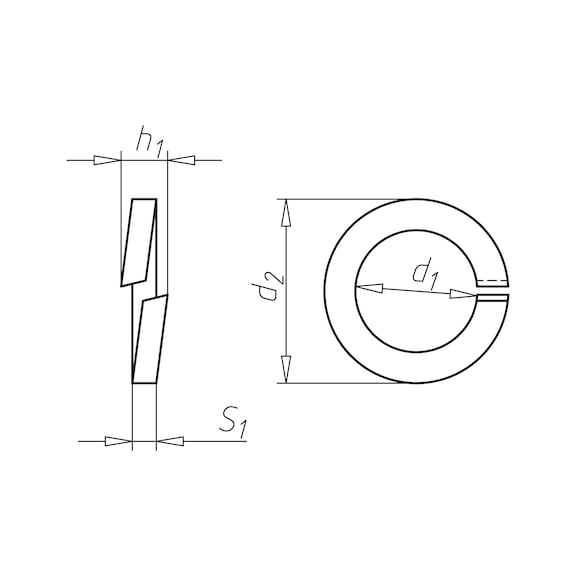

Technical Specifications
- Suitable for screw thread: M10
- Internal diameter (d1): 10.2 mm
- Outer diameter (d2): 18.1 mm
- Height (h1): 4.4 mm
- Thickness (s1): 2.2 mm
- Material: Stainless steel A2
- Surface: Plain
- Form: B
- Standards: DIN 127
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.4mm x 18.1mm x 18.1mm
- Weight: 0.1 kg
Key Features
- Right-angle cross-section lock washer, shape B
- Made from corrosion-resistant stainless steel A2
- Plain surface finish
- Compliant with DIN 127 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening applications requiring secure locking of screws and bolts
- Industrial machinery assembly
- Automotive repairs and maintenance
- Construction and structural applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from durable stainless steel for long service life reducing replacement frequency
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
