Lock Washer DIN 127 Shape B | Right-Angle Cross-Section | A2 Stainless Steel | Plain Finish | @Pack of 100 | by Wurth
Lock Washer DIN 127 Shape B is designed for secure fastening in mechanical applications, featuring a right-angle cross-section and made from durable A2 stainless steel. With a plain finish, this washer is ideal for industrial, automotive, and general engineering tasks, ensuring reliable performance and compliance with DIN standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer DIN 127 Shape B | Right-Angle Cross-Section | A2 Stainless Steel | Plain Finish | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4473
Alternatively Known As: Locking washer, spring washer, DIN 127 washer, stainless steel lock washer
Technical Specifications

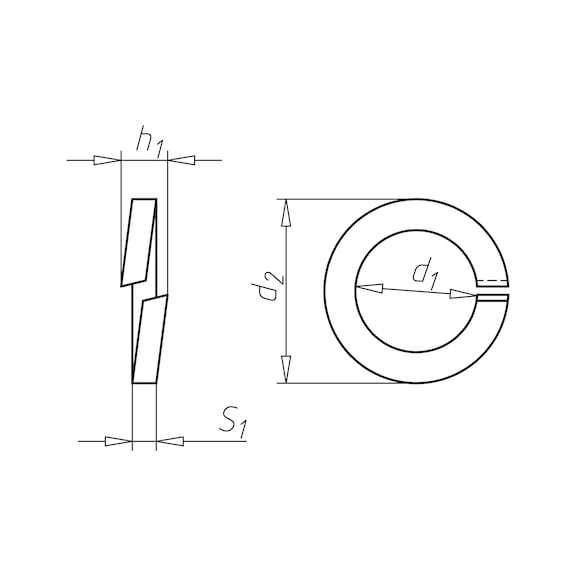

- Suitable for screw thread: M3
- Internal diameter (d1): 3.1 mm
- Outer diameter (d2): 6.2 mm
- Height (h1): 1.6 mm
- Thickness (s1): 0.8 mm
- Material: Stainless steel A2
- Surface: Plain
- Form: B
- Standards: DIN 127
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.6mm x 6.2mm x 6.2mm
- Weight: 0.05 kg
Key Features
- Right-angle cross-section lock washer, shape B
- Made from corrosion-resistant stainless steel A2
- Plain surface finish
- Compliant with DIN 127 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening applications requiring secure locking of screws and bolts
- Industrial machinery assembly
- Automotive repairs and maintenance
- General engineering and construction
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel material reduces need for frequent replacements
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Lock Washer with right-angle cross-section, shape B DIN 127, A2 stainless steel plain finish is available for immediate purchase. Ideal for industrial, automotive, and mechanical fastening applications.
