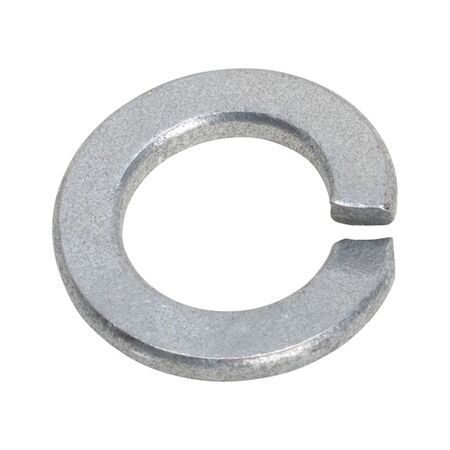

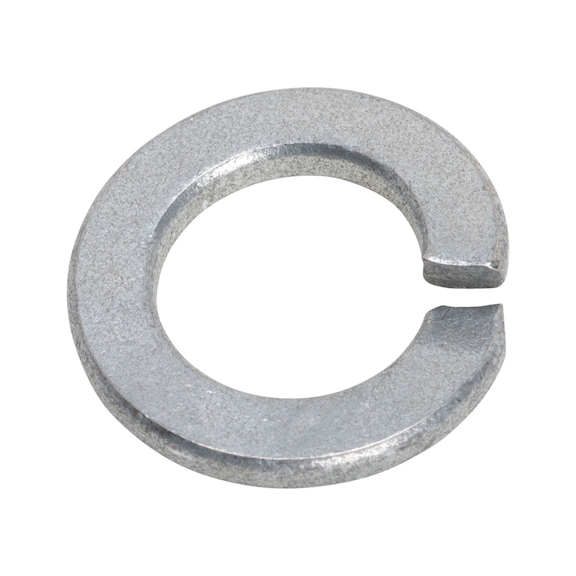

Lock Washer DIN 127 Shape B | Right-Angle Cross-Section | Zinc Coated for Corrosion Resistance | @Pack of 50 | by Wurth
Lock Washer DIN 127 Shape B is designed for secure mechanical fastening, featuring a right-angle cross-section and zinc coating for enhanced corrosion resistance. Ideal for applications requiring vibration resistance, this washer is suitable for screws of strength class ≤ 5.8, ensuring reliable performance in industrial and construction settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer DIN 127 Shape B | Right-Angle Cross-Section | Zinc Coated for Corrosion Resistance | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 44112
Alternatively Known As: Spring Lock Washer, DIN 127 Washer, Zinc Plated Lock Washer, Right-Angle Lock Washer
Technical Specifications
- Suitable for screw thread: M12
- Internal diameter (d1): 12.2 mm
- Outer diameter (d2): 21.1 mm
- Height (h1): 5.0 mm
- Thickness (s1): 2.5 mm
- Material: Spring steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: B
- Standards: DIN 127
- Dimensions (H x L x W): 5.0mm x 21.1mm x 21.1mm
- Weight: 0.05 kg
Key Features
- Suitable for screws of strength class ≤ 5.8
- Right-angle cross-section, shape B
- Mechanically applied zinc coating for corrosion resistance
- Complies with DIN 127 standard
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper fastening and safety compliance.
Applications
- Mechanical fastening requiring secure locking of screws
- Suitable for use with screws of strength class ≤ 5.8
- Industrial and construction applications requiring vibration resistance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for mechanical fastening applications requiring secure locking washers.
