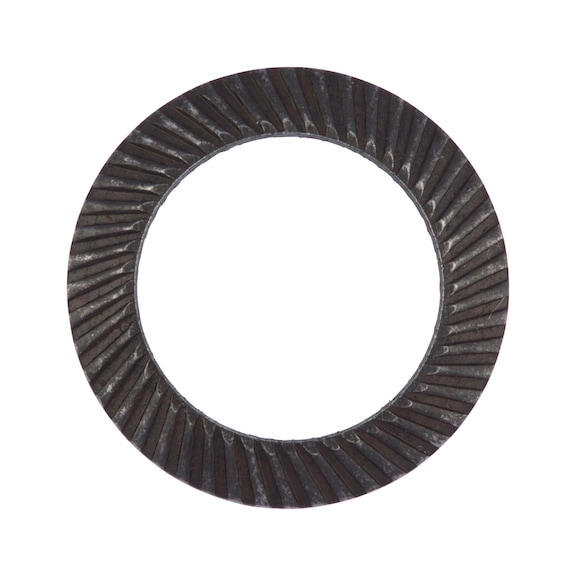

Lock Washer S Spring Steel | Belleville Form | Plain Surface | @Pack of 10 | by Wurth
Lock Washer S Spring Steel is designed for secure mechanical fastening, featuring a Belleville form with angled teeth for optimum friction-fit. Ideal for preventing loosening in assemblies with short screws, this durable washer is RoHS-compliant and perfect for applications requiring reliable connections. Ensure safety and performance with this pack of 10 washers, suitable for both professional and DIY use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer S Spring Steel | Belleville Form | Plain Surface | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 4938
Alternatively Known As: Belleville lock washer, spring steel lock washer, S form lock washer, plain lock washer
Technical Specifications
- Internal diameter (d1): 8.4 mm
- Outer diameter (d2): 13 mm
- Height (h1): 1.4 mm
- Thickness (s1): 0.7 mm
- Material: Spring steel
- Surface: Plain
- Form: S
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.4mm x 13mm x 13mm
- Weight: 0.01 kg
Key Features
- Belleville washer form with angled teeth for optimum friction-fit and form-fit connection
- Prevents connection loosening by supplementing pre-tensioning force
- Made from durable spring steel
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper application and safety.
Applications
- Used to prevent loosening of connections in assemblies with short screws
- Ideal for applications with loads vertical to the screw axis
- Suitable for mechanical fastening requiring friction-fit and form-fit connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable material reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Lock Washer S Spring Steel Plain 10 PCS is available for immediate purchase, ideal for mechanical fastening applications requiring secure and reliable connections.
