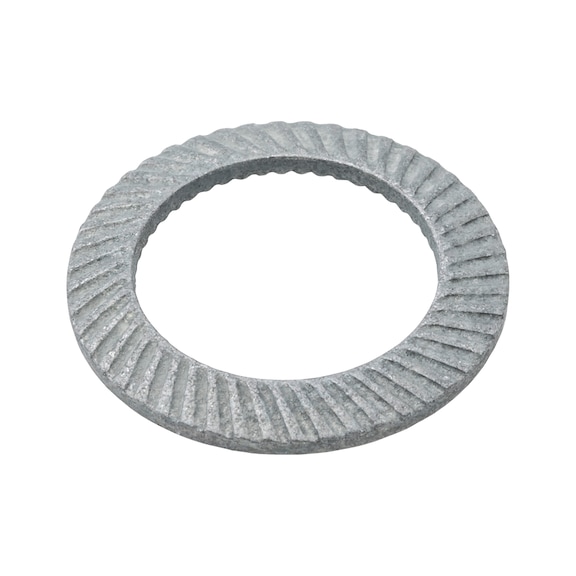

Lock Washer S Spring Steel | Zinc-Plated & Blue Passivated | Belleville Shape | @Pack of 25 | by Wurth
Lock Washer S Spring Steel is designed to prevent loosening in mechanical assemblies, featuring a Belleville shape for optimum friction fit and a zinc-plated surface for enhanced corrosion resistance. Ideal for M14 screw threads, this pack of 25 washers is perfect for applications requiring secure connections under vertical loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer S Spring Steel | Zinc-Plated & Blue Passivated | Belleville Shape | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 493014
Alternatively Known As: Belleville lock washer, spring lock washer, zinc plated lock washer, anti-loosening washer
Technical Specifications
- Suitable for screw thread: M14
- Internal diameter (d1): 15 mm
- Outer diameter (d2): 22 mm
- Height (h1): 2 mm
- Thickness (s1): 1.1 mm
- Material: Spring steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: S
- Dimensions (H x L x W): 2mm x 22mm x 22mm
- Weight: 0.02 kg
Key Features
- Belleville washer shape achieves optimum friction fit with simultaneous form fit via helical gearing
- Prevents connection loosening by supplementing pre-tensioning force
- Mechanically applied zinc coating for corrosion resistance
- Suitable for screw thread M14
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper application and safety.
Applications
- Used with short screws to prevent loosening in mechanical assemblies
- Ideal for connections with loads vertical to the screw axis
- Supplementing pre-tensioning force in fastening applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Lock Washer S Spring Steel Zinc Coated 25 PCS is available for immediate purchase, ideal for mechanical fastening applications requiring secure screw connections.
