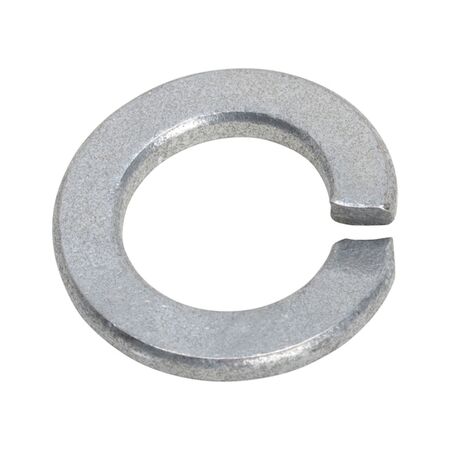

Lock Washer Shape B DIN 127 | Right-Angle Cross-Section | Zinc Coated | @Pack of 50 | by Wurth
Lock Washer Shape B DIN 127 is designed for secure fastening with a right-angle cross-section, ideal for mechanical applications. Made from RoHS-compliant spring steel and featuring a zinc coating for corrosion resistance, this washer is perfect for use with screws of strength class ≤ 5.8, making it a reliable choice for automotive, machinery, and construction industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer Shape B DIN 127 | Right-Angle Cross-Section | Zinc Coated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 44114
Alternatively Known As: Locking washer, spring lock washer, DIN 127 washer, zinc plated lock washer
Technical Specifications
- Suitable for screw thread: M14
- Internal diameter (d1): 14.2 mm
- Outer diameter (d2): 24.1 mm
- Height (h1): 6.0 mm
- Thickness (s1): 3 mm
- Material: Spring steel
- Surface: Zinc plated
- Form: B
- Standards: DIN 127
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.0mm x 24.1mm x 24.1mm
- Weight: 0.05 kg
Key Features
- Right-angle cross-section lock washer, shape B according to DIN 127
- Mechanically applied zinc coating for corrosion resistance
- Suitable for screws with strength class ≤ 5.8
- RoHS-compliant spring steel material
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety compliance.
Applications
- Suitable for use with screws of strength class ≤ 5.8
- Ideal for mechanical fastening applications requiring secure locking washers
- Commonly used in automotive, machinery, and construction industries
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads) for mechanical fastening components
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Available for immediate purchase, ideal for mechanical fastening applications requiring secure locking washers.
