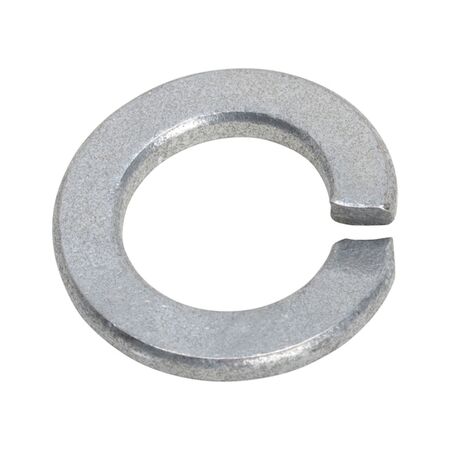

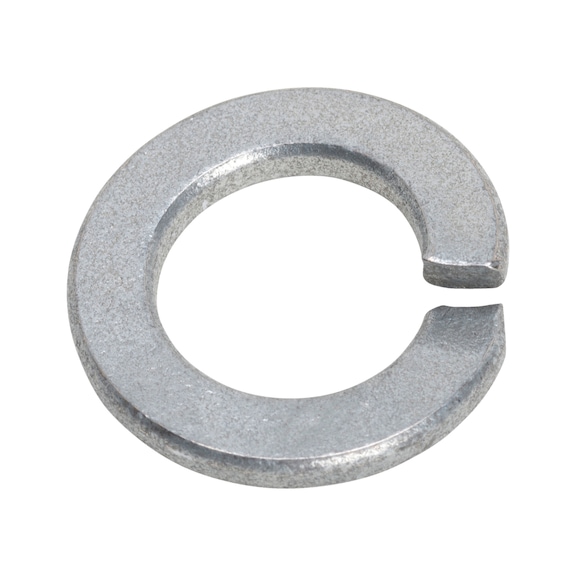

Lock Washer Shape B DIN 127 | Right-Angle Cross-Section | Zinc Coated for Corrosion Resistance | @Pack of 50 | by Wurth
Lock Washer Shape B DIN 127 is designed for secure screw locking in mechanical fastening applications. With a right-angle cross-section and zinc coating for corrosion resistance, it's perfect for general industrial use and complies with DIN 127 standards. Ideal for screws of strength class ≤ 5.8, this washer ensures durability and reliability in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer Shape B DIN 127 | Right-Angle Cross-Section | Zinc Coated for Corrosion Resistance | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 4413
Alternatively Known As: Spring Lock Washer, DIN 127 Washer, Zinc Plated Lock Washer, Shape B Lock Washer
Technical Specifications
- Suitable for screw thread: M3
- Internal diameter (d1): 3.1 mm
- Outer diameter (d2): 6.2 mm
- Height (h1): 1.6 mm
- Thickness (s1): 0.8 mm
- Material: Spring steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: B
- Standards: DIN 127
- Dimensions (H x L x W): 1.6mm x 6.2mm x 6.2mm
- Weight: 0.02 kg
Key Features
- Suitable for screws of strength class ≤ 5.8
- Right-angle cross-section, shape B
- Mechanically applied zinc coating for corrosion resistance
- Complies with DIN 127 standard
Professional Installation Requirements
- No special professional installation required; suitable for manual or mechanical assembly with appropriate screws.
Applications
- Mechanical fastening requiring secure screw locking
- Suitable for screws of strength class ≤ 5.8
- General industrial and maintenance use
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening applications requiring secure locking washers.
