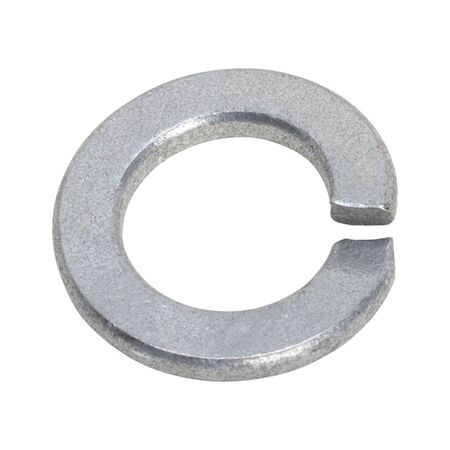

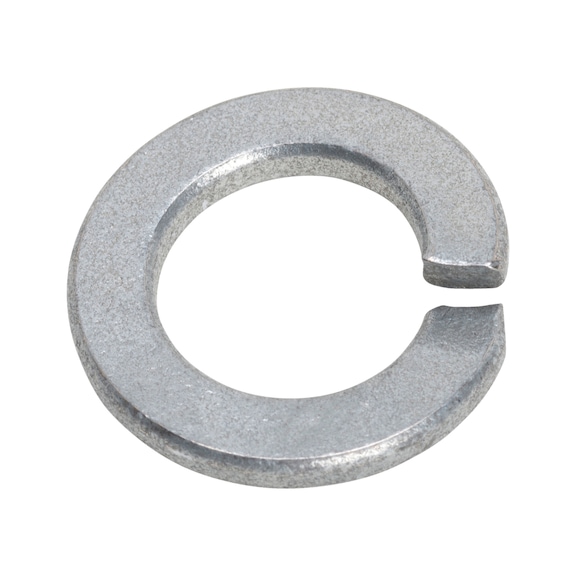

Lock Washer Shape B DIN 127 | Right-Angle Cross-Section | Zinc Coated for Corrosion Resistance | @Pack of 50 | by Wurth
Lock Washer Shape B DIN 127 is designed for secure mechanical fastening, featuring a right-angle cross-section and zinc coating for enhanced corrosion resistance. Ideal for applications requiring reliable locking, this pack of 50 washers is perfect for use with screws of strength class ≤ 5.8, ensuring durability and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer Shape B DIN 127 | Right-Angle Cross-Section | Zinc Coated for Corrosion Resistance | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 4414
Alternatively Known As: Spring Lock Washer, DIN 127 Washer, Zinc Plated Lock Washer, Shape B Lock Washer
Technical Specifications

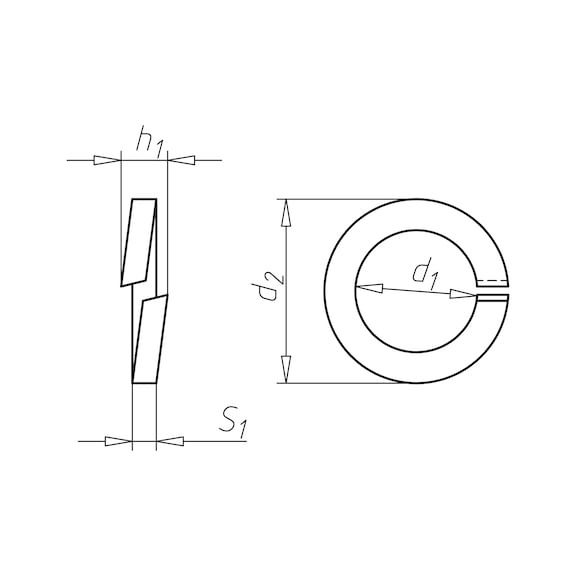

- Suitable for screw thread: M4
- Internal diameter (d1): 4.1 mm
- Outer diameter (d2): 7.6 mm
- Height (h1): 1.8 mm
- Thickness (s1): 0.9 mm
- Material: Spring steel
- Surface: Zinc plated
- Form: B
- Standards: DIN 127
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.8mm x 7.6mm x 7.6mm
- Weight: 0.01 kg
Key Features
- Right-angle cross-section lock washer, shape B
- Mechanically applied zinc coating for corrosion resistance
- Suitable for screws of strength class ≤ 5.8
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Suitable for use with screws of strength class ≤ 5.8
- Ideal for mechanical fastening requiring secure locking washers
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening applications requiring secure locking washers.
