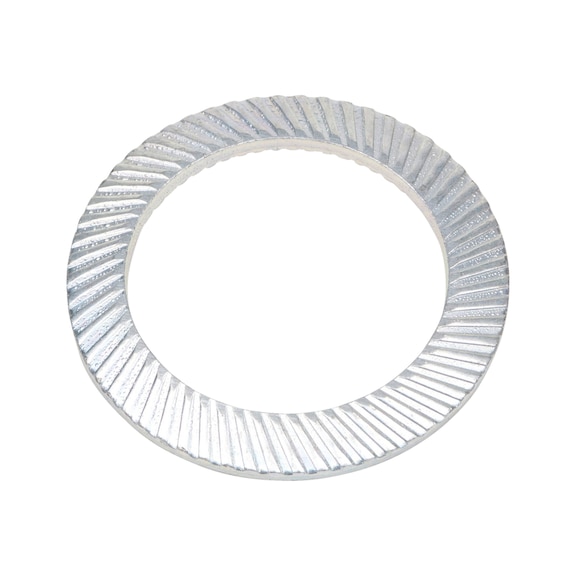

Lock Washer Type S A2 Stainless Steel | Disc Spring Shape | Corrosion Resistant | @Pack of 25 | by Wurth
Lock Washer Type S A2 Stainless Steel is designed to prevent loosening of screw connections under vertical loads, making it ideal for mechanical assemblies. With a disc spring shape for optimum friction fit and made from corrosion-resistant stainless steel, this pack of 25 washers ensures secure fastening in various applications, enhancing durability and compliance with RoHS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer Type S A2 Stainless Steel | Disc Spring Shape | Corrosion Resistant | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 404801050
Alternatively Known As: Spring lock washer, Disc spring washer, Helical lock washer, Stainless steel lock washer
Technical Specifications
- Suitable for screw thread: M5
- Suitable for thread (imperial): 3/16 inch
- Internal diameter (d1): 5.3 mm
- Outer diameter (d2): 9 mm
- Height (h1): 1.2 mm
- Thickness (s1): 0.7 mm
- Material: Stainless steel A2
- Surface: Plain
- Form: S
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.2mm x 9mm x 9mm
- Weight: 0.01 kg
Key Features
- Disc spring shape achieves optimum friction fit
- Simultaneous form fit via helical gearing
- Prevents connection loosening under vertical loads
- Made from stainless steel A2 for corrosion resistance
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Used to prevent loosening of screw connections under vertical loads
- Ideal for use with short screws to supplement pre-tensioning force
- Suitable for mechanical assemblies requiring secure fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from durable stainless steel for long service life reducing waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Lock Washer Type S A2 Stainless Steel 25 PCS is available for immediate purchase, ideal for mechanical and industrial fastening applications.
