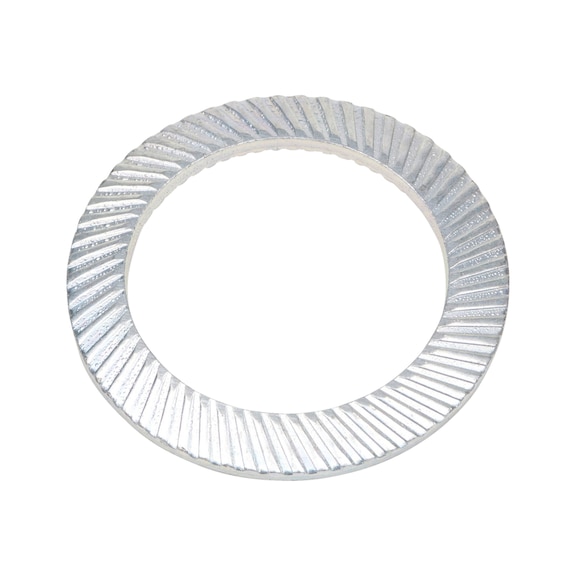

Lock Washer Type S A2 Stainless Steel | Disc Spring Shape | Corrosion Resistant | @Pack of 25 | by Wurth
Lock Washer Type S A2 Stainless Steel is designed to prevent loosening of screw connections under vertical loads, making it ideal for mechanical assemblies. With a unique disc spring shape, it achieves optimum friction fit and is made from corrosion-resistant stainless steel A2, ensuring durability and compliance with RoHS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lock Washer Type S A2 Stainless Steel | Disc Spring Shape | Corrosion Resistant | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 404801100
Alternatively Known As: Locking washer, spring lock washer, disc spring washer, anti-loosening washer
Technical Specifications
- Suitable for screw thread: M10
- Suitable for thread (imperial): 3/8 inch
- Internal diameter (d1): 10.5 mm
- Outer diameter (d2): 16 mm
- Height (h1): 1.6 mm
- Thickness (s1): 1.0 mm
- Material: Stainless steel A2
- Surface: Plain
- Form: S
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.6mm x 16mm x 16mm
- Weight: 0.02 kg
Key Features
- Disc spring shape achieves optimum friction fit with simultaneous form fit via helical gearing
- Prevents connection loosening under vertical loads
- Made from stainless steel A2 for corrosion resistance
- RoHS-compliant
Professional Installation Requirements
- No special professional installation required; suitable for standard mechanical fastening applications.
Applications
- Used to prevent loosening of screw connections under vertical loads
- Ideal for use with short screws to supplement pre-tensioning force
- Suitable for mechanical assemblies requiring secure fastening
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from durable stainless steel for long service life reducing waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Lock Washer Type S A2 Stainless Steel 25 PCS is available for immediate purchase, ideal for mechanical and industrial fastening applications.
