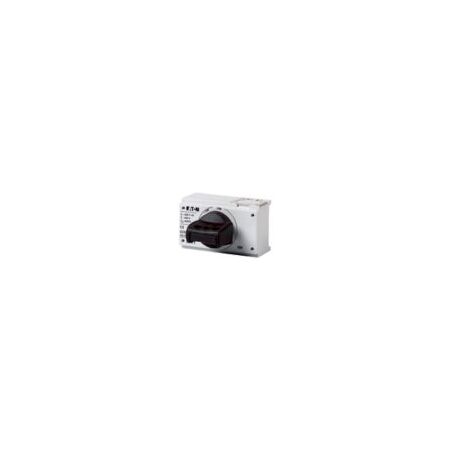

Lockable Rotary Handle for NZM1 Circuit Breaker | Black Color | IP20 Protection | Complete with Rotary Drive by Eaton
Lockable rotary handle for NZM1 circuit breakers, featuring a black color and IP20 protection—ideal for secure electrical installations. Built for power circuit breaker applications, with the ability to use up to 3 padlocks for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lockable Rotary Handle for NZM1 Circuit Breaker | Black Color | IP20 Protection | Complete with Rotary Drive by Eaton
Brand: Eaton
SKU: Y7-260125
Alternatively Known As: Rotary Handle for NZM1 Circuit Breaker, Lockable Circuit Breaker Handle, NZM1-XDV Operating Element
Technical Specifications
- Product Name: Eaton Moeller series NZM operating element
- Catalog Number: 260125
- EAN: 4015082601256
- Product Length/Depth: 80 mm
- Product Height: 54 mm
- Product Width: 90 mm
- Product Weight: 0.195 kg
- Compliances: IEC UL/CSA RoHS conform
- Certifications: CSA (Class No. 1437-01), UL489, UL (Category Control Number DIHS), UL (File No. E140305), UL listed, CE marking, IEC60947, CSA-C22.2 No. 5-09, CSA certified, CSA (File No. 22086)
- Used with: NZM1(-4), PN1(-4), N(S)1(-4)
- Features: Lockable Standard: black / gray
- Color: Black
- Fitted with: Padlock
- Frame: NZM1
- Activation type: Rotary handle
- Suitable for: Power circuit breaker Switch disconnector
- Locking facility: Lockable on the 0 position on the switch using up to 3 padlocks
- Type: Accessory Rotary handle on circuit-breaker
- Special features: Complete with rotary drive, Can be combined with insulating surround MODAN, Handle position detection by wire release can be retrofitted, Makes it possible to operate the switch with a rotational movement and provides locking facilities
- Degree of protection / NEMA enclosure type: IP20 4X. 12
- Dimensions (H x L x W): 54mm x 80mm x 90mm
- Weight: 0.195 kg
Key Features
- Lockable rotary handle on the 0 position using up to 3 padlocks
- Complete with rotary drive
- Can be combined with insulating surround MODAN
- Handle position detection by wire release can be retrofitted
- Operates the switch with a rotational movement and provides locking facilities
- Black color
- Degree of protection: IP20, 4X, 12
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with circuit breakers.
Applications
- Used with NZM1(-4), PN1(-4), N(S)1(-4) power circuit breakers
- Suitable for power circuit breaker switch disconnector applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables secure and reliable operation of circuit breakers, contributing to electrical safety and energy efficiency in installations.
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton NZM1-XDV Molded Case Circuit Breaker Rotary Handle is available for immediate purchase, ideal for electrical switchgear applications requiring secure and lockable operation.
