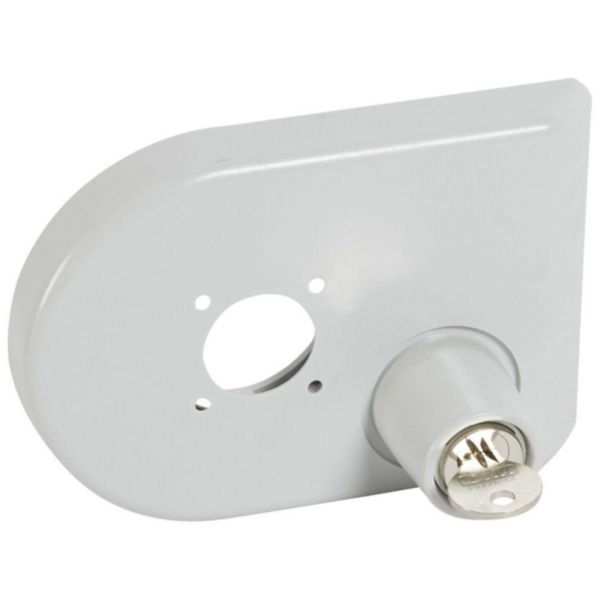

Locking Accessory and Flat Key for DPX Vari-Depth Rotary Handle | Mechanical Locking | IEC 60947-3 Compliant | Integrated Padlock | @Each of 1 | by Legrand
The Locking Accessory and Flat Key for DPX Vari-Depth Rotary Handle is a mechanical locking solution designed for DPX IS1600 isolating switches. It features a key barrel and star key N° HBA90GPS6149, ensuring enhanced safety with an integrated padlock. Ideal for qualified electricians, this accessory is perfect for on-load circuit breaking and visible isolation in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Locking Accessory and Flat Key for DPX Vari-Depth Rotary Handle | Mechanical Locking | IEC 60947-3 Compliant | Integrated Padlock | @Each of 1 | by Legrand
Brand: Legrand
SKU: 026294
Alternatively Known As: DPX Vari-Depth Rotary Handle Locking Accessory, DPX Locking Key, ABA90 GEL6149 Locking Kit
Technical Specifications
- Type: Mechanical locking accessory
- Compatible with DPX IS1600 isolating switches (800 to 1600 A)
- Conforms to IEC 60947-3
- Category of use: AC 23 A
- Includes key barrel and star key N° HBA90GPS6149
- Padlock integrated in handle
- Connection: Cage terminals
- Supplied with terminal shields
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Mechanical locking accessory with key barrel and star key N° HBA90GPS6149
- Compatible with DPX vari-depth rotary handles
- Padlock integrated in the handle for enhanced safety
- Connection with cage terminals
- Supplied with terminal shields
- Conforms to IEC 60947-3 standard
- Category of use AC 23 A
- Accepts electrical auxiliaries
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper mechanical locking integration.
Applications
- Used with DPX IS1600 isolating switches (800 to 1600 A)
- Suitable for on-load circuit breaking with visible isolation
- Installation in XL³ enclosures on plates
- Mechanical locking for modular switches and circuit breakers
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances safety and reliability of electrical installations, reducing risk of accidental operation and electrical faults
Warranty Information
Legrand standard warranty applies, typically 1 year against manufacturing defects.
Available Now
The Legrand Locking Accessory and Flat Key for DPX Vari-Depth Rotary Handle ABA90 GEL6149 is available for immediate purchase, ideal for enhancing safety in electrical switchboards and power cabinets.
