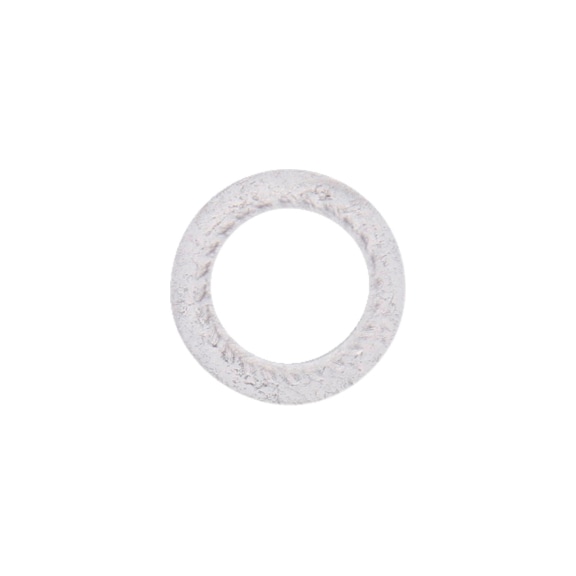

Locking Disc Spring Washer Z Shape | Spring Steel Hardened | Zinc-Flake Coated | @Pack of 25 | by Wurth
Locking Disc Spring Washer Z Shape is designed for securing cheese head and hexagon socket screws, featuring a spring steel hardened construction and zinc-flake coating for enhanced corrosion resistance. Ideal for mechanical assemblies requiring friction locking, this washer protects counter surfaces from damage during installation, ensuring a reliable and durable fastening solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Locking Disc Spring Washer Z Shape | Spring Steel Hardened | Zinc-Flake Coated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 401012
Alternatively Known As: Z Spring Washer, Locking Disc Washer, Serrated Lock Washer, Spring Lock Washer, Zinc Flake Coated Washer
Technical Specifications
- Suitable for screw thread: M12
- Internal diameter (d1): 12.4 mm
- Outer diameter (d2): 18.3 mm
- Height (h1): 2.4 mm
- Thickness (s1): 1.8 mm
- Material: Spring steel
- Vickers hardness: 420-510 HV
- Surface finish: Zinc-flake silver coating
- Corrosion protection period: 720 hours
- Form: Z shape
- Suitable for: Cylinder and hexagon socket screws
- Locking device operating principle: Serrated lock washer
- Locking function: Embedding locking device
- Dimensions (H x L x W): 2.4mm x 18.3mm x 18.3mm
- Weight: 0.02 kg
Key Features
- Type Z shape designed for cheese head and hexagon socket screws
- Friction locking due to spring force
- Mechanical interlock via specific surface stamping
- Protects counter surface from damage as washer does not turn during installation
- Minimal tightening torque distribution
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper torque and locking function.
Applications
- Suitable for securing cheese head and hexagon socket screws
- Used in mechanical assemblies requiring friction locking and screw retention
- Ideal for applications needing protection of counter surfaces from damage
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Corrosion protection extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Locking Disc Spring Washer Z Shape is available for immediate purchase, ideal for industrial and mechanical fastening applications.
