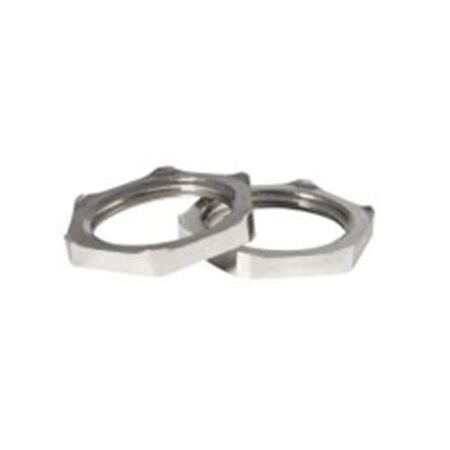

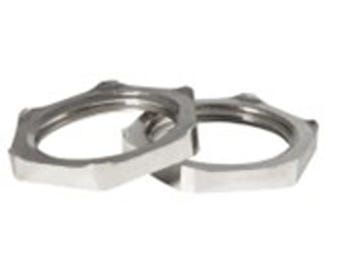

Locknut for GU20EMC/L | Nickel-Plated Brass | IP68 Rated | Vibration Resistant by Cabac
The Cabac Locknut for GU20EMC/L is a nickel-plated brass locknut designed to secure EMC cable glands in metal enclosures, providing superior corrosion resistance, optimal electrical contact, and vibration resistance for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Locknut for GU20EMC/L
Brand: Cabac
SKU: LNM20EMC
Alternatively Known As: EMC Locknut, Cable Gland Locknut, Nickel-Plated Brass Locknut, EMC Gland Locknut
Technical Specifications
- Material: Lead-free brass (CuZn21Si3P), nickel-plated
- Internal Thread: Metric, as per EN 60423
- Operational Temperature Range: -60°C to +200°C
- Designed to cut through paint and powder coatings for effective earthing
- Compatible with CABAC Brass EMC Metric Glands to meet IP68 rating
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.05 kg
Key Features
- Nickel-plated, lead-free brass construction for superior corrosion resistance
- Sharp barbs designed to cut through paint layers or powder coatings for reliable earthing
- Ensures optimal electrical contact and equipotential bonding
- Enhanced vibration resistance due to secure tightening
- Compatible with CABAC Brass EMC Metric Glands to achieve IP68 environmental protection
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure secure tightening and proper equipotential bonding.
Applications
- Industrial applications requiring secure EMC cable gland installation
- Metal enclosures needing optimal electrical contact and equipotential bonding
- Environments requiring IP68 rated cable gland assemblies
Standards & Compliance
- Meets EN 60423 for internal thread standards
Environmental Benefits
- Lead-free brass material reduces environmental toxicity
- Durable corrosion-resistant plating extends product lifespan, reducing waste
- Supports IP68 rating for environmental protection, preventing ingress and damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Locknut for GU20EMC/L is available for immediate purchase, ideal for industrial and electrical cable gland applications requiring secure EMC connections.
