Locknut for GU25EMC/L | Nickel-Plated Brass | Corrosion & Vibration Resistant | -60°C to +200°C by Cabac

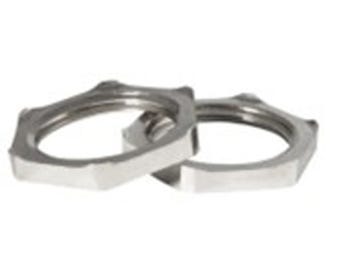

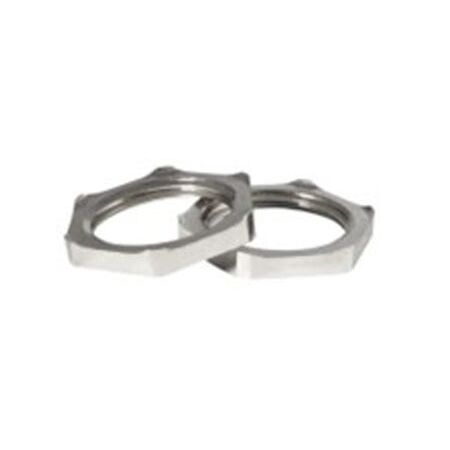

The Cabac Locknut for GU25EMC/L is a nickel-plated brass locknut designed to secure EMC cable glands in metal enclosures, providing superior corrosion resistance, optimal electrical contact, and enhanced vibration resistance for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Locknut for GU25EMC/L
Brand: Cabac
SKU: LNM25EMC
Alternatively Known As: EMC Locknut, Cable Gland Locknut, Nickel-Plated Brass Locknut, EMC Gland Locknut
Technical Specifications
- Material: Lead-free brass (CuZn21Si3P), nickel-plated
- Internal Thread: Metric, as per EN 60423
- Designed to cut through paint and powder coatings for earthing
- Compatible with CABAC Brass EMC Metric Glands
- Operational Temperature: -60°C to +200°C
- Meets EN 60423 internal thread standards
- Dimensions (H x L x W): 10mm x 25mm x 25mm
- Weight: 0.05 kg
Key Features
- Nickel-plated, lead-free brass construction for superior corrosion resistance
- Sharp barbs designed to cut through paint layers or powder coatings for reliable earthing
- Ensures optimal electrical contact and equipotential bonding
- Enhanced vibration resistance due to secure installation
- Contributes to achieving IP68 rating when used with CABAC Brass EMC Metric Glands
- Operational temperature range from -60°C to +200°C
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper tightening and secure electrical contact.
Applications
- Industrial applications requiring secure EMC cable gland installations
- Metal enclosures needing optimal electrical contact and equipotential bonding
- Environments requiring enhanced vibration resistance and corrosion protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Lead-free brass material reduces environmental impact
- Durable construction extends product life, reducing waste
- Supports IP68 rating for environmental protection in harsh conditions
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Locknut for GU25EMC/L is available now for immediate purchase. Ideal for industrial and commercial electrical installations requiring secure EMC cable gland connections.
