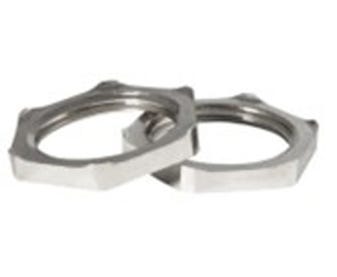

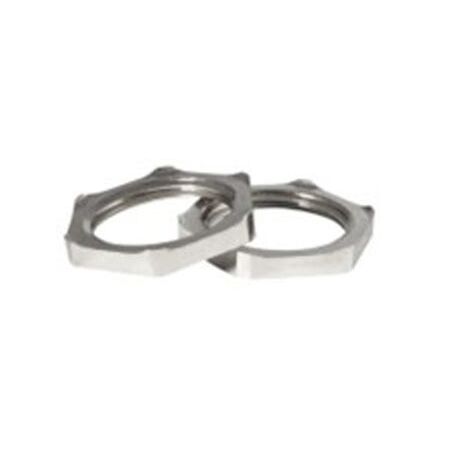

Locknut for GU32EMC/L | Nickel-Plated Brass | IP68 Rated | Vibration Resistant by Cabac
The Cabac Locknut for GU32EMC/L is a nickel-plated brass locknut designed to secure EMC cable glands in metal enclosures, providing superior corrosion resistance, optimal electrical contact, and enhanced vibration resistance. Compatible with CABAC Brass EMC Metric Glands to achieve IP68 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Locknut for GU32EMC/L
Brand: Cabac
SKU: LNM32EMC
Alternatively Known As: EMC Locknut, Cable Gland Locknut, Nickel-Plated Brass Locknut, EMC Cable Gland Nut
Technical Specifications
- Material: Lead-free brass (CuZn21Si3P), nickel-plated
- Internal Thread: Metric, as per EN 60423
- Operational Temperature Range: -60°C to +200°C
- Designed to cut through paint and powder coatings for effective earthing
- Compatible with CABAC Brass EMC Metric Glands for IP68 rating
- Dimensions (H x L x W): 10mm x 32mm x 32mm
- Weight: 0.05 kg
Key Features
- Nickel-plated, lead-free brass construction for superior corrosion resistance
- Sharp barbs designed to cut through paint layers or powder coatings for optimal electrical contact
- Ensures secure tightening of EMC cable glands
- Enhances vibration resistance for stable installations
- Contributes to achieving IP68 rating when used with CABAC Brass EMC Metric Glands
- Operational temperature range from -60°C to +200°C
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper tightening and secure electrical contact.
Applications
- Industrial applications requiring secure EMC cable gland installation
- Metal enclosures needing reliable equipotential bonding and earthing
- Environments requiring IP68 rated cable gland assemblies
Standards & Compliance
- Meets EN 60423 for internal thread standards
Environmental Benefits
- Lead-free brass material reduces environmental toxicity
- Durable corrosion-resistant design extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Locknut for GU32EMC/L is available for immediate purchase, ideal for industrial EMC cable gland applications requiring secure and corrosion-resistant connections.
