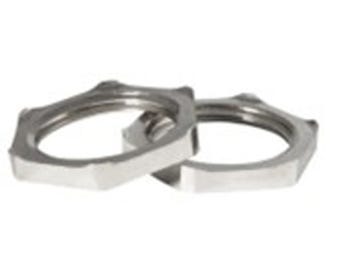

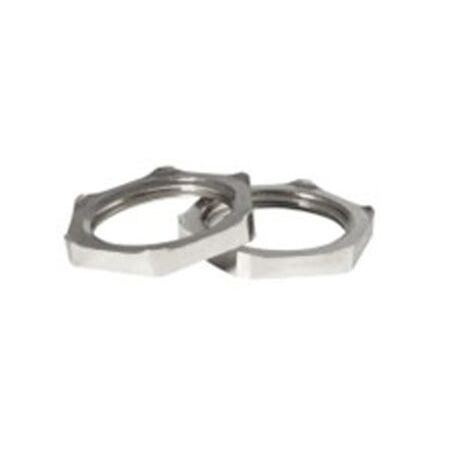

Locknut for GU63EMC/L | Nickel-Plated Brass | IP68 Rated | Vibration Resistant by Cabac
The Cabac Locknut for GU63EMC/L is a nickel-plated brass locknut designed to secure EMC cable glands in metal enclosures, providing superior corrosion resistance, optimal electrical contact, and vibration resistance for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Locknut for GU63EMC/L
Brand: Cabac
SKU: LNM63EMC
Alternatively Known As: EMC Locknut, Cable Gland Locknut, Nickel-Plated Brass Locknut, EMC Gland Locknut
Technical Specifications
- Material: Lead-free brass (CuZn21Si3P), nickel-plated
- Internal Thread: Metric, as per EN 60423
- Operational Temperature Range: -60°C to +200°C
- Designed to cut earthing path through paint or powder coatings
- Compatible with CABAC Brass EMC Metric Glands for IP68 rating
- Dimensions (H x L x W): 10mm x 30mm x 30mm
- Weight: 0.05 kg
Key Features
- Cutting edges designed for secure tightening of EMC cable glands
- Sharp barbs cut through paint layers or powder coatings for reliable earthing
- Ensures optimal electrical contact and equipotential bonding
- Enhanced vibration resistance due to secure installation
- Corrosion-resistant nickel-plated lead-free brass construction
- Contributes to achieving IP68 rating when used with CABAC Brass EMC Metric Glands
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure secure tightening and proper equipotential bonding.
Applications
- Industrial applications requiring secure EMC cable gland installations
- Metal enclosures needing optimal electrical contact and equipotential bonding
- Environments requiring IP68 rated cable gland assemblies
Standards & Compliance
- Meets EN 60423 for internal thread standards
Environmental Benefits
- Lead-free brass material reduces environmental impact
- Durable corrosion-resistant design extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac Locknut for GU63EMC/L is available for immediate purchase, ideal for industrial EMC cable gland applications requiring high corrosion resistance and IP68 protection.
