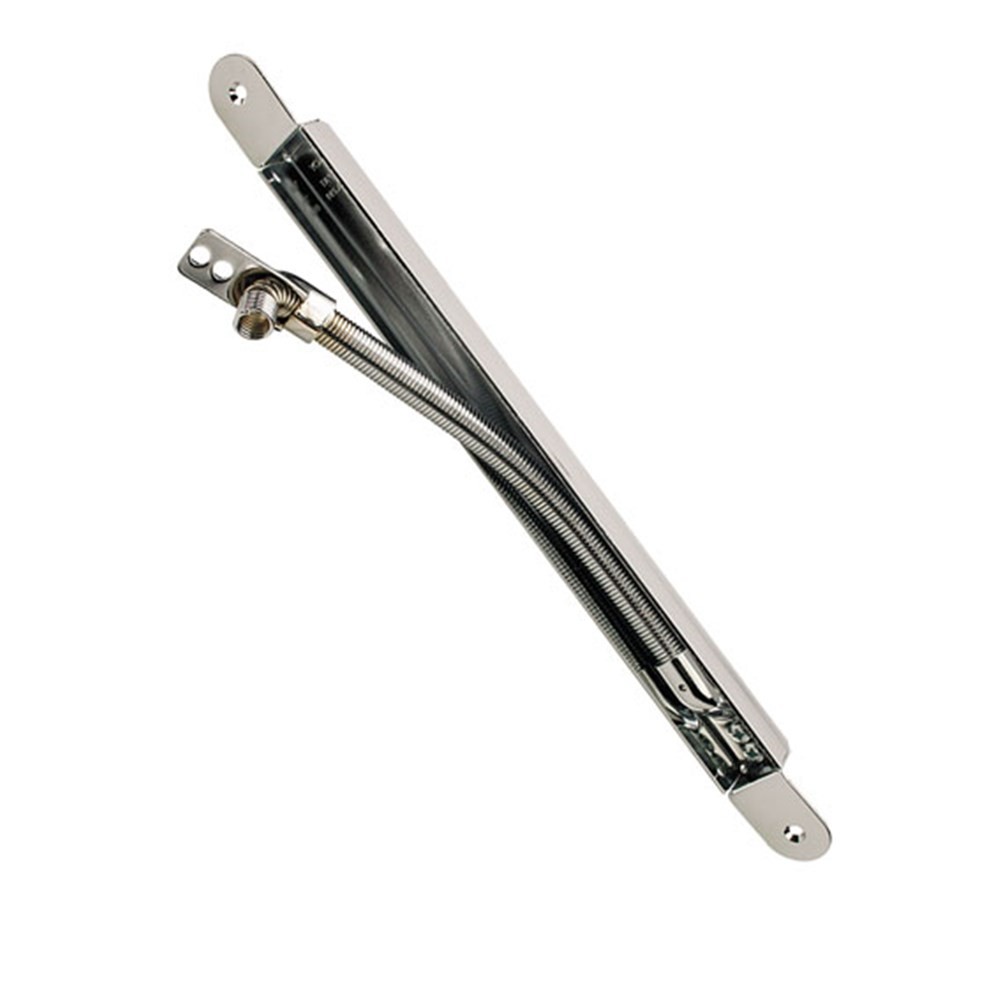

LOCKWOOD 270MM Power Cable LC8810 | Vandal-Resistant | Fire Rated 4 Hours | Concealed Design | by Dicker Data
The LOCKWOOD 270MM Power Cable LC8810 is a vandal-resistant power transfer lead cover designed for secure cable management in fire-rated door assemblies. With a fire rating of up to 4 hours and a concealed design when the door is closed, it accommodates cables up to 8mm in diameter. Ideal for commercial and residential applications, this durable solution enhances safety and compliance with fire safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOCKWOOD 270MM Power Cable LC8810 | Vandal-Resistant | Fire Rated 4 Hours | Concealed Design | by Dicker Data
Brand: Dicker Data
SKU: EA280
Alternatively Known As: Power Transfer Lead, Door Cable Transfer Lead, Fire Rated Cable Cover
Technical Specifications
- Suitable for cables up to 8mm diameter
- Vandal-resistant chrome plated steel flexible cover
- Concealed design when door is closed
- Fire rated up to 4 hours according to AS1905.1 2005 Part 1

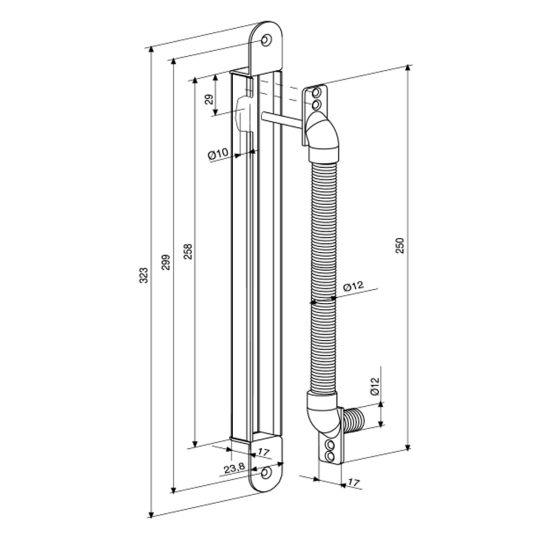

- Dimensions (H x L x W): 30mm x 270mm x 270mm
- Weight: 0.5 kg
Key Features
- Shorter unit designed for hinged doors opening to 90° (max 120°)
- Accommodates cable up to 8mm diameter
- Vandal-resistant chrome plated steel flexible construction
- Concealed when door is closed
- Fire rated up to 4 hours on fire door assemblies per AS1905.1 2005
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure compliance with fire safety standards and proper fitting.
Applications
- Suitable for hinged doors opening up to 90° (maximum 120°)
- Used in fire door assemblies requiring up to 4 hours fire resistance
- Ideal for secure wire transfer between door and door frame
Standards & Compliance
- Complies with AS1905.1 2005 – Fire resistant door sets
Environmental Benefits
- Durable materials reduce need for frequent replacement
- Fire resistance enhances building safety and reduces fire damage impact
Warranty Information
Standard manufacturer warranty applies; please refer to Dicker Data for details.
Available Now
The LOCKWOOD 270MM Power Cable LC8810 Transfer Lead Cover is available for immediate purchase, ideal for fire-rated door assemblies and secure cable management in commercial and residential buildings.
