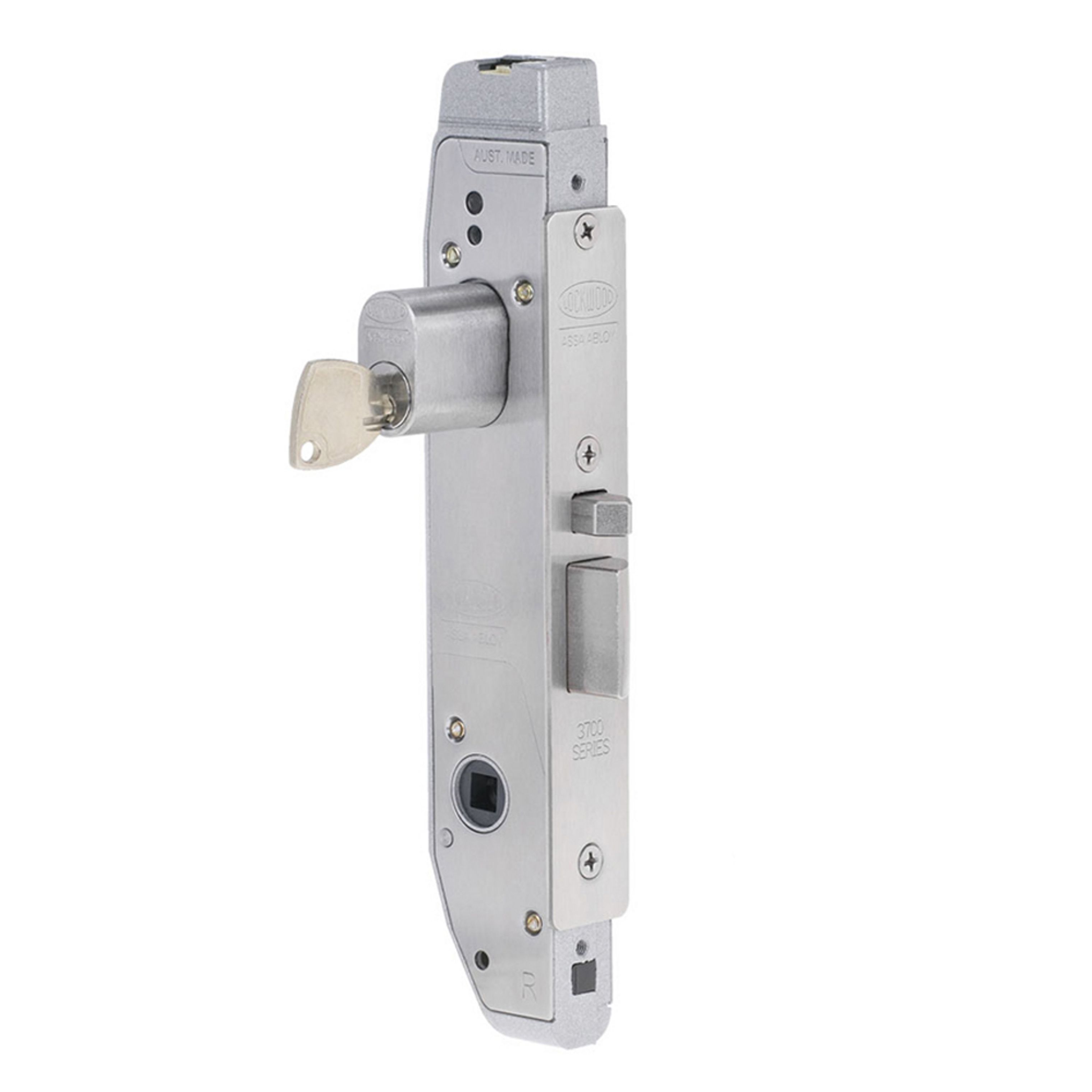

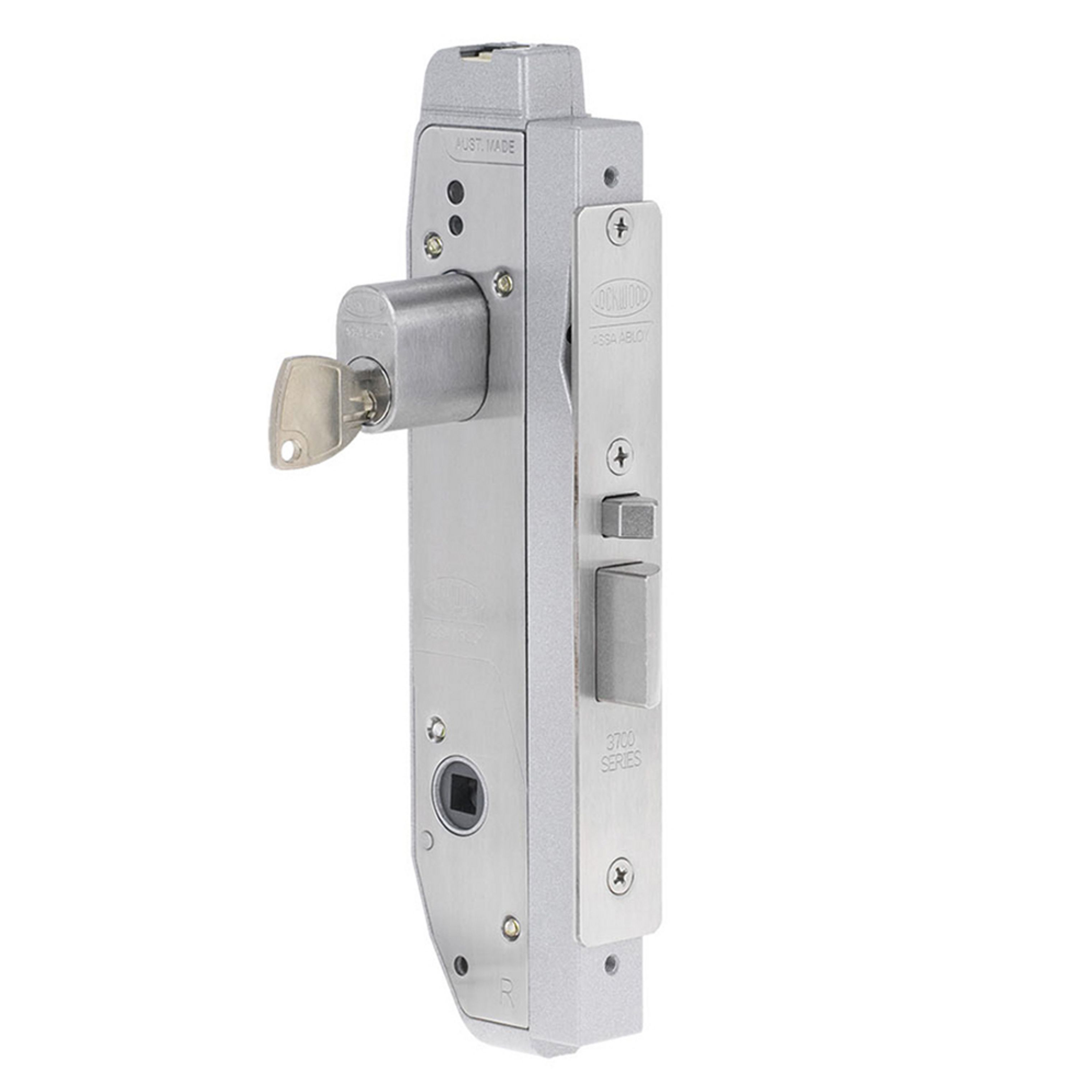

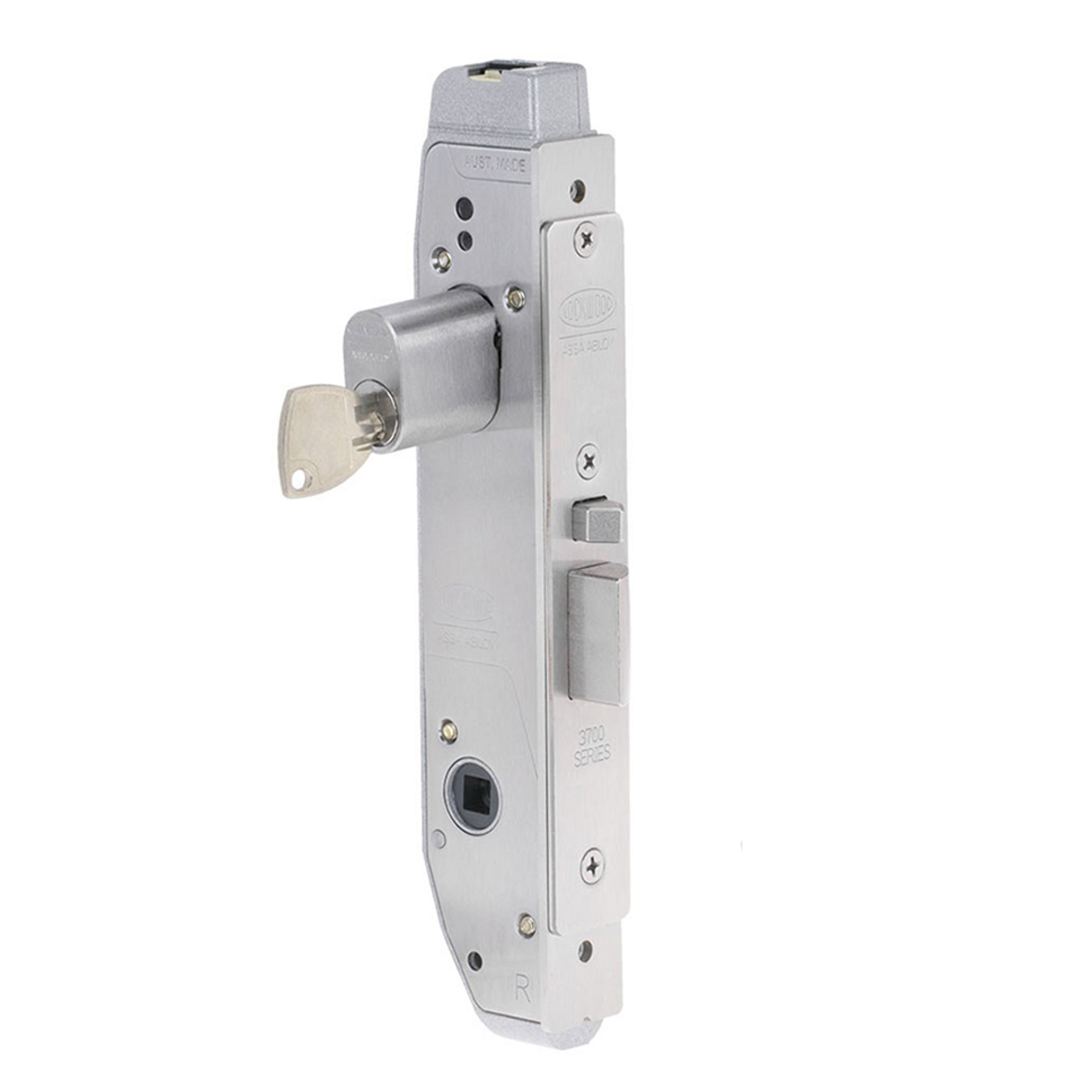

Lockwood 3782EL Series 9 Pin Adaptor | 9-28VDC Operation | Durable Zinc Alloy | by Lockwood
The Lockwood 3782EL Series 9 Pin Adaptor is designed for seamless retrofitting of 3582EL electric mortice locks, operating efficiently on 9-28VDC with a maximum current of 300mA. Built for commercial applications, this adaptor features a robust zinc alloy case and stainless steel chassis, ensuring durability and compliance with Australian Lock Standards for security and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 9 – 28VDC, 300mA MAX (20mA continuous if LEDs are activated)
- Monitoring: Key override (NC), Deadlatch (NC), Door Position (NC), REX (NO/NC), Lock Status (NC) – all 30VDC 50mA MAX
- Environment: Operating temperature -15 to 60ºC
- Case/Cover: High purity zinc alloy with stainless steel chassis plates
- Backset options: 23mm, 25.4mm, 30mm, 38mm
- Cabling: 3.6m cable with 12 pin connector and water deflecting boot
- Recommended cabling: 8AWG (0.82mm²) cable runs up to 30m
- Latch Bolts: Stainless steel, 15mm size with auxiliary deadlatch bolt
- Cylinder Retaining Pin: Hard-drawn spring steel wire, corrosion protected
- Door Thickness: Metal 35-50mm, Timber 32-50mm (timber fixing kit available)
- Security: Complies with AS-4145.2-2008 Level S7 and S8 with appropriate fittings
- Durability: Complies with AS-4145.2-2008 Level D8
- Anti-Corrosion: Complies with AS-4145.2-2008 Level C6 (168 hours)
- Cylinder: Requires Lockwood oval shaped brass cylinders with bump resistant five pin tumbler mechanism
- Standard Finish: Stainless Steel SS
- Extended Cylinders: Modular extensions available for thicker doors
- Rebate Kits: Available for 13mm rebate, suitable for 30mm and 38mm backset locks
- Dimensions (H x L x W): 80mm x 40mm x 150mm
- Weight: 1.5 kg
Key Features
- High performance electric mortice lock designed and manufactured in Australia
- Compatible with Lockwood 4800 and 5800 Series Furniture
- Operates on 9 – 28VDC with 300mA max current
- Includes monitoring for key override, deadlatch, door position, REX, and lock status
- Durable zinc alloy case with stainless steel chassis plates
- Reversible latch bolts for left or right hand doors, opening in or out
- Conforms to Australian Lock Standard AS-4145.2-2008 for physical security, durability, and anti-corrosion
- Suitable for metal doors 35-50mm thick and timber doors 32-50mm thick
- Supplied with 3.6m cable with 12 pin connector and water deflecting boot
Professional Installation Requirements
- Professional installation by a qualified locksmith or security hardware specialist is recommended to ensure compliance with security standards and proper integration with access control systems.
Applications
- Commercial narrow stile hinged doors
- Single-action escape doors
- Integration with electronic access control systems
- Use with push buttons, intercom systems, key switches, keypads, or card readers
Standards & Compliance
- Complies with AS-4145.2-2008 Australian Lock Standard for physical security, durability, and corrosion resistance
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Energy efficient operation with low current consumption
- Corrosion resistant materials extend product lifespan
Warranty Information
Warranty details available upon request from Lockwood, typically includes coverage against manufacturing defects.
Available Now
The Lockwood 3782EL Series 9 Pin Adaptor to Retrofit 3582EL is available for immediate purchase, ideal for commercial security door upgrades and retrofitting existing electric mortice locks.
