LOCKWOOD EL110 Cabinet Lock | 12VDC Fail Secure | Low Current Consumption | Robust Aluminium Construction | by Dicker Data

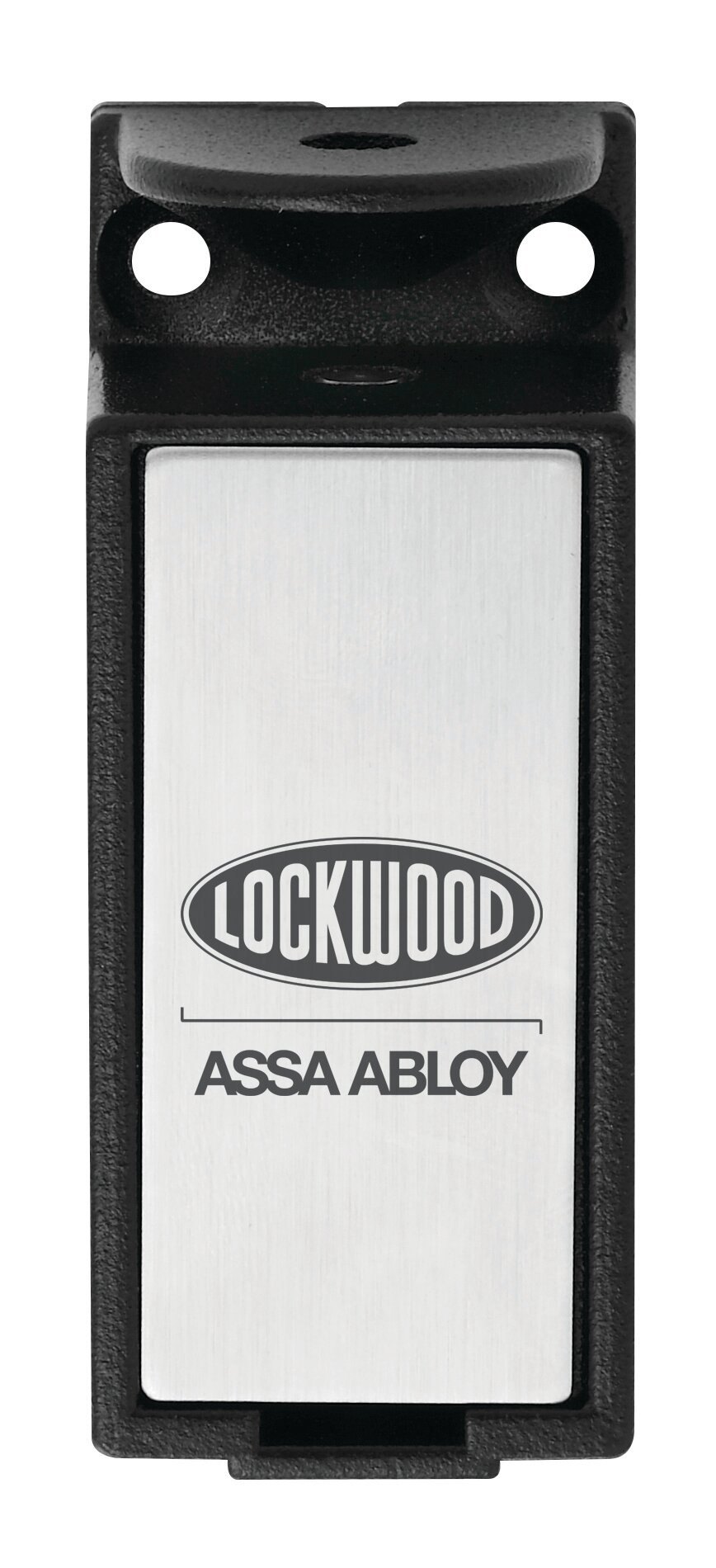

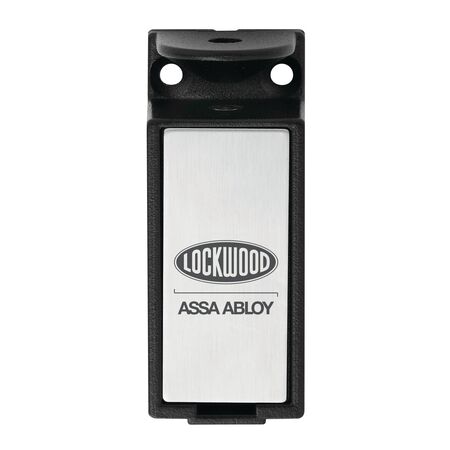

The LOCKWOOD EL110 Cabinet Lock is designed for secure cabinet locking, featuring a 12VDC fail secure mechanism and low current consumption of just 187mA. Built with robust cast aluminium, it ensures durability and reliability in commercial and industrial applications. Ideal for swing or sliding cabinet doors, this lock is perfect for those seeking a dependable locking solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOCKWOOD EL110 Cabinet Lock | 12VDC Fail Secure | Low Current Consumption | Robust Aluminium Construction | by Dicker Data
Brand: Dicker Data
SKU: EL110-2
Alternatively Known As: Electric Cabinet Lock, Fail Secure Cabinet Lock, 12V Cabinet Lock, EL110 Lock
Technical Specifications
- Voltage: 12Vdc
- Current: 187mA @ 12Vdc
- Holding force: 150kg
- Cycle tested to 1,000,000 operations
- Operational temperature range: -20°C to +60°C
- Body: Cast Aluminium Construction
- Monitoring: None
- Solenoid rated for continuous use

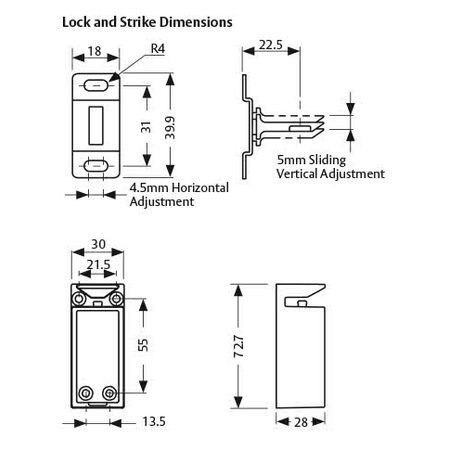

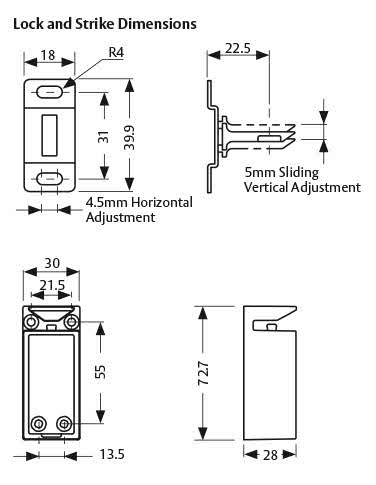

- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 1.2 kg
Key Features
- Fail safe/fail secure changeable on site
- Flexible alignment with 5mm XY adjustment after installation
- Low current consumption: 187mA @ 12Vdc
- Self latching in fail secure mode
- Solenoid rated for continuous use
- Robust cast aluminium construction
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper alignment and secure mounting.
Applications
- Cabinet locking
- Swing or sliding cabinet doors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low current consumption reduces energy usage
- Durable construction extends product lifespan, reducing waste
Warranty Information
TRICARE® 5 Year Warranty
Available Now
The LOCKWOOD EL110 Cabinet Lock 12VDC Fail Secure Non Monitored is available now for immediate purchase. Ideal for secure cabinet locking in commercial and industrial applications.
