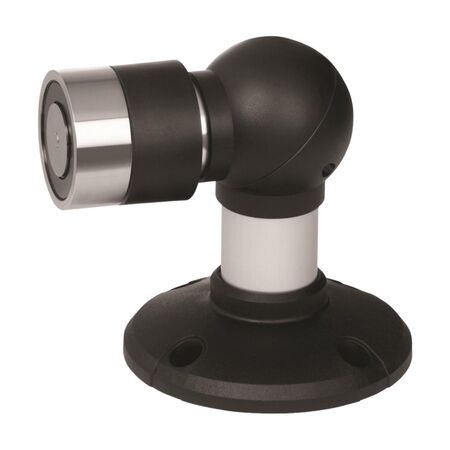

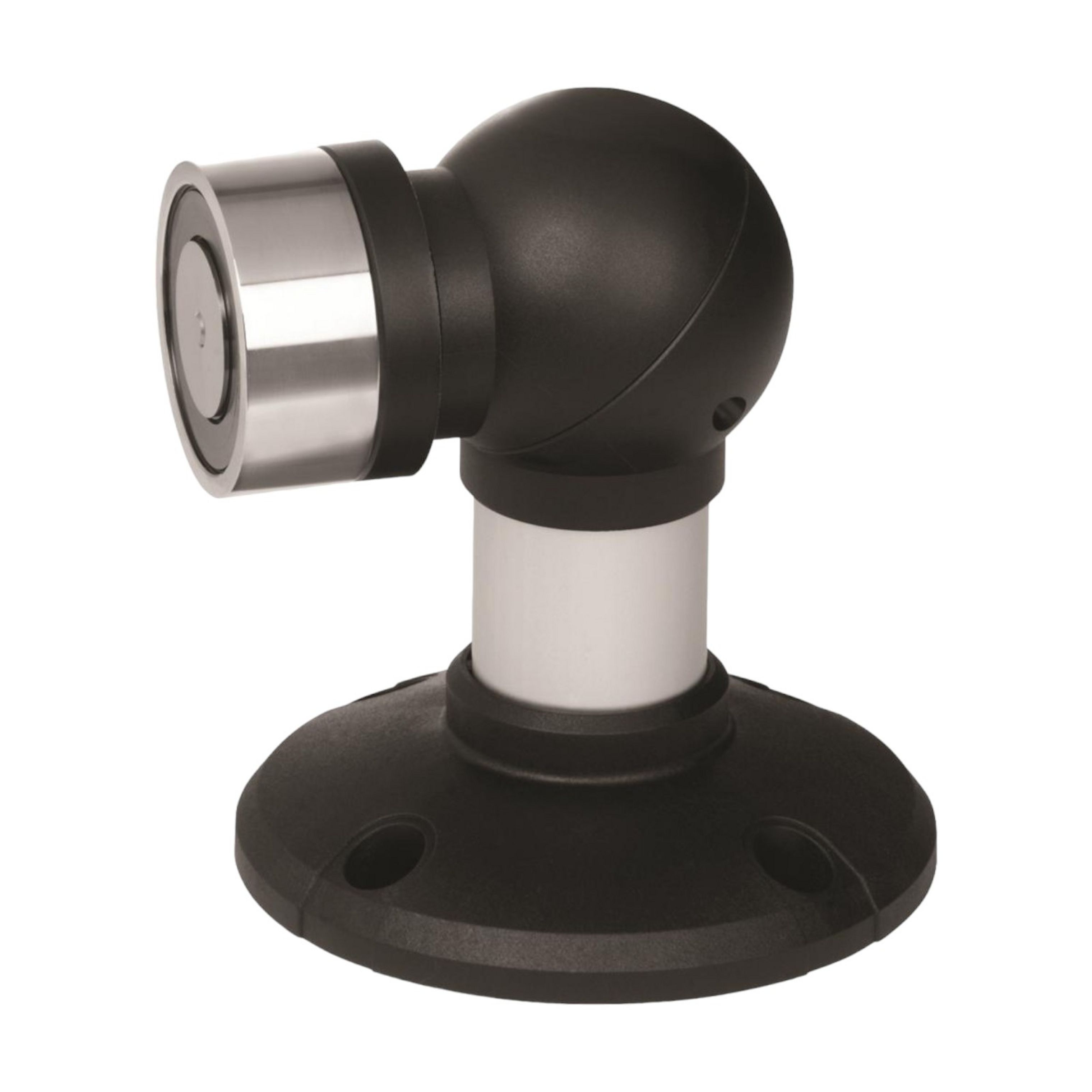

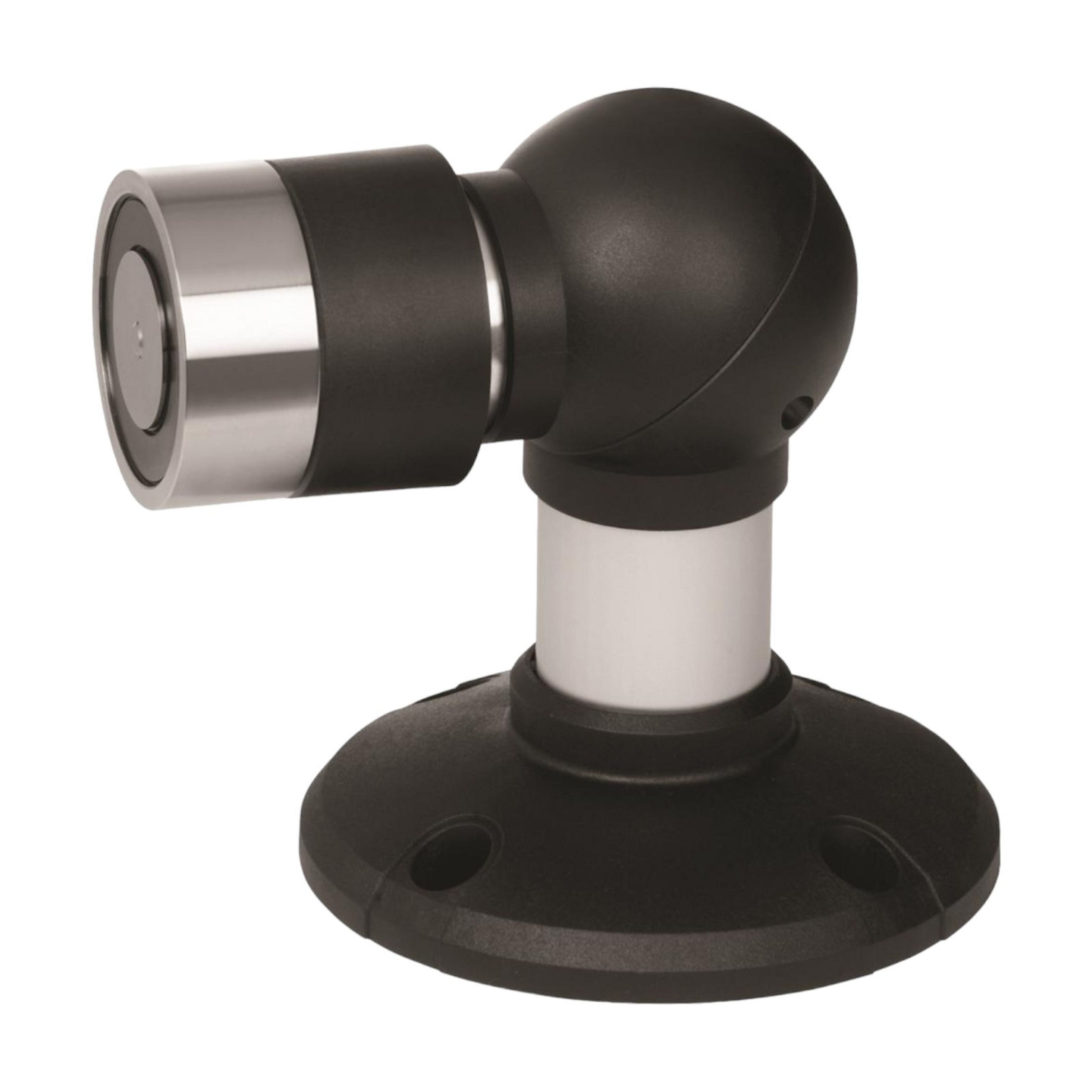

LOCKWOOD EM800 Hold Bracket | Integrated Interrupter Push-Button | 150 kg Holding Force | Soft Close Shock Absorbers | by Lockwood
The LOCKWOOD EM800 Hold Bracket is designed for fire safety and door hold open applications, featuring an integrated interrupter push-button and a holding force of 150 kg. Ideal for commercial and healthcare environments, this bracket ensures silent operation with soft close shock absorbers, making it perfect for hospitals and other sensitive areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOCKWOOD EM800 Hold Bracket | Integrated Interrupter Push-Button | 150 kg Holding Force | Soft Close Shock Absorbers | by Lockwood
Brand: Lockwood
SKU: EMHOB-1
Alternatively Known As: Hold Open Magnet, Door Hold Open Bracket, EM800 Hold Open Device
Technical Specifications
- Wall & Floor Mount: Yes
- Integrated Interrupter Push-Button: Yes
- Shock Absorber: Yes
- Holding Force: 150 kg
- Voltage: 24vDC
- Current: 20mA
- Operating Temperature: 0-50°C
- Floor Spacing: 110mm
- Wall Spacing: 215mm
- Continuous Duty: 100% ED
- Dimensions (H x L x W): 50mm x 110mm x 215mm
- Weight: 1.5 kg
Key Features
- Works as standalone or integrated with fire detection systems for automatic release
- Integrated interrupter push-button for manual door operation
- Soft close shock absorbers for silent operation, ideal for hospitals
- Wall and floor mountable
- Holding force of 150 kg
- Continuous duty rated at 100% ED
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper integration with fire detection systems and optimal performance.
Applications
- Fire doors that need to close upon fire signal
- Non-fire doors that need to be held open
- Doors requiring hold open for extended periods, such as with cabin hooks
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Reduces energy waste by holding doors open only when necessary
- Supports fire safety systems to prevent damage and reduce environmental impact from fire incidents
Warranty Information
Standard manufacturer warranty applies. Please refer to Lockwood for specific warranty details.
Available Now
The Lockwood EM800 Hold Bracket is available for immediate purchase, ideal for fire safety and door hold open applications in commercial and healthcare environments.
