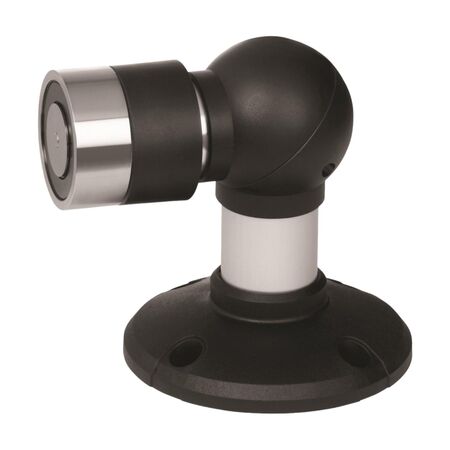

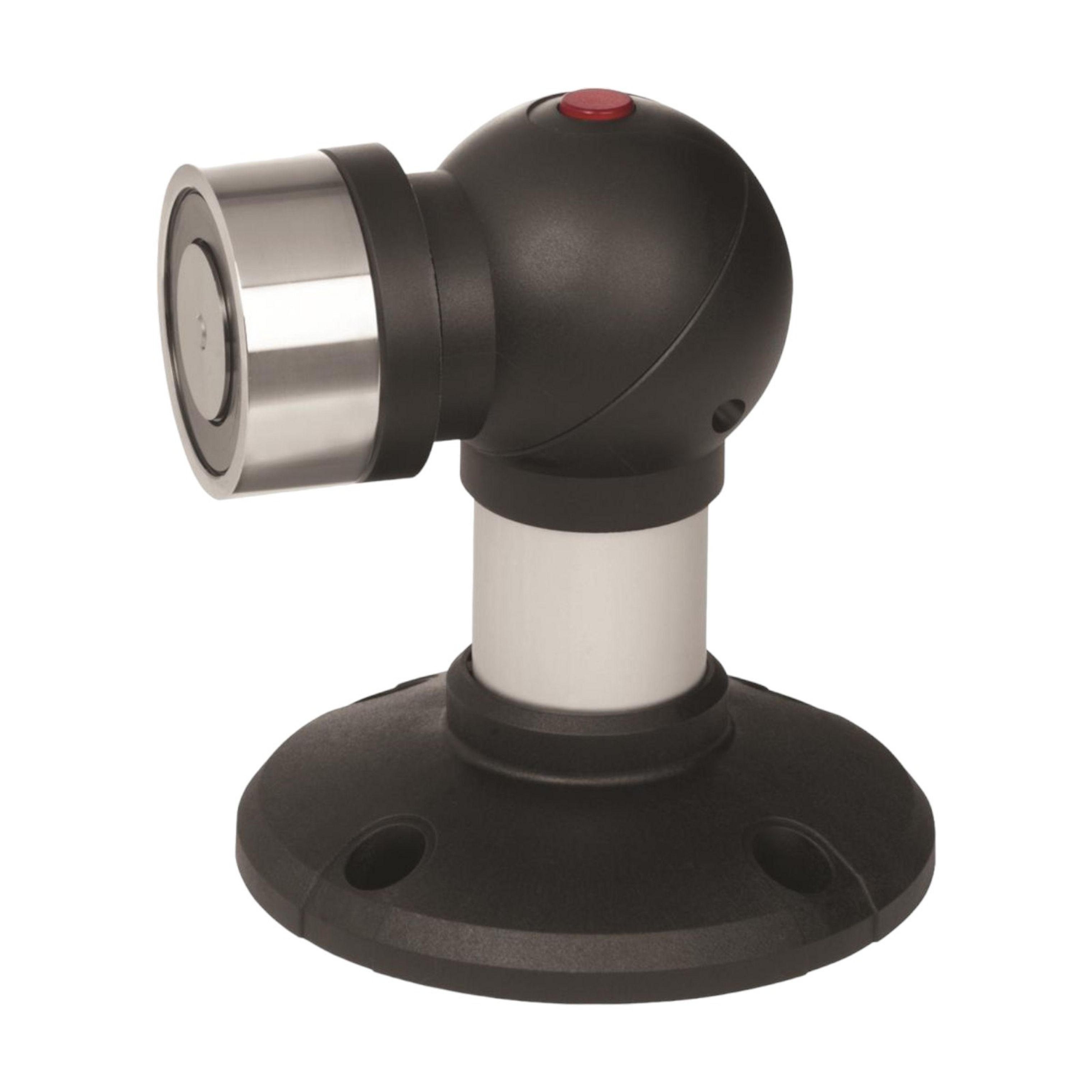

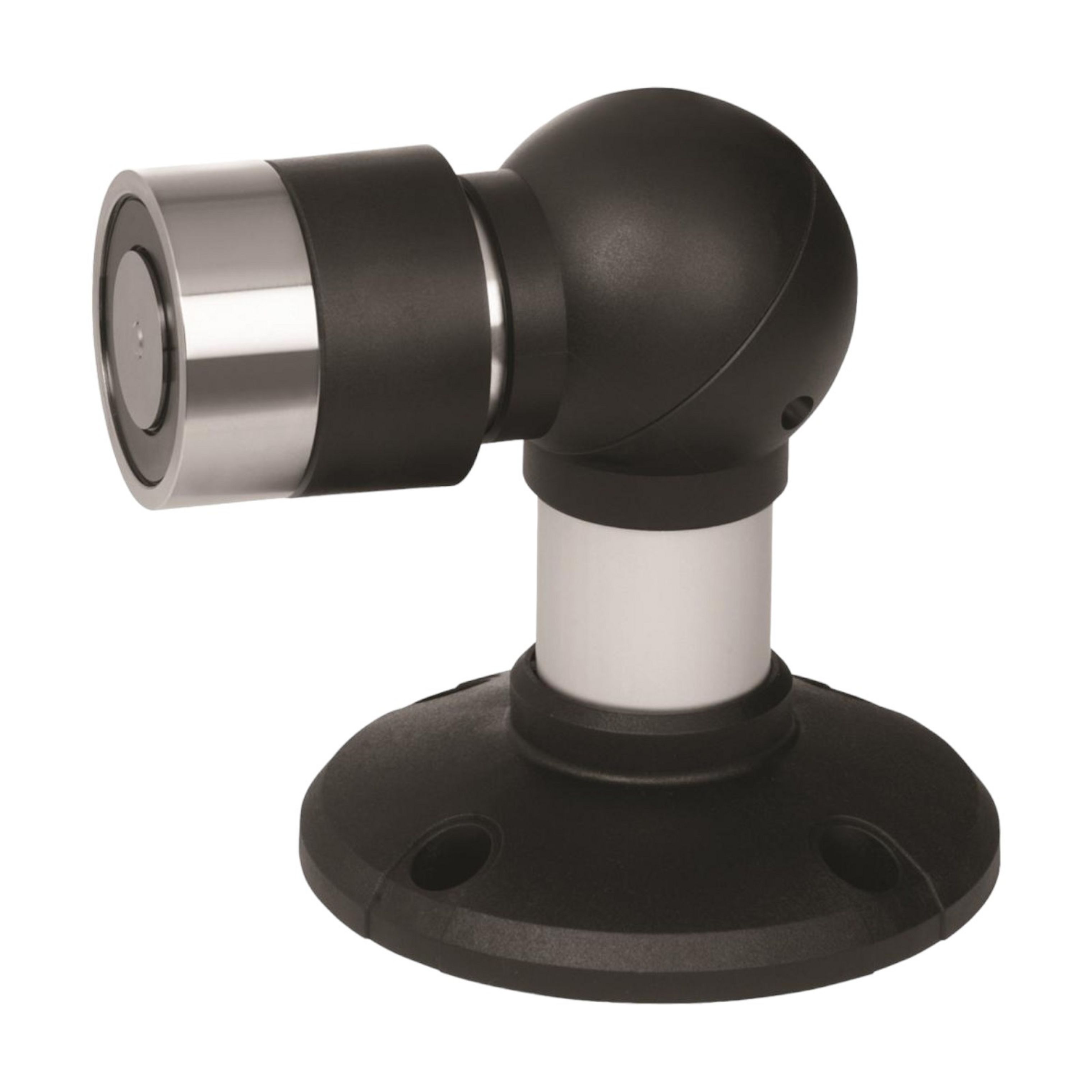

Lockwood EM800 Hold Open Swivel Bracket | Integrated Interrupter | 150 kg Holding Force | Silent Operation | by Lockwood
The Lockwood EM800 Hold Open Swivel Bracket is designed for both fire and non-fire doors, featuring an integrated interrupter push button and a holding force of 150 kg. Ideal for applications requiring reliable door hold open functionality, this bracket ensures silent operation with its soft close shock absorbers. Perfect for professional installations, it supports fire safety systems and reduces energy waste by holding doors open only when necessary.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lockwood EM800 Hold Open Swivel Bracket | Integrated Interrupter | 150 kg Holding Force | Silent Operation | by Lockwood
Brand: Lockwood
SKU: EMHOB-2
Alternatively Known As: Hold Open Door Bracket, Fire Door Hold Open Device, Swivel Door Holder
Technical Specifications
- Wall & Floor Mount: Yes
- Integrated Interrupter push-button: Yes
- Shock Absorber: Yes
- Holding Force: 150 kg
- Voltage: 24vDC
- Current: 20mA
- Operating Temperature: 0-50°C
- Floor Spacing: 110mm
- Wall Spacing: 215mm
- Continuous Duty: 100% ED
- Dimensions (H x L x W): 150mm x 215mm x 50mm
- Weight: 1.5 kg
Key Features
- Can work standalone or integrated with fire detection systems for automatic release
- Integrated interrupter push button for manual door operation
- Integrated soft close shock absorbers for silent operation
- Wall and floor mountable
- Holding force of 150 kg
- Continuous duty rated at 100% ED
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper integration with fire detection systems and optimal performance.
Applications
- Fire Doors that need to close upon fire signal
- Non Fire Doors that need to be held open
- Doors requiring hold open for several hours, e.g., with Cabin Hooks
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Reduces energy waste by holding doors open only when necessary
- Supports fire safety systems to prevent fire spread
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Lockwood EM800 Hold Open Swivel Bracket is available now for immediate purchase. Ideal for fire and non-fire door applications requiring reliable hold open functionality.
