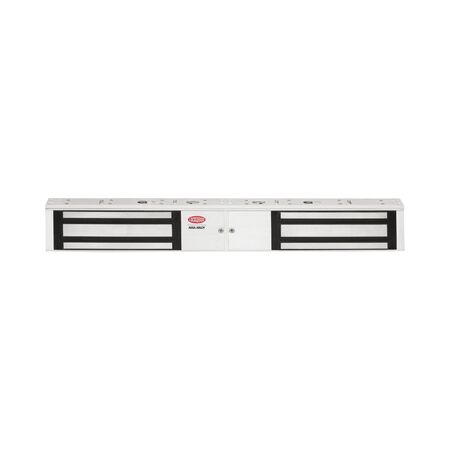

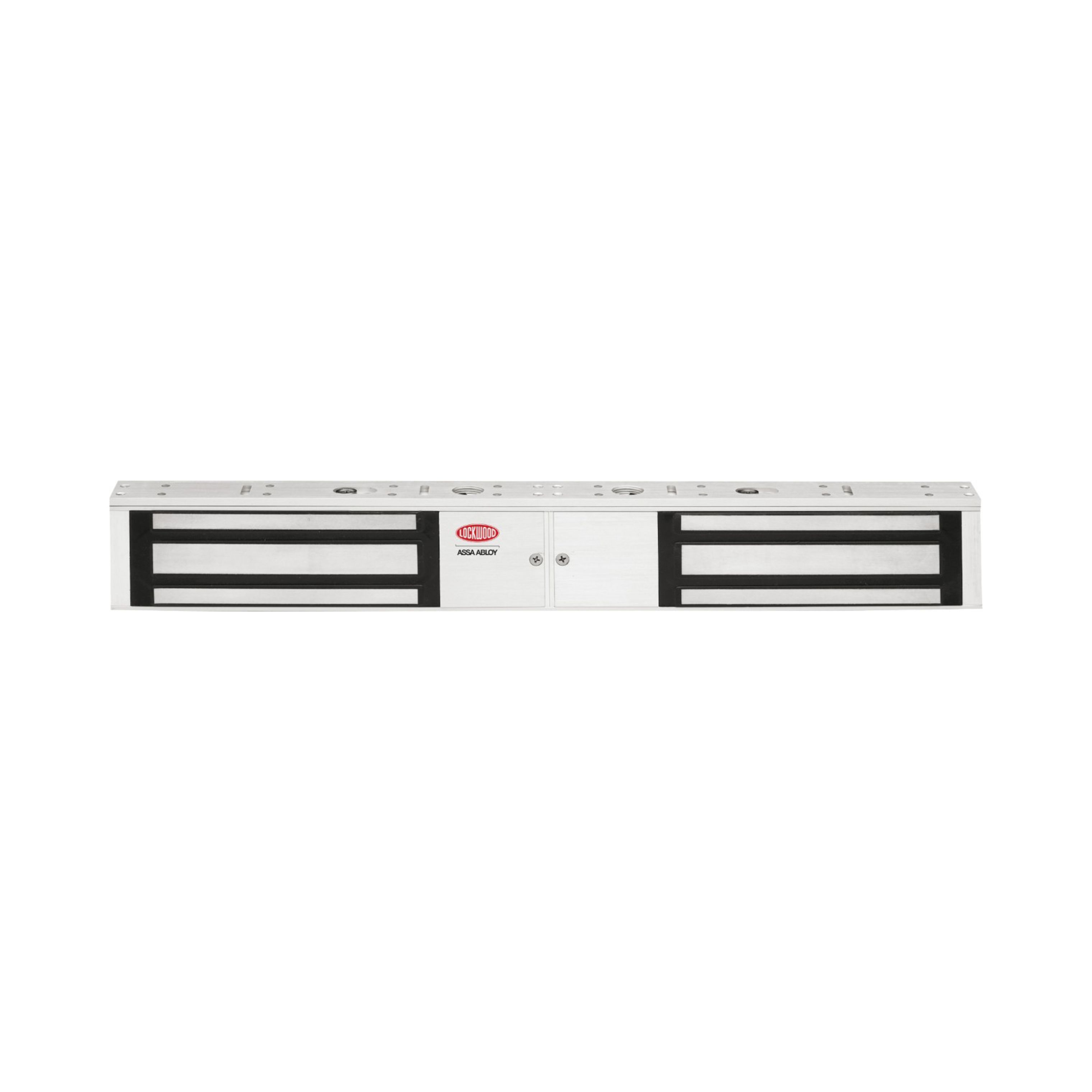

Lockwood EMZ8 Double Maglock Monitored | 900kg Holding Force | Fail-Safe Operation | @Each by Lockwood
The Lockwood EMZ8 Double Maglock Monitored is designed for high-security access control, featuring a robust 900kg holding force and monitored operation with Hall-Effect/Bond sensing. Ideal for commercial swing doors, this maglock ensures fail-safe operation and is constructed with durable aluminum for longevity, making it perfect for high-use environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lockwood EMZ8 Double Maglock Monitored | 900kg Holding Force | Fail-Safe Operation | @Each by Lockwood
Brand: Lockwood
SKU: EMZ8-DM
Alternatively Known As: Double Electromagnetic Lock, EMZ8 Maglock, Monitored Maglock, 12V/24V Maglock
Technical Specifications
- Nominal Holding Force: 900kg
- Dimensions: 532mm (L) x 72mm (H) x 40mm (D)
- Voltage: 12Vdc/24Vdc ±10%
- Current: 1024mA @ 12Vdc, 512mA @ 24Vdc
- Monitoring: Hall-Effect/Bond sensing and Reed Switch
- Operating Temperature: -10 to 55°C
- Operating Humidity: 0 - 95%
- Fail-safe mode operation with smart electronics for zero residual magnetism
- Dimensions (H x L x W): 72mm x 40mm x 532mm
- Weight: 3.5 kg
Key Features
- Double series electromagnetic lock with holding forces from 400kg to 900kg
- Monitored with Hall-Effect/Bond sensing and integrated reed switch for door position
- Fail-safe operation mode requiring secondary lock or battery backup
- Constructed with aluminium base and heavy duty electromagnet
- Smart electronics with zero residual magnetism for instantaneous release
Professional Installation Requirements
- Professional installation by a qualified security systems technician or electrician is required to ensure proper monitoring and fail-safe operation.
Applications
- Access control for commercial swing doors
- Wood, aluminium, steel, and glass door installations
- High use commercial and security doors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy efficient electromagnetic locking system reducing power consumption
- Durable aluminium construction extends product lifespan, reducing waste
Warranty Information
5 years warranty covering manufacturing defects and performance reliability.
Available Now
The Lockwood EMZ8 Double Maglock Monitored 12/24VDC is available for immediate purchase, ideal for commercial and high-security door applications.
