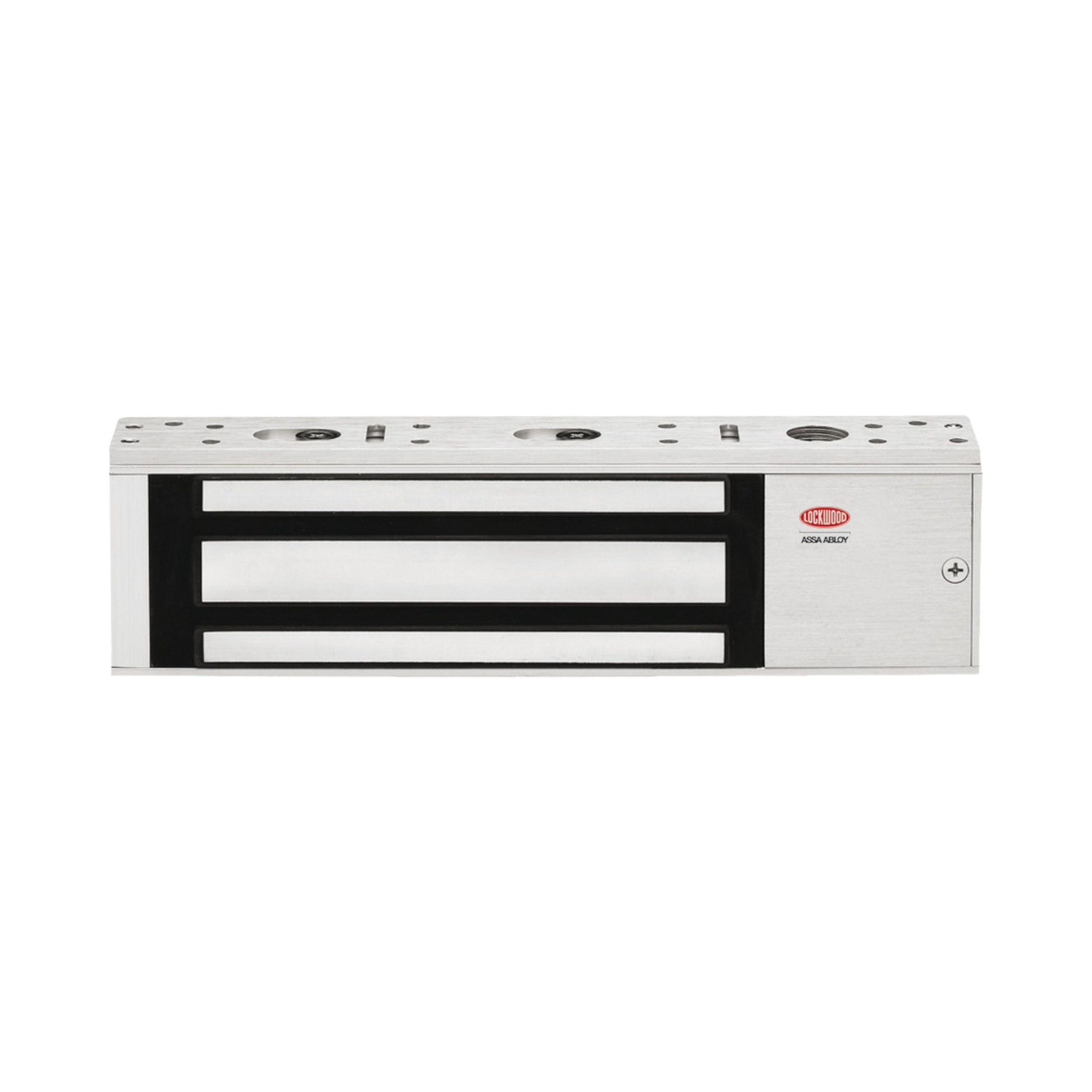

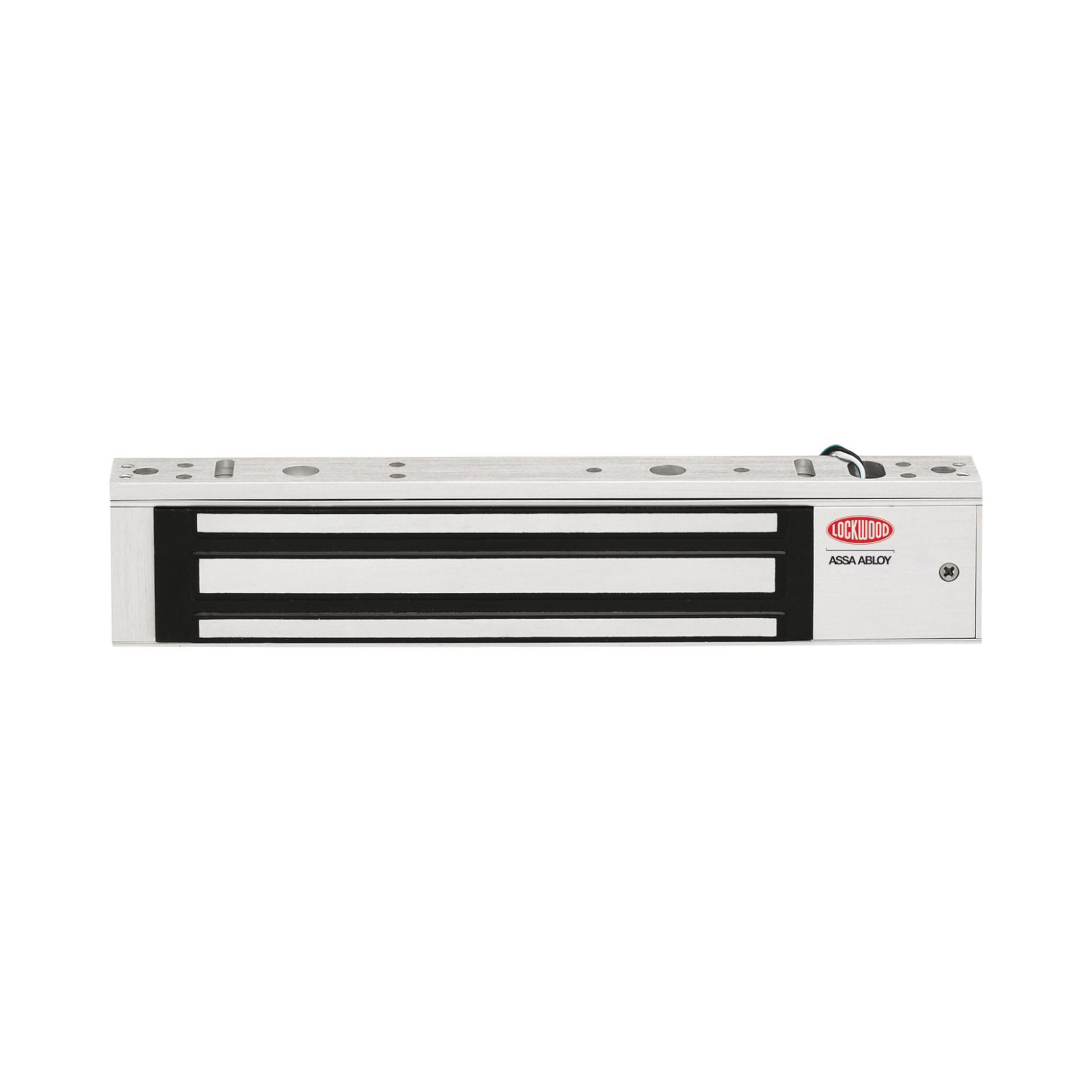

Lockwood EMZ8 Single Maglock | Monitored 12/24VDC | 450kg Holding Force | Fail-Safe Operation | by Lockwood
The Lockwood EMZ8 Single Maglock is a monitored electromagnetic lock designed for commercial and high-use swing doors. With a robust 450kg holding force and fail-safe operation, it ensures reliable security. Ideal for various door materials, this lock features Hall/Bond monitoring for enhanced safety and an integrated reed switch for door position monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lockwood EMZ8 Single Maglock | Monitored 12/24VDC | 450kg Holding Force | Fail-Safe Operation | by Lockwood
Brand: Lockwood
SKU: EMZ8-SM
Alternatively Known As: EMZ8 Maglock, Single Electromagnetic Lock, Monitored Maglock 12V/24V, Lockwood EMZ8 Lock
Technical Specifications
- Nominal Holding Force: 450kg
- Voltage: 12Vdc / 24Vdc ±10%
- Current: 512mA @ 12Vdc, 256mA @ 24Vdc
- Monitoring: Hall-Effect/Bond sensing and Reed Switch
- Operating Temperature: -10 to 55°C
- Operating Humidity: 0 - 95%
- Fail-safe operation mode with instantaneous release
- Aluminium case with heavy-duty electromagnet
- Dimensions (H x L x W): 72mm x 40mm x 266mm
- Weight: 2.5 kg
Key Features
- Single Series Electromagnetic Lock with holding forces from 200kg to 450kg
- Hall/Bond monitoring indicates lock power and armature plate bonding
- Integrated reed switch monitors door position separately
- Constructed with heavy-duty aluminium case and electromagnet
- Operates in fail-safe mode with zero residual magnetism for instantaneous release
- Magnet armature plate may pivot to accommodate door drop
Professional Installation Requirements
- Professional installation by a qualified security systems technician or electrician is recommended to ensure correct wiring, monitoring setup, and fail-safe operation.
Applications
- Commercial and high-use swing doors
- Wood, aluminium, steel, and glass door installations
- Fail-safe security locking systems requiring monitored electromagnetic locks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient electromagnetic locking reduces power consumption compared to mechanical locks
- Durable aluminium construction extends product lifespan, reducing waste
Warranty Information
5 year warranty covering manufacturing defects and performance reliability.
Available Now
The Lockwood EMZ8 Single Monitored Maglock 12/24VDC is available for immediate purchase, ideal for commercial and high-use door security applications.
