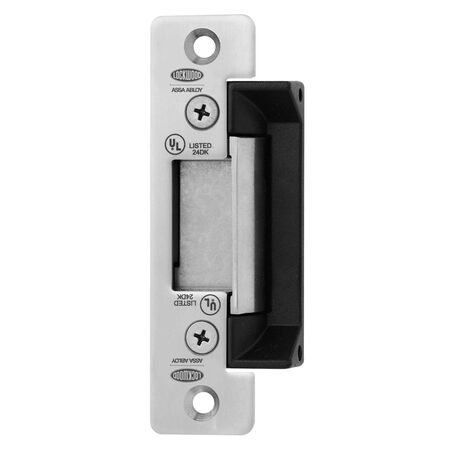

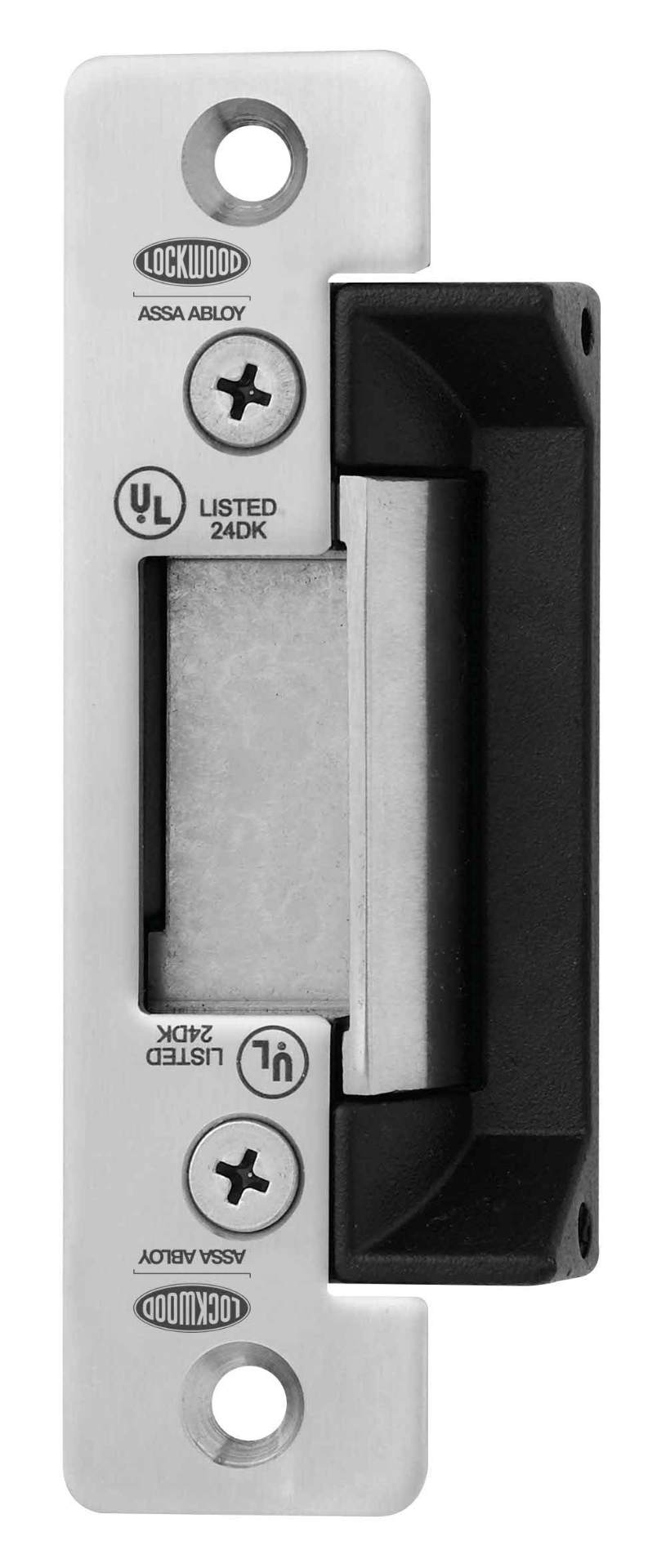

LOCKWOOD ES110 Fail Safe Electric Strike | IP56 Weather Resistant | 680 kg Holding Force | by Dicker Data
The LOCKWOOD ES110 Fail Safe Electric Strike is designed for secure access control, featuring a robust IP56 weather-resistant construction and a powerful 680 kg holding force. Ideal for both commercial and residential applications, this electric strike ensures reliable operation with a cycle tested endurance of 1,000,000 operations, making it perfect for fire door assemblies and high-traffic areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOCKWOOD ES110 Fail Safe Electric Strike | IP56 Weather Resistant | 680 kg Holding Force | by Dicker Data
Brand: Dicker Data
SKU: ES110-1M
Alternatively Known As: Electric Strike Lock, Fail Safe Electric Strike, Non Monitored Electric Strike, Access Control Strike, IP56 Electric Strike
Technical Specifications
- Voltage: 12Vdc and 24Vdc
- Current: 250 mA @ 12Vdc, 125 mA @ 24Vdc
- Solenoids rated for continuous use
- Monitoring: None
- Holding Force: 680 kg static strength rating
- Endurance: Cycle tested to 1,000,000 operations
- Latch Compatibility: Suitable for 15mm latch bolt with 3mm door gap
- Operational Temperature Range: -20°C to +60°C
- Weather Resistance: IP56
- Body Material: Cast Aluminium
- Keeper Material: Stainless Steel
- Fire Rating: Up to 4 hours on fire door assemblies per AS1905.1.2005

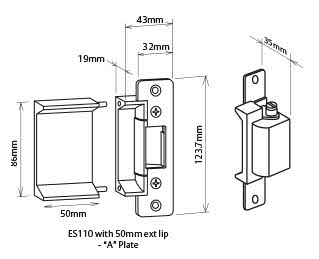

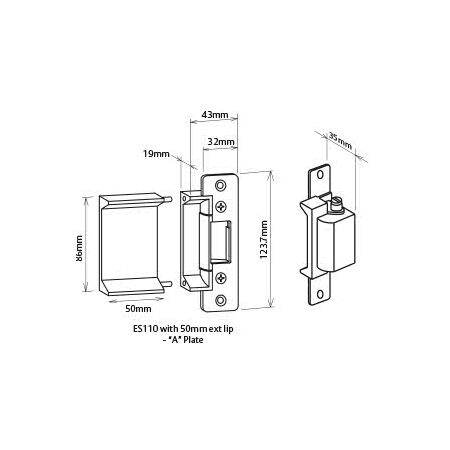

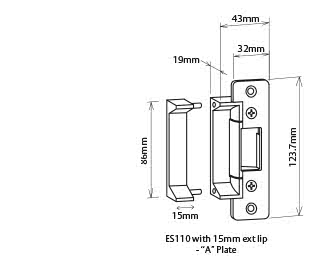

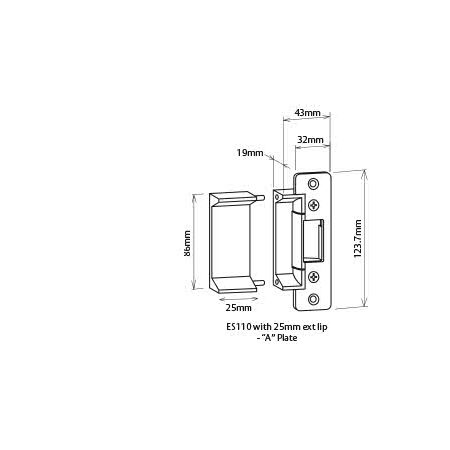

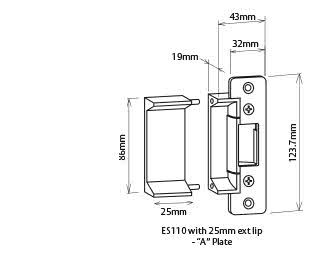

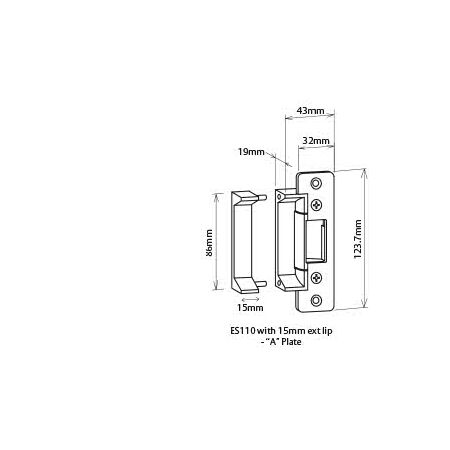

- Dimensions (H x L x W): 40mm x 25mm x 120mm
- Weight: 1.5 kg
Key Features
- Robust one-piece cast aluminium body with stainless steel striker
- Deeper strike-keeper area for compatibility with a wide range of locks
- Weather resistant construction with IP56 rating
- Cycle tested to 1,000,000 operations for high endurance
- Holding force of 680 kg static strength rating
- Suitable for 15mm latch bolt with 3mm door gap
- Fail safe operation with 12Vdc and 24Vdc voltage options
- Solenoids rated for continuous use
- Successfully fire rated up to 4 hours on fire door assemblies
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure compliance with fire safety and access control standards.
Applications
- Access control installations requiring flexible, secure, and cost-effective electric strikes
- Suitable for use with fire door assemblies
- Commercial and residential door security systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Fire rating in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy efficient solenoids rated for continuous use
Warranty Information
TRICARE® 5 Year Warranty
Available Now
The LOCKWOOD ES110 12/24VDC Fail Safe Non Monitored Electric Strike is available for immediate purchase, ideal for secure access control and fire door applications.
