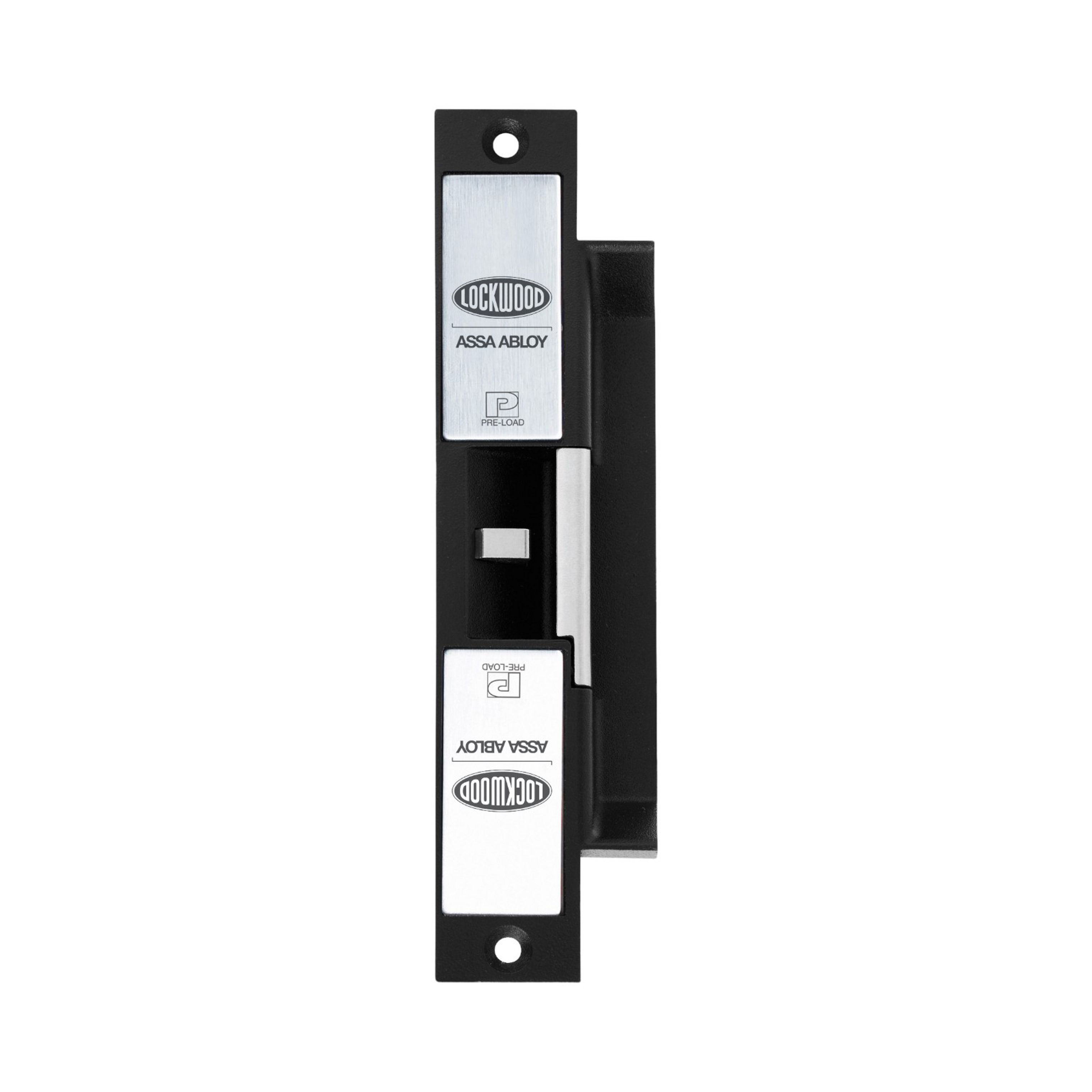

LOCKWOOD ES200/2000 25MM Extension Lip | 1300kg Holding Force | Multi-Voltage Operation | by Lockwood
The LOCKWOOD ES200/2000 25MM Extension Lip is designed for enhanced security in commercial doors, featuring a robust 1300kg holding force and multi-voltage operation from 10-30Vdc. Ideal for doors under pre-load conditions, this premium locking solution ensures durability with over 2 million tested cycles, making it perfect for fire doors and those affected by differential air pressure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOCKWOOD ES200/2000 25MM Extension Lip | 1300kg Holding Force | Multi-Voltage Operation | by Lockwood
Brand: Lockwood
SKU: 220200-505
Alternatively Known As: Electric Strike Extension Lip, Lockwood Door Extension Lip, ES2000 Extension Lip
Technical Specifications
- Voltage: 10 - 30Vdc
- Current: 250mA @12Vdc, 130mA @24Vdc
- Solenoids rated for continuous use
- Electrical protection: Polarity and back EMF protected
- Monitoring: Solenoid Monitor - 1 amp NO/NC microswitch; Door / Latch Monitor - 1 amp NO/NC microswitch
- Holding force: 1300kg static strength rating
- Endurance: 1,200,000 cycles @ 25kg pre-load; 2,500,000 cycles general durability without pre-load
- Latching: Suitable for 15mm latch with 3mm door gap
- Operational temperature range: -20°C to +60°C
- Body: Solid Stainless Steel Construction
- Keeper: Stainless Steel
- Dimensions (H x L x W): 25mm x 100mm x 40mm
- Weight: 1.5 kg
Key Features
- Operates with up to 25kg of pre-load pressure on the keeper
- Multi voltage 10 - 30Vdc with field changeable settings from fail safe to fail secure
- Tested in excess of 2 million cycles for durability
- Premium locking solution with unique features not available elsewhere
Professional Installation Requirements
- Professional installation by a qualified locksmith or security systems installer is recommended to ensure proper functionality and compliance with safety standards.
Applications
- Commercial doors requiring enhanced locking solutions
- Doors with pre-load pressure conditions such as warped or drooping doors
- Fire doors with seals and doors affected by differential air pressure
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces the need for frequent replacements
- Long endurance rating minimizes waste and supports sustainable use
Warranty Information
Standard manufacturer warranty applies. Please refer to Lockwood for detailed warranty terms.
Available Now
The Lockwood ES200/2000 25mm Extension Lip (40.5mm total) is available now for immediate purchase. Ideal for commercial door security applications requiring enhanced locking performance under pre-load conditions.
