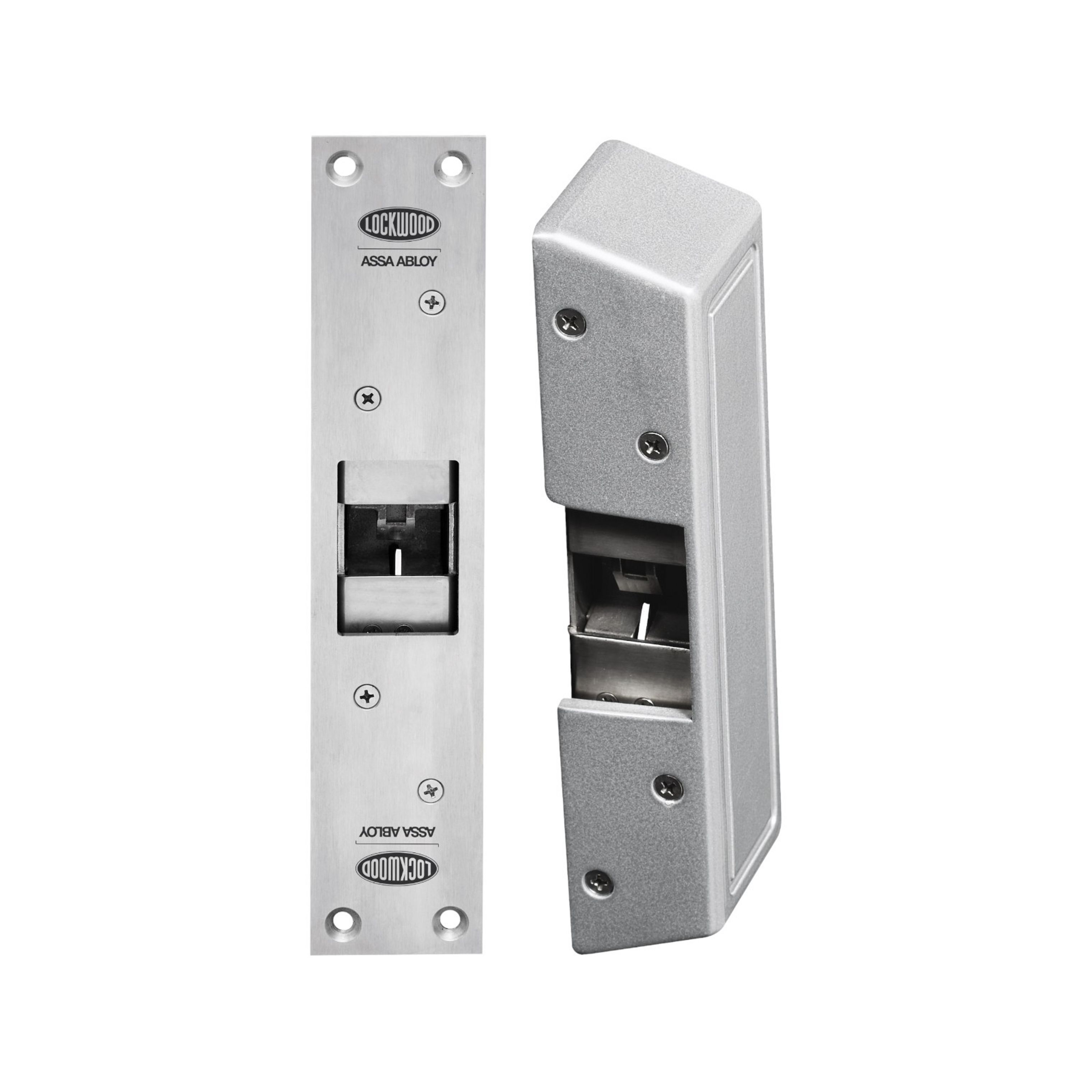

Lockwood ES6000 Hook Lock Mortice | 12/24VDC Fail Secure | Monitored Design | 5-Year Warranty | by Lockwood
The Lockwood ES6000 Hook Lock Mortice is designed for robust security, featuring a fail secure monitored system with a high holding force of 680 kg. Ideal for both commercial and residential applications, this lock operates on 12/24VDC and boasts a 5-year warranty, ensuring reliability and peace of mind. Its durable construction and energy-efficient operation make it a perfect choice for fire applications, providing self-latching ability without power.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lockwood ES6000 Hook Lock Mortice | 12/24VDC Fail Secure | Monitored Design | 5-Year Warranty | by Lockwood
Brand: Lockwood
SKU: ES6000M-2
Alternatively Known As: ES6000 Hook Lock, Mortice Hook Lock, Fail Secure Hook Lock, Monitored Hook Lock
Technical Specifications
- Supply Voltage: 12-30Vdc Ground (0V)
- Current: 12Vdc - 250 mA after 1 sec (initial 830 mA), 24Vdc - 140 mA after 1 sec (initial 530 mA)
- Monitoring: Door locked (Solenoid), Door Closed (Latch)
- Static Strength Rating: 680 kg
- Dynamic Strength Rating: 70 foot-lbs
- Pre-load Capability: 660 lbs (300 kg)
- Endurance: 500,000 cycles of operation
- Operational Temperature Range: -20°C to +60°C
- Lock Body: Cast Aluminium Construction
- Lock Bolt: Solid Stainless Steel
- Dimensions (H x L x W): 50mm x 100mm x 150mm
- Weight: 2.5 kg
Key Features
- Heavy duty design with high preload capability up to 300 kg
- High holding force up to 680 kg
- Up to 2 hour fire rating
- Available in both recess and surface mounted versions
- Recess mounted version with satin stainless steel faceplate
- Surface mounted version with cast aluminium cover available in various colours
- Can be mounted vertically and horizontally
- Self-latching ability without power for fire applications
- Multi voltage selection 12 - 30 Volts with back EMF protection for reverse polarity
- Internal testing achieved 500,000 cycles of operation
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure proper mounting and electrical connection.
Applications
- Suitable for swinging doors and sliding doors
- Can be attached to wood or steel door frames
- Fire applications with self-latching ability without power
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Energy efficient operation with low current consumption
Warranty Information
5 years warranty.
Available Now
The Lockwood ES6000 Hook Lock Mortice 12/24VDC Fail Secure Monitored is available for immediate purchase, ideal for commercial and residential security applications requiring high strength and fire rated locking solutions.
