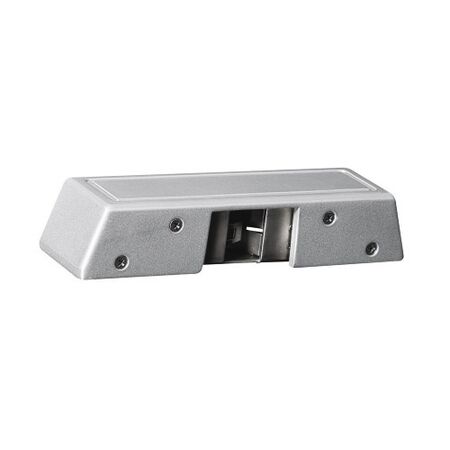

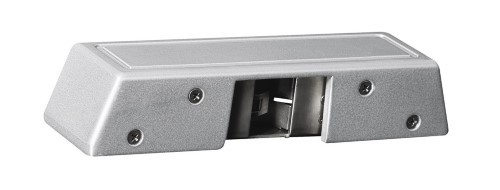

LOCKWOOD ES6000 Hook Lock Surface Mount | 680kg Holding Force | Fail Secure Design | Multi Voltage 12/24VDC | by LOCKWOOD
The LOCKWOOD ES6000 Hook Lock Surface Mount is engineered for heavy-duty security, featuring a robust 680kg holding force and fail secure design. Ideal for sliding and swinging door applications, it operates on multi-voltage 12/24VDC, ensuring versatility in various environments. With low current consumption and self-latching capabilities, this lock is perfect for high air pressure settings and fire safety compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOCKWOOD ES6000 Hook Lock Surface Mount | 680kg Holding Force | Fail Secure Design | Multi Voltage 12/24VDC | by LOCKWOOD
Brand: LOCKWOOD
SKU: ES6000S-2
Alternatively Known As: ES6000 Hook Lock, Surface Mount Hook Lock, Fail Secure Hook Lock, Electric Hook Lock
Technical Specifications
- High preload (side load) capability up to 300 kg
- Holding force up to 680 kg
- Fire rated up to 4 hours
- Power to Open and Power to Lock models available
- Automatic voltage selection 12 to 30Vdc
- Back EMF and reverse polarity protection
- Current consumption: 12VDC - 250mA after 1 sec (initial 830mA), 24VDC - 140mA after 1 sec (initial 530mA)
- Monitored locked and unlocked status
- Can be mounted vertically or horizontally
- Self-latching without power for fire applications
- Dimensions (H x L x W): 40mm x 50mm x 150mm
- Weight: 2.5 kg
Key Features
- Power to Open or Power to Lock versions available
- Side Load (Pre-Load) Capable: Operates freely with up to 300 kg of side pressure
- Self Latching: Will self latch without power for fire applications
- 680kg holding force
- Robust Construction: Stainless steel components used
- Low Profile: Will protrude only 40mm into door headroom
- Multi Voltage: Automatic selection 12 to 30Vdc with back EMF protection and reverse polarity protection
- Multi Orientation: Can be mounted vertically or horizontally
- Low Current Consumption
- Monitored: locked and unlocked
- Tested to the 300kg preload capability
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure proper mounting and electrical connection.
Applications
- Heavy Duty Applications
- Sliding & Swing door applications
- High Air Pressure Environments (High Pre Load rating)
Standards & Compliance
- Complies with AS/NZS 1905.1 – Fire resistant door sets
Environmental Benefits
- Low current consumption reduces energy usage.
- Durable construction extends product lifespan, reducing waste.
Warranty Information
5 years warranty.
Available Now
The LOCKWOOD ES6000 Hook Lock Surface Mount Fail Secure 12/24VDC 5YR is available now for immediate purchase. Ideal for heavy duty sliding and swinging door security applications.
