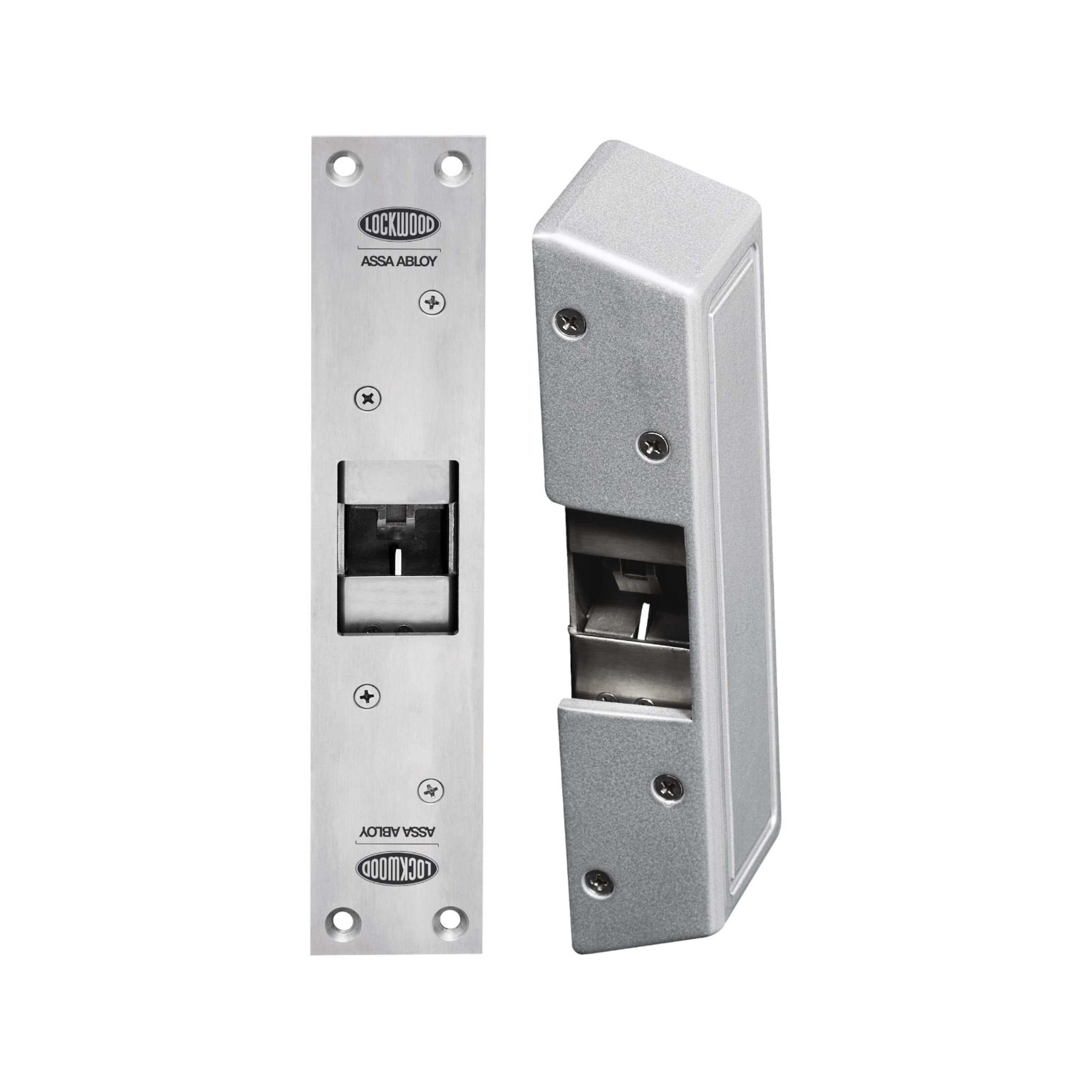

Lockwood ES6000 Hook Lock | Surface Mount | Fail Secure | Monitored | 12/24VDC | by Lockwood
The Lockwood ES6000 Hook Lock is a heavy-duty surface mount lock designed for fail secure applications, operating on 12/24VDC. With a high holding force of 680 kg and a preload capability of 300 kg, it's perfect for swinging and sliding doors in commercial settings. This monitored lock ensures security with door locked and closed indicators, making it ideal for fire applications and providing peace of mind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lockwood ES6000 Hook Lock | Surface Mount | Fail Secure | Monitored | 12/24VDC | by Lockwood
Brand: Lockwood
SKU: ES6000S-2
Alternatively Known As: ES6000 Hook Lock, Surface Mount Hook Lock, Fail Secure Hook Lock, Monitored Hook Lock
Technical Specifications
- Supply Voltage: 12-30Vdc Ground (0V)
- Current: 12Vdc - 250 mA after 1 sec (initial 830 mA), 24Vdc - 140 mA after 1 sec (initial 530 mA)
- Monitoring: Door locked (Solenoid), Door closed (Latch)
- Static Strength Rating: 680 kg
- Dynamic Strength Rating: 70 foot-lbs
- Endurance: 500,000 cycles of operation
- Pre-Load Capability: 660 lbs (300 kg)
- Operational Temperature Range: -20°C to +60°C
- Lock Body: Cast Aluminium Construction
- Lock Bolt: Solid Stainless Steel
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 2.5 kg
Key Features
- Heavy duty design with high preload capability up to 300 kg
- High holding force up to 680 kg
- Up to 2 hour fire rating
- Available in both recess and surface mounted versions
- Surface mounted version has cast aluminium cover available in various colours
- Can be mounted vertically or horizontally
- Monitored for door locked (solenoid) and door closed (latch)
- Multi voltage selection 12 - 30 Volts with back EMF protection for reverse polarity
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure proper mounting and electrical connections.
Applications
- Suitable for swinging doors and sliding doors
- Can be attached to wood or steel door frames
- Ideal for fire applications with self-latching ability without power
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Energy efficient operation with low current consumption
Warranty Information
5 years warranty.
Available Now
The Lockwood ES6000 Hook Lock Surface Mount Fail Secure Monitored 12/24VDC is available now for immediate purchase. Ideal for commercial and industrial door security applications.
